Micromod MOD: Modcell 2050R Users Guide User Manual
Page 12
IB-23C650
INTRODUCTION
6
Notes:
1. When mounting housing in panel cutout or rack and panel mounting
bezel, turn retaining screws until point of screw touches rear of panel or
bezel. Overtightening of retaining screws will distort housing. Housing
must be square after retaining screws are tightened.
2. MODCELL 2051R does not use the gasket and has a bezel width of
2.735” (69.47 mm). The panel cutout may be for the 2050R

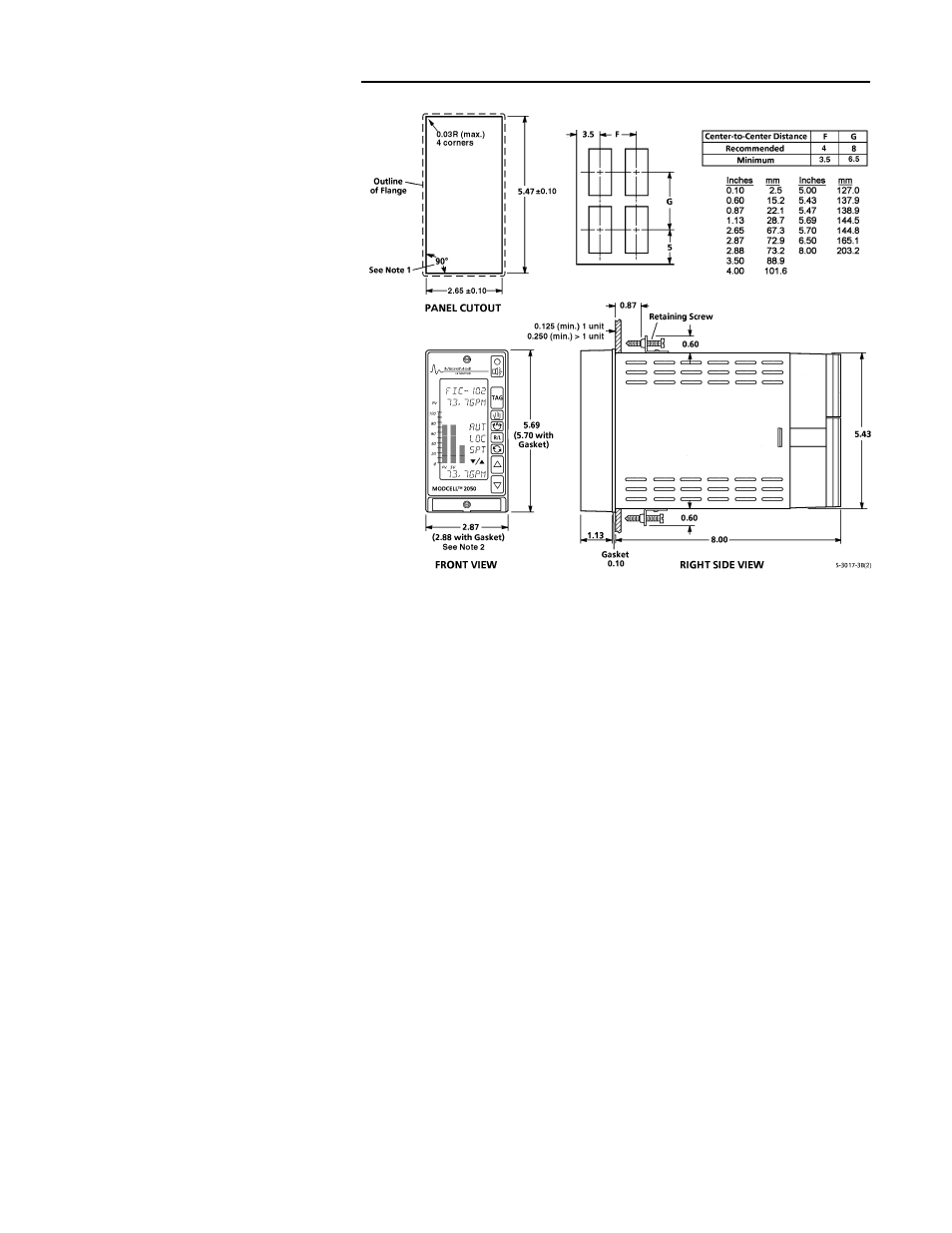

Figure 1. Mounting Dimensions. 2050R and 2051R
