IB-23C650

BASIC OPERATION

OPERATION IN MANUAL

This section describes operations for local set-points, remote or multiple set-
points, and A/M ratio bias while the controller is in the manual mode. For
manual ramp/soak and totalizer operations, refer to those operations sections.

Manual Operation with Local Set-Points

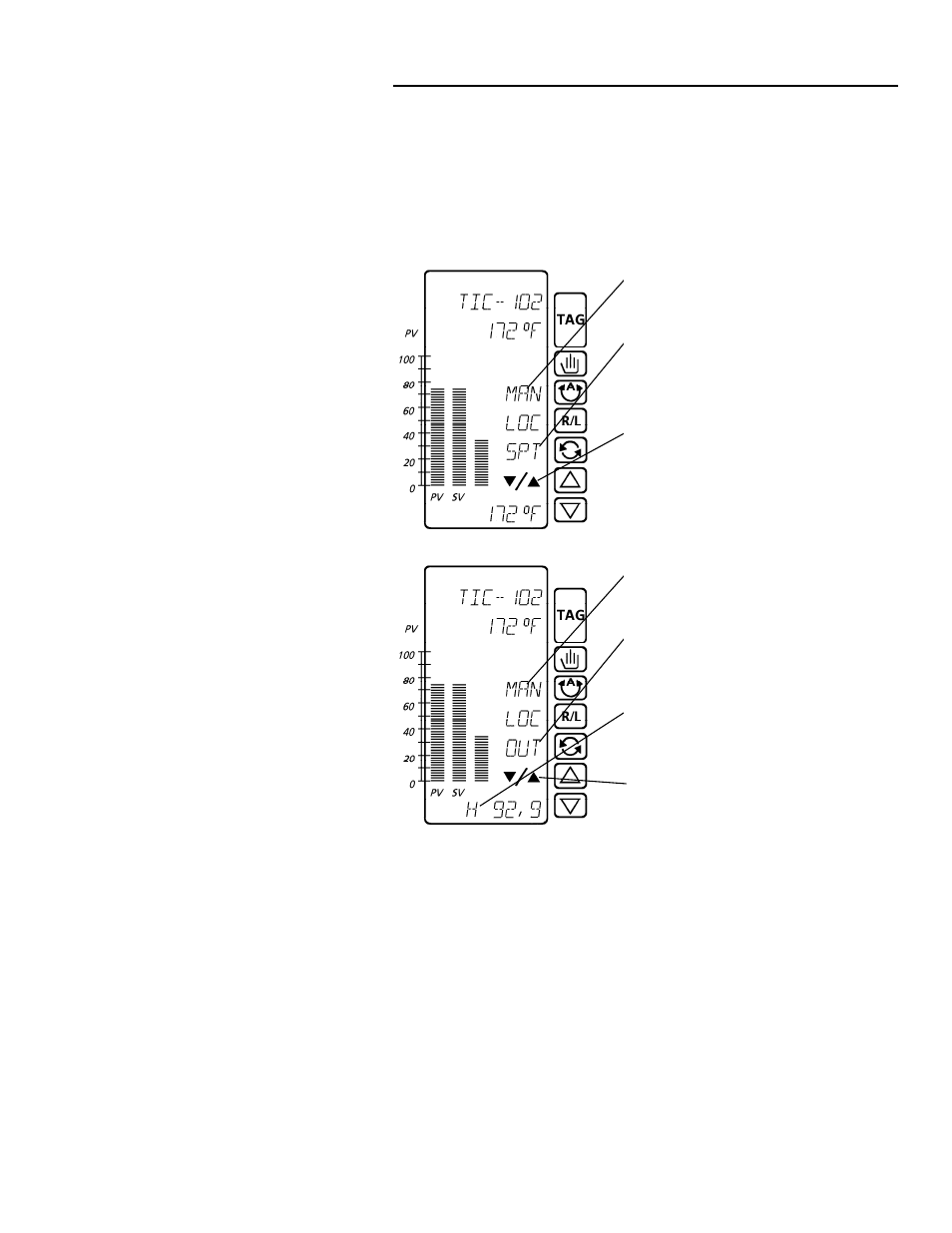

The instrument is initially in manual mode with set-point displayed in the lower
engineering display, as indicated by [SPT] in the third status display.

[MAN] indicates that the controller is in
manual mode.

Bottom status display indicates lower
engineering display is showing the
current set-point and its engineering
units label.

status display indicates the

and

keys are active and can be

used to adjust the set-point value.

1) Press the scroll key to display the
output in percent in the lower
engineering display.

[OUT] appears in the third status
display.

H or C indicates Heat or Cool if
controller was configured for heat/cool
operation.

status display indicates the

and

keys are active and can be

used to adjust the output value in
manual.

138
