RFC 2544
88 AXS-200/850
Latency Results
Latency Results

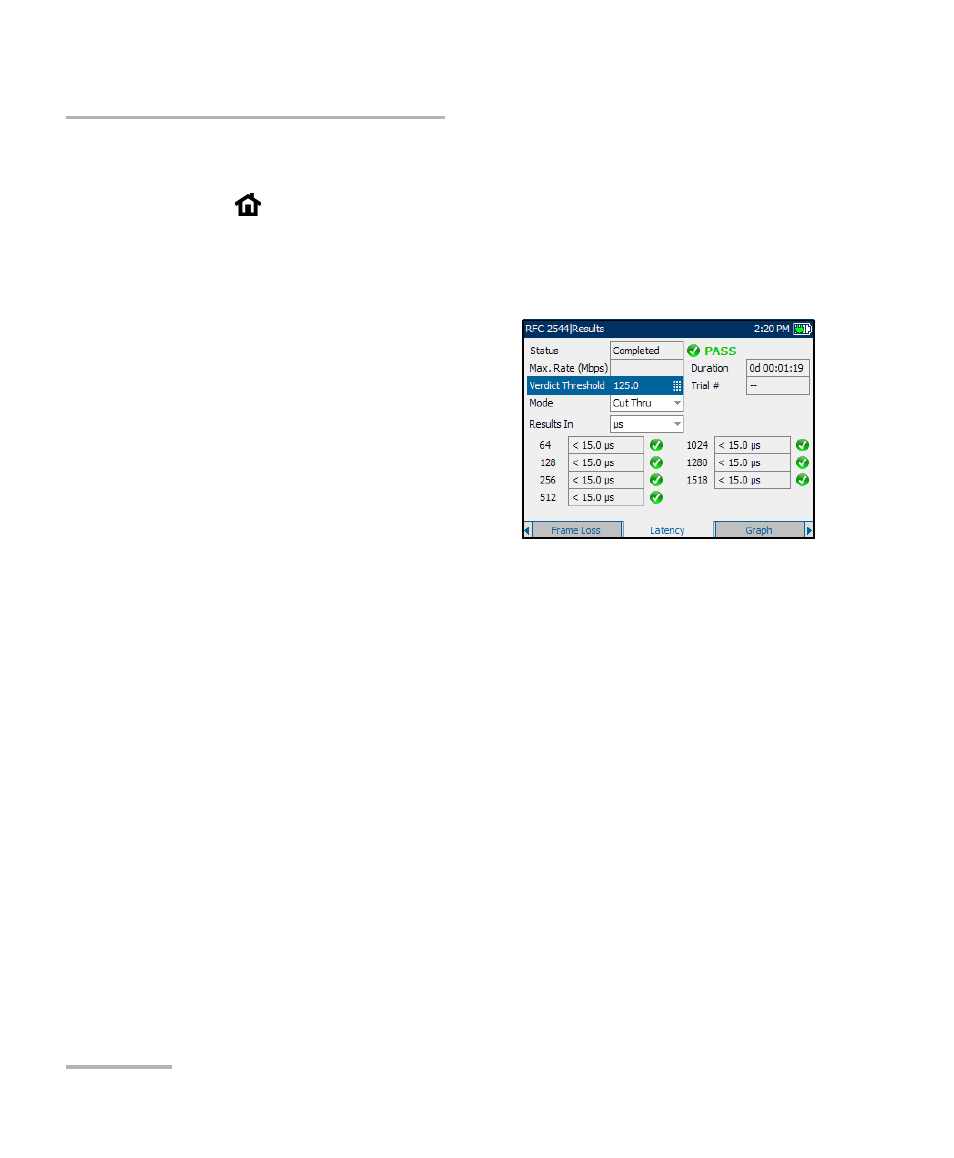

Press , select RFC 2544, Results, and the Latency tab.
Note: This page is not available when the Dual Test Set parameter is set to
Remote in Global Configuration on page 58
³
Status: Displays the test status as
“--”, In Progress, Completed, or
Aborted. Once the Latency test is
completed or stopped, the
Pass/Fail verdict is displayed,
when enabled.
³
Max. Rate: Displays the configured
value of maximum rate in Mbps or
%.
³
Duration: Displays subtest duration in D HH:MM:SS format.
³
Threshold: The latency Pass/Fail threshold can be configured at all
times in ms. When the value is changed, the verdict of the subtest gets
re-evaluated and updated.
³
Trial #: Displays the number of the current trial.
³
Mode: The latency results can be expressed in either Cut-Through or
Store and Forward (S&F) mode. The default setting is Cut-Through.
Cut-Through (Bit Latency) allows the calculation of the propagation
time of a bit and S&F (Frame Latency) allows the calculation of the
propagation time of a frame.
Note: S&F (Frame Latency) is not applicable when the Dual Test Set parameter
is set to Local.
