Cable Test Results - Delay/Length
Cable Test Results - Delay/Length
The cable test result Delay/Length tab gives the propagation delay and
cable length for each pair. The Pass/Fail verdict is also displayed for
propagation delay and cable length (when enabled).
Note: Cable test is only available when the Transceiver Mode is set to Electrical
(Refer to Port on page 34).

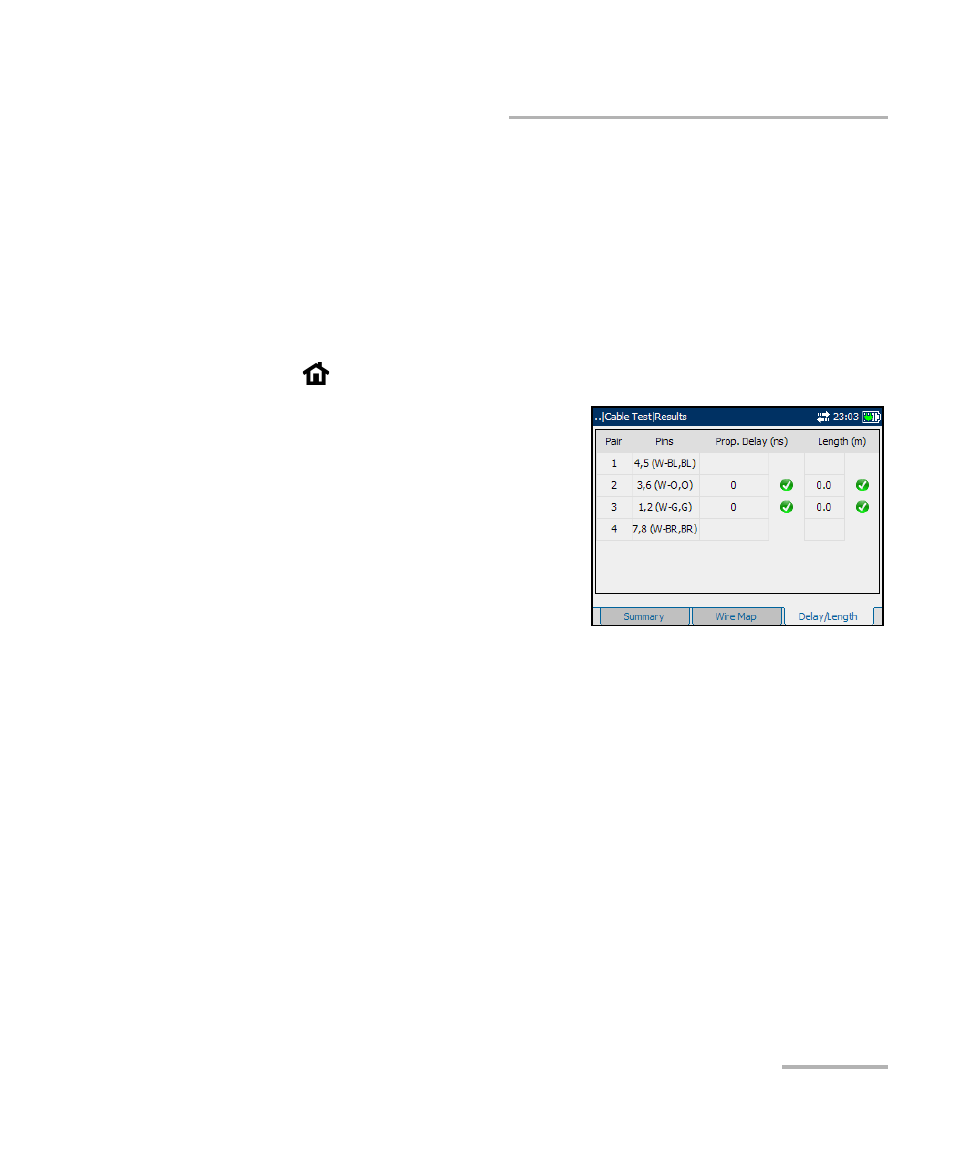

Press , select Tools, Results, and the Delay/Length tab.
³
Pair: Indicates the pair number.
³
Pins: Indicates the pair’s pin
numbers and color of each wire
corresponding to the selected
wiring standard (see page 197).
W-BL = White-Blue
BL = Blue
W-O = White-Orange
O = Orange
W-G = White-Green
G = Green
W-BR = White-Brown
BR = Brown
