Cable Test Results - Summary
Cable Test Results - Summary
The cable test result Summary tab gives the cable test status and Pass/Fail
verdict, when enabled. The worst pair’s Wire Map, Prop. Delay, Delay
Skew, and Length results are also displayed with the Pass/Fail verdict
(when enabled).
Note: Cable test is only available when the Transceiver Mode is set to Electrical
(Refer to Port on page 34).

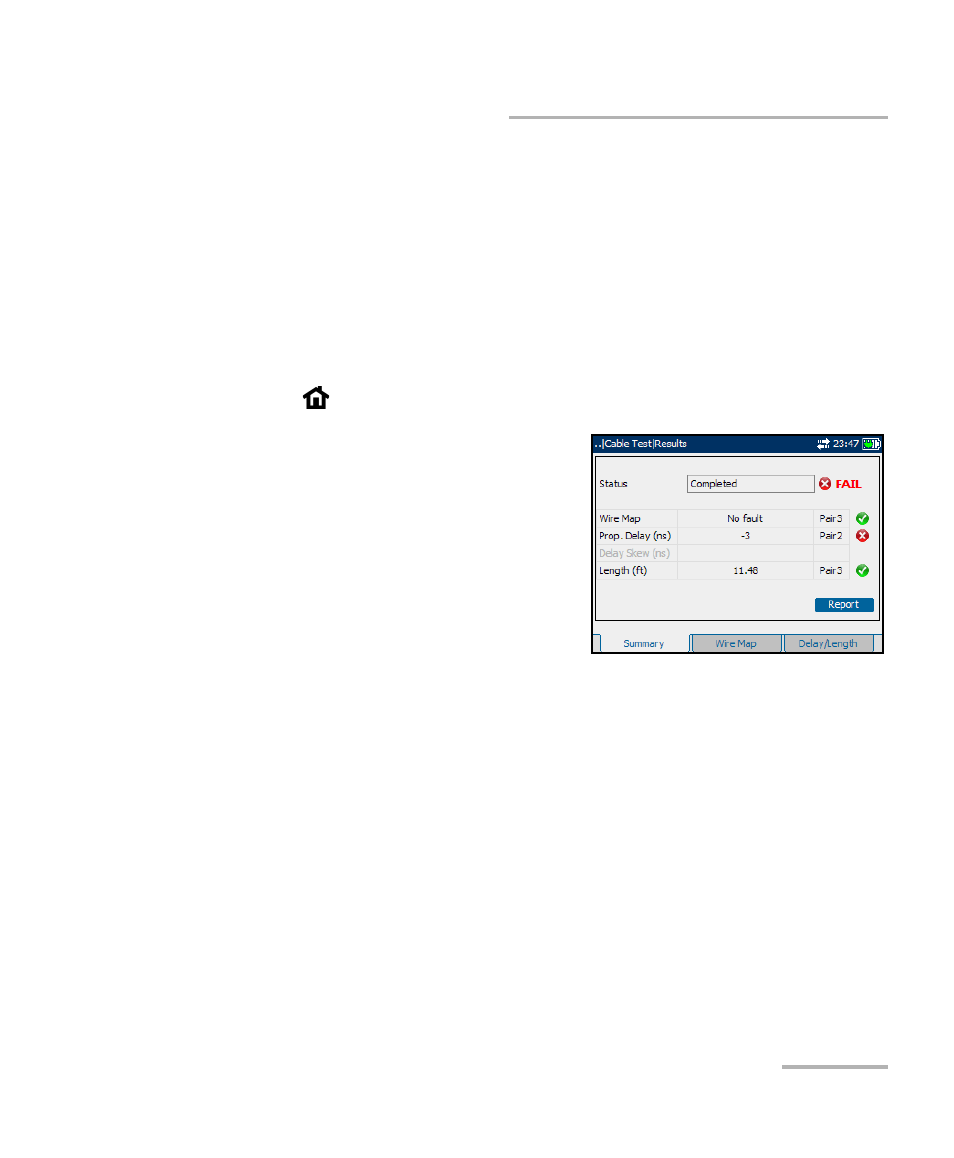

Press , select Tools, Results, and the Summary tab.
³
Status: The progress Status of the
cable test is indicated as follows:
³
Idle (test has not started)
³
In Progress
³
Completed
The Pass/Fail verdict is displayed,
when enabled, once the cable test
is completed. If the worst Wire
Map, Prop. Delay, Delay Skew, and Length Pass/Fail verdict are all
PASS, the test is declared as PASS. If one of the Wire Map, Prop. Delay,
Delay Skew, and Length Pass/Fail verdict is FAIL, the test is declared as
FAIL.
Wire Map: Indicates the Wire Map result for the pair having the worst
Wire Map. The distance to fault is also displayed when a fault is
identified. The Pass/Fail verdict is also displayed when enabled. See
Cable Test Results - Wire Map for more details. For details on Pass/Fail
verdict, see page 204.
Prop. Delay (ms): Indicates the propagation delay value for the pair
having the longest propagation delay. The Pass/Fail verdict is also
displayed when enabled. See Cable Test Results - Delay/Length on
page 205 for more details.
