Traffic Generation & Monitoring
Ethernet Test Set 125
Global Configuration
Global Configuration
The Global page allows configuring the main stream properties and global
test parameters such as duration and rate unit.

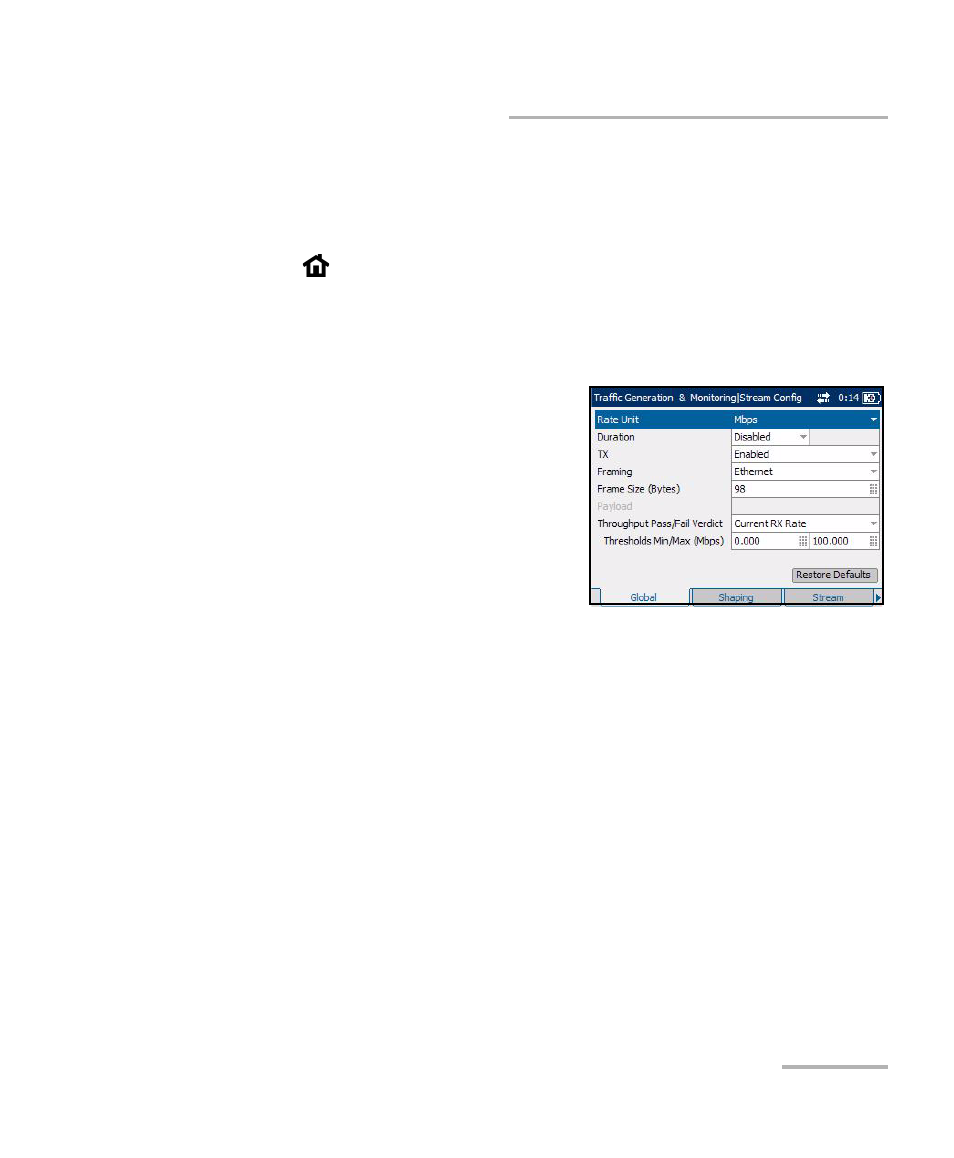

Press , select Traffic Generation & Monitoring, Stream Config, and
the Global tab.
³
Rate Unit: Select the unit for the transmission and receive rate.
Choices are Mbps and %. The default setting is Mbps.
³
Duration: Set the duration of the
test. The choices are as follows:.
³
15-Min
³
1-Hour
³
2-Hours
³
4-Hours
³
6-Hours
³
12-Hours
³
24-Hours
³
User Defined
³
Disabled: Runs the test for infinite time. It can be stopped
manually at any point of time.
The default value is Disabled. Select the duration field next to User
Defined and a pop up menu will be displayed to configure the test
duration.
³
TX: Enable or disable main stream transmission. The default value is
Enabled.
³
Framing: Select the frame structure of the main stream. Choices are
Ethernet/IPv4/UDP or Ethernet/IPv6/UDP and Ethernet. The default
setting is Ethernet.
