Port – EXFO AXS-200/850 Ethernet Test Set User Manual
Page 44
Setup
34
AXS-200/850
Port
Port

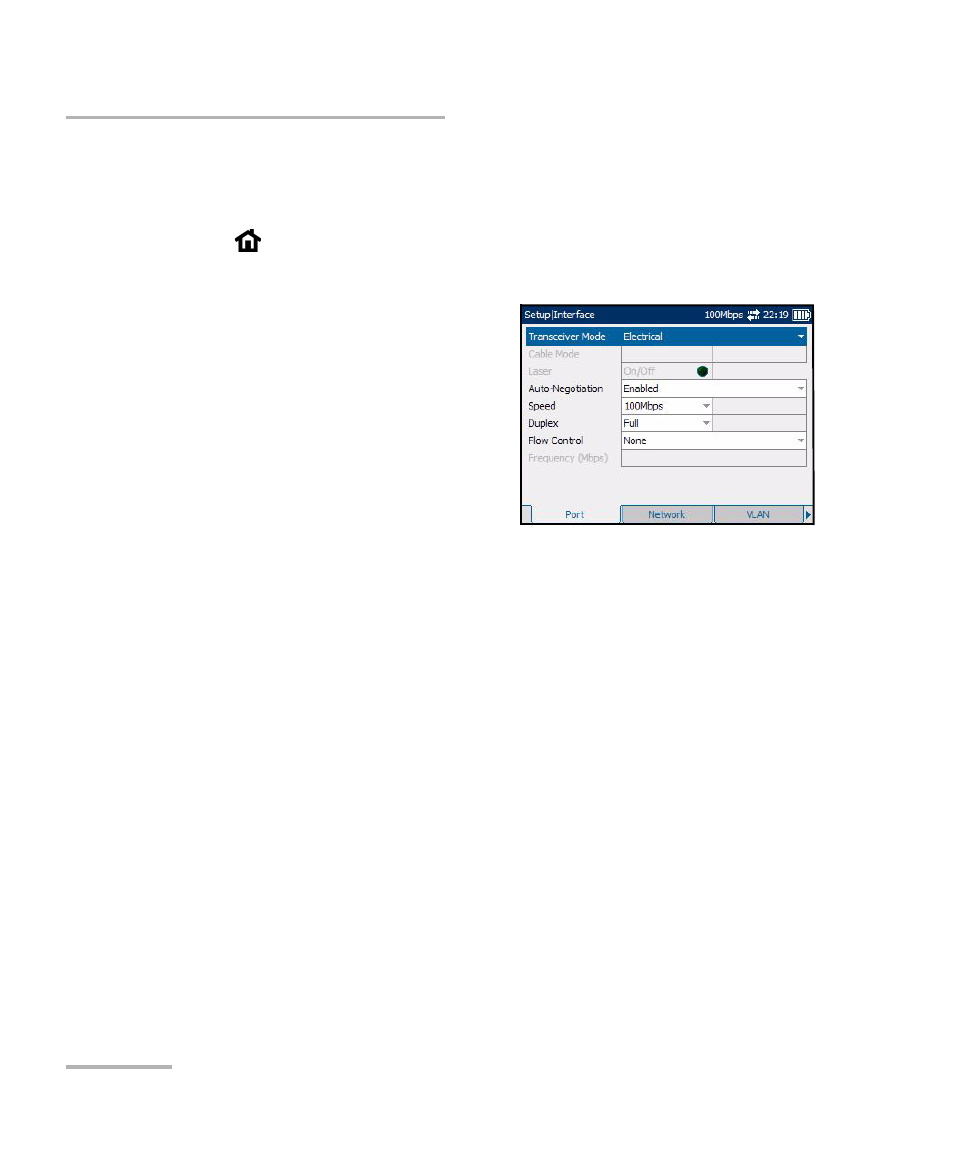

The Port tab allows the selection and the configuration of the physical port.
Press ,
select
Setup, Interface, and the Port tab.
To set up the port:
1. Select Transceiver Mode. Choices
are Electrical and Optical. The
default setting is Electrical.
2. Select Cable Mode if transceiver
mode is set to electrical. Choices
are Auto Detection or Manual. If
Manual is selected, go to the next
field and select the type of cable
(MDI for straight through, MDIX for
crossover).
3. Turn the Laser On or Off. This option is only applicable when the
transceiver mode is optical.
4. Enable Auto-Negotiation if the remote connected port is also set to
Auto-Negotiation, otherwise it should be disabled.
Note: Auto-Negotiation is not available with the optical 100 Mbps interface. For
other interfaces, this setting is enabled by default. The electrical 1000 Mbps
interface is only available with Auto-Negotiation enabled.
