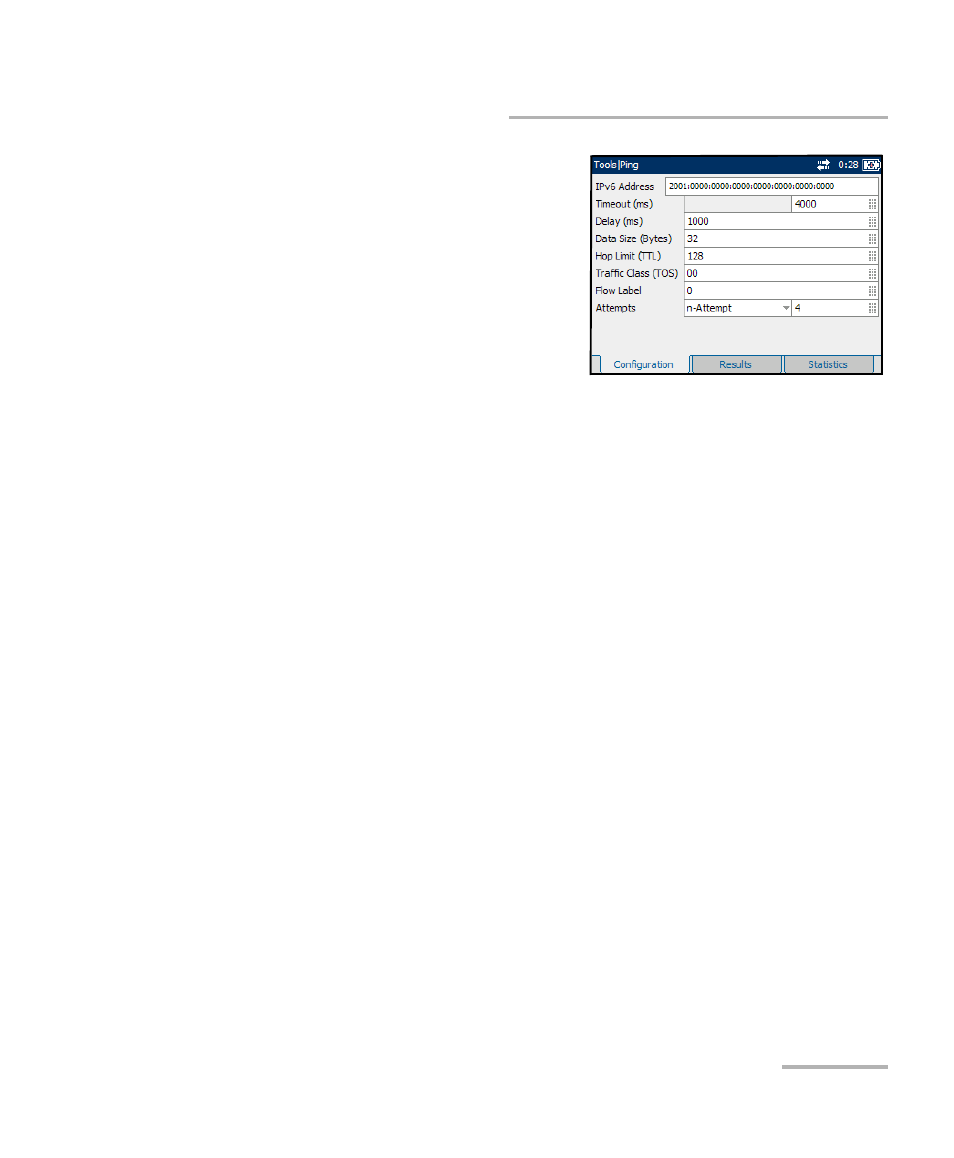

Ping Configuration
When the IP Address field is
selected for editing, the Latest IP’s
button appears on the bottom of
the screen. Press the
corresponding function key to
display the list of previously
configured IP addresses. Select the
desired IP address from the list, if
any.
³
Timeout (ms): Enter the maximum time allowed between an ICMP
echo and response. Choices are 200 ms to 10000 s. The default setting
is 4000 ms.
³
Delay (ms): Enter the delay between each attempt (PING). Choices
are 100 to 10000 ms. The default setting is 1000 ms.
³
Data Size (Bytes): Enter the buffer size that will be sent to the network
device to be detected. Choices are 0 to 1452 bytes. Default value is
32 bytes.
³
TTL for IPv4 and Hop Limit (TTL) for IPv6
Enter the maximum number of hops the packet can go through.
Choices are 1 to 255. The default setting is 128.
³
TOS for IPv4 and Traffic Class (TOS) for IPv6
Enter the type of service. Choices are 00 to FF. The default setting is 00.
³
Flow Label (For IPv6 Only): Enter the Flow Label value. The
acceptable range is from 0 to 1048575. The default value is 0.
³
Attempts Select n-Attempts to specify the number of ping requests to
send following a ping activation or select Continuous to ping
continuously until manually stopped. If n-Attempts is selected, enter
the number of ping attempts from 1 to 100 (default setting is 4 and
Continuous is disabled).
