5 Signal Connection and LEDs
This section describes all connectors (ports) and LEDs available on the
AXS-200/850 Ethernet Test Set.
The AXS-200/850 Ethernet Test Set is equipped with one RJ-45 electrical
and one SFP optical port (location of Laser/LED aperture).
Note: An SFP can be replaced at any time. If an SFP is changed while the optical
interface is selected and active, the laser will turn on automatically. Use
caution when installing the SFP in case the laser is enabled.

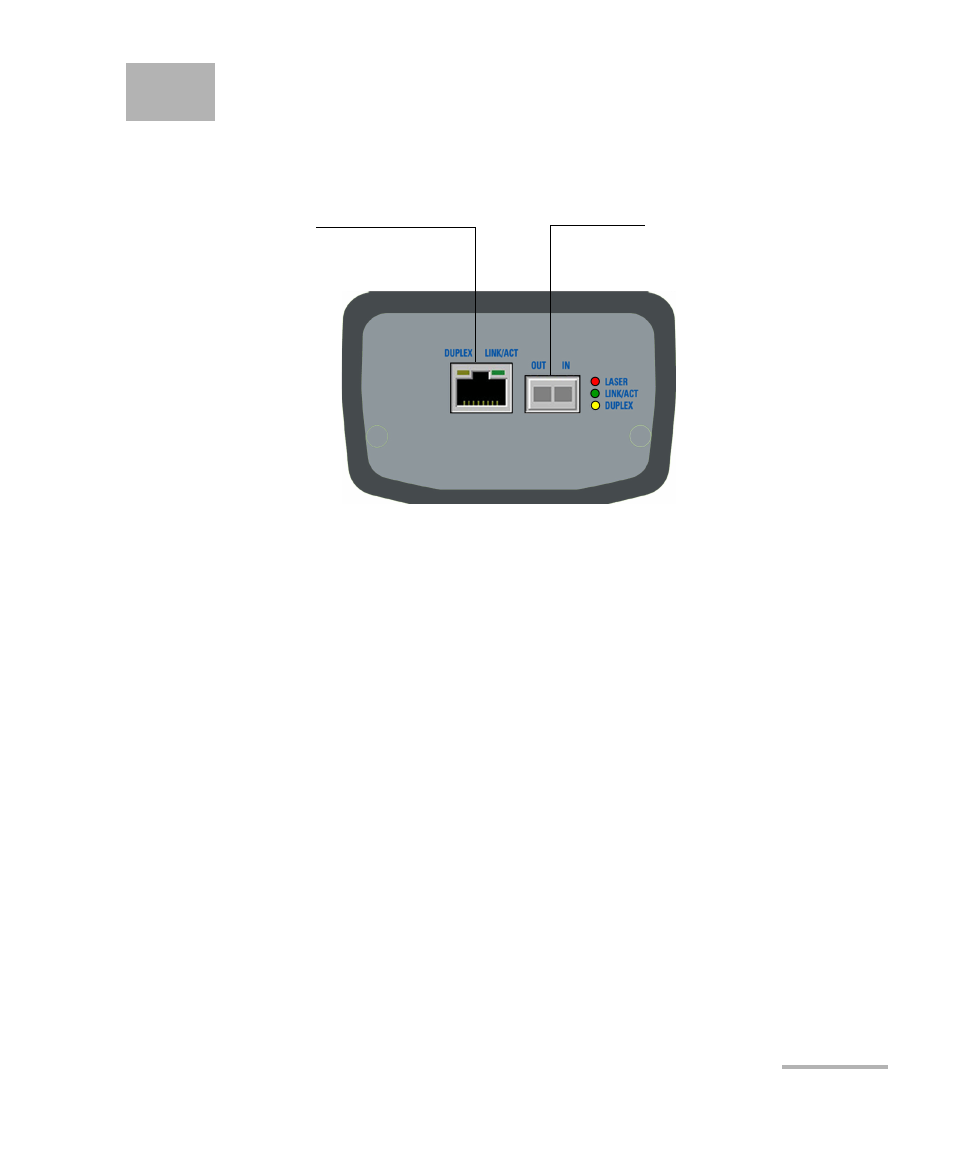

100/1000 Mbps Optical SFP
with Dual or Simplex
LC connector 10/100/1000 Mbps
Electrical with
RJ-45 connector
