Using the Smart User Interface
12 AXS-200/850
Home Menu
Home Menu

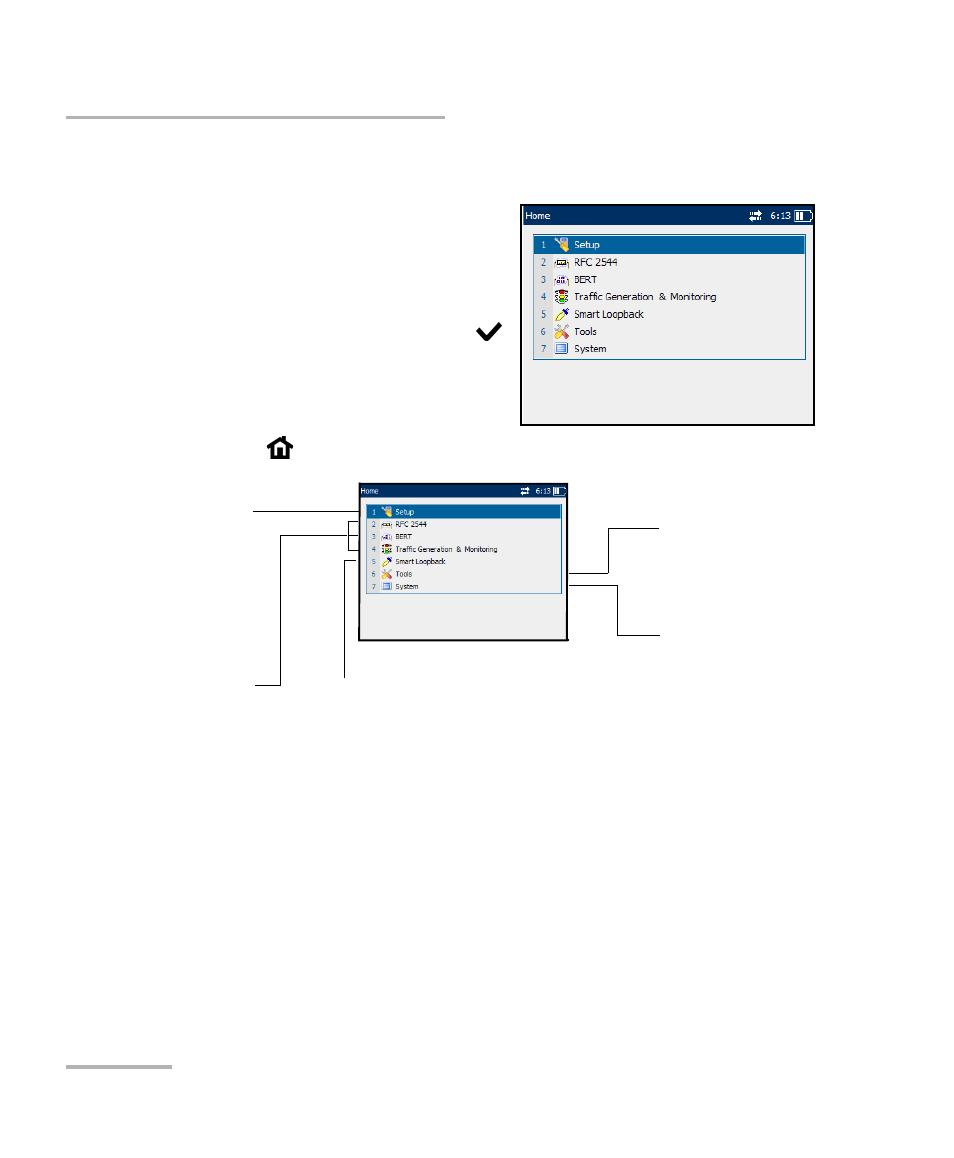

Upon start up, the Home menu is
displayed. Use the up and down
navigation arrows to navigate and
highlight menu items.
Note: To choose a menu item, press the
button or press the keypad number
corresponding to the number of the
item.
Press the button to return to the Home menu from any screen.
Setup: Allows to configure
the test interface, module,
remote selection, and
save/load the complete unit
configuration.
RFC 2544: Allows
configuring the subtests and
viewing test results.
BERT: Allows Ethernet traffic
generation and analysis up
to Layer 4 with specific test
pattern for Bit Error Rate
analysis.
Traffic Generation &
Monitoring: Allows traffic
generation and analysis to
qualify the performance of
Ethernet or IP Network.
Tools: Allows to ping,
trace route, cable test,
and report.
System: Allows file
management, system
settings, software
options management,
and display of system
information.
Smart Loopback: Allows transmitting back the
stream of data while interchanging the source
and destination addresses of the MAC, IP and
UDP/TCP layers.
