11 Smart Loopback
The Smart Loopback test allows looping back an Ethernet data stream
simply based on the interface setup parameters. The incoming frames are
re-transmitted after exchanging the source and destination addresses at
multiple layers (Ethernet MAC, IP, UDP).
Statistics
Press , and select Smart Loopback. Press to start or stop the test.

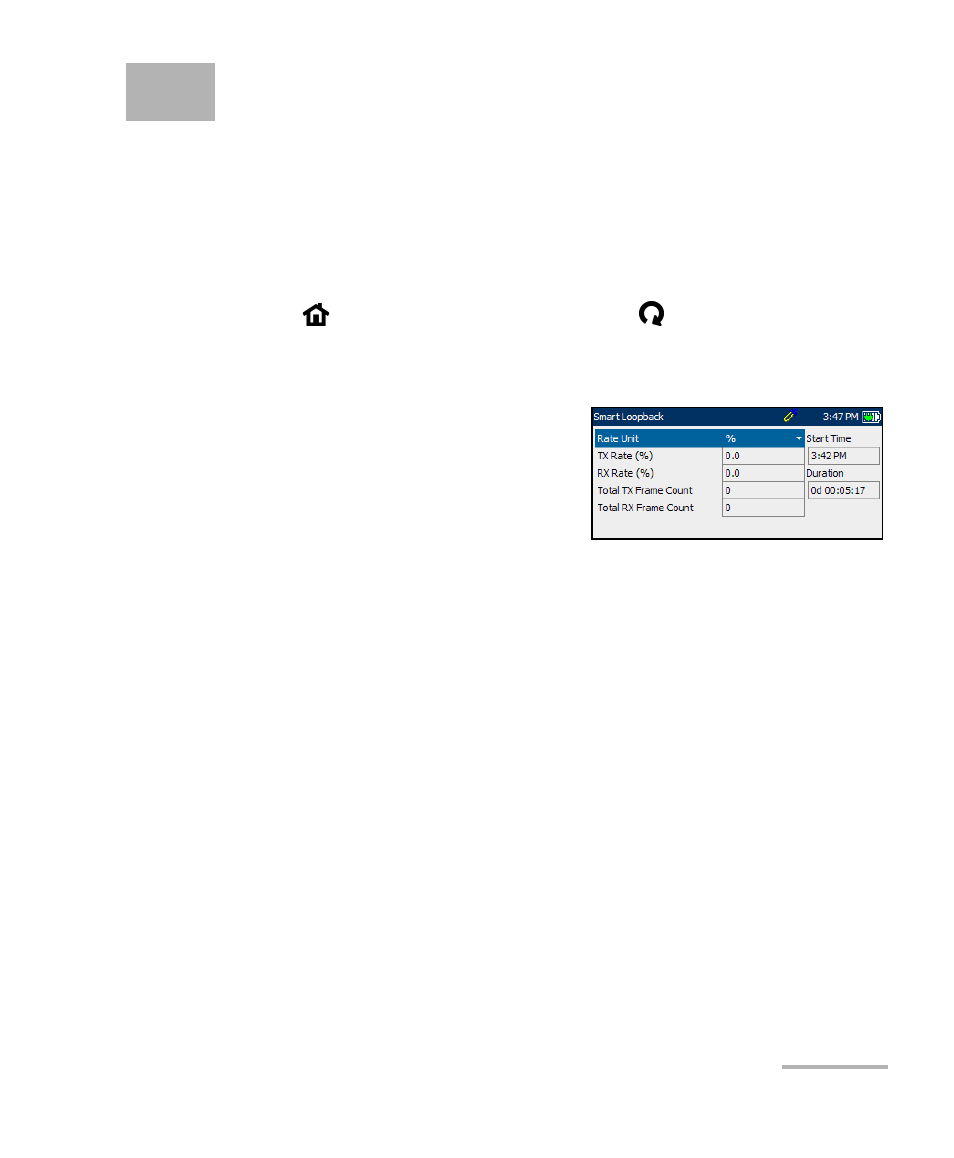

The Smart Loopback statistics are displayed as follows:
³
Rate Unit: Select the rate unit as % or Mbps.
³
TX Rate: Transmission rate as a
percentage of the line rate or
Mbps.
³
RX Rate: Receive rate as a
percentage of the line rate or
Mbps.
³
Total TX Frame Count: The Total TX frame count includes all frames
transmitted (related and not related to the test).
³
Total RX Frame Count: The Total RX frame count includes all frames
received (related and not related to the test).
³
Start Time: The time when the Smart Loopback test was started.
³
Duration: The length of time from when the test was started, until
when the test was completed.
Note: Half duplex mode is not supported while in Smart Loopback.
