Setup
Ethernet Test Set 43
VLAN
VLAN
The AXS-200/850 supports up to 2 stacked layers of VLAN. The VLAN tab
allows users to configure the layers, its priority, type and drop eligible.

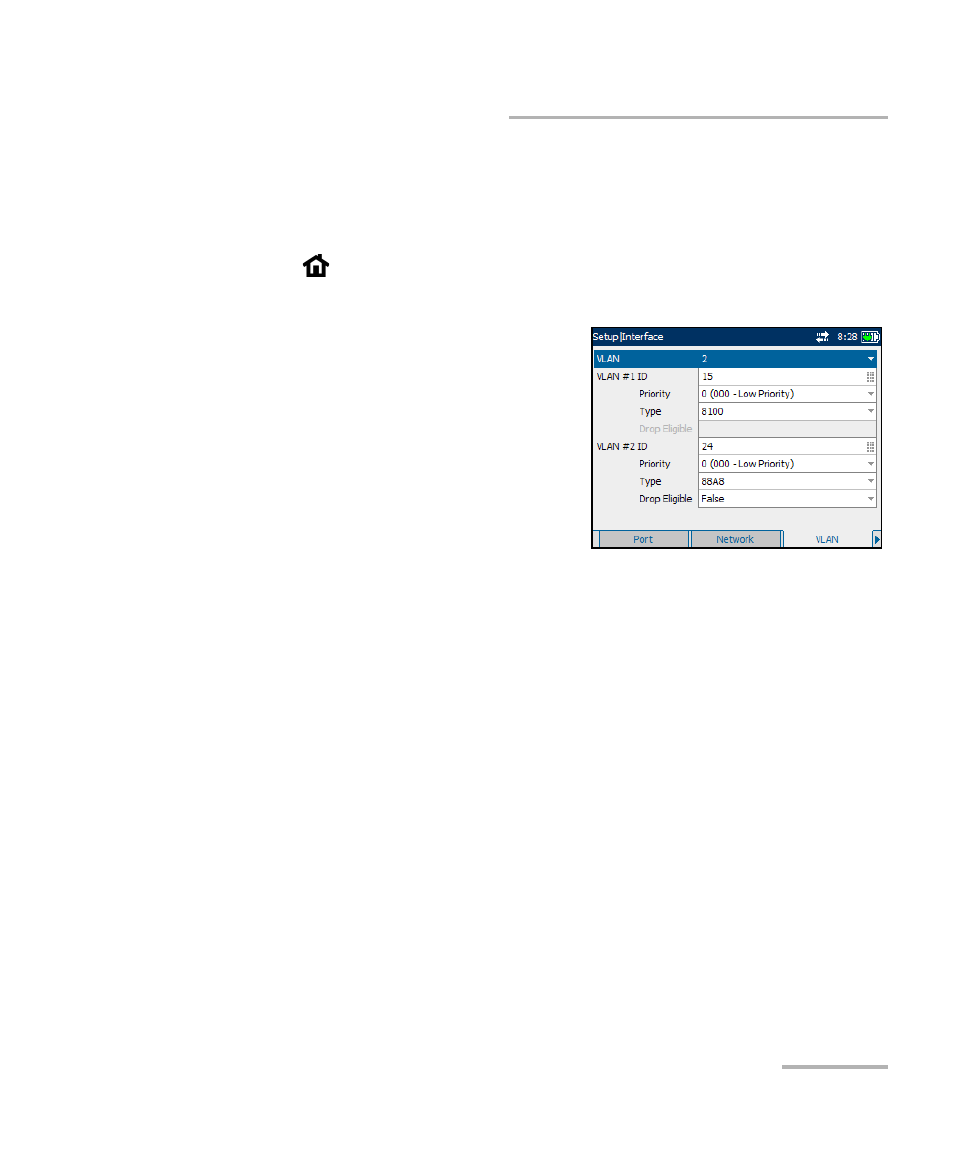

Press , select Setup, Interface, and the VLAN tab.
To configure the VLAN settings:
1. Select the number of VLAN layers.
Choices are None, 1 and 2 layers.
For each layer, set the following
parameters:
2. Enter the VLAN ID. The accepted
range is from 0 to 4095. The value
4095 is reserved while 0 and 1
have specific utility Refer to VLAN
on page 242 for more information.
The default value is 2.
3. Select the VLAN Priority. The accepted range is from 0 to 7. The
default setting is 0 (low priority).
4. Select the VLAN Type. The choices for VLAN Ethernet type are 8100,
88A8, 9100, 9200, and 9300. The default setting is 8100 for VLAN #1
and 88A8 for VLAN #2.
5. The Drop Eligible parameter allows the Service VLAN tag (S-TAG) to
convey eight distinct priorities, each with a drop eligible indication.
When enabled (DEI = 1), the drop eligible parameter is encoded in the
DEI of transmitted frames. The drop eligible parameter should be
enabled for a received frame if the DEI is set in the S-TAG or if the
Priority Code Point Decoding Table indicates drop eligible enabled for
the received PCP value. When disabled (DEI=0), the DEI is ignored on
receipt. Drop Eligible is not available when VLAN type is 8100. This
setting is disabled by default.
