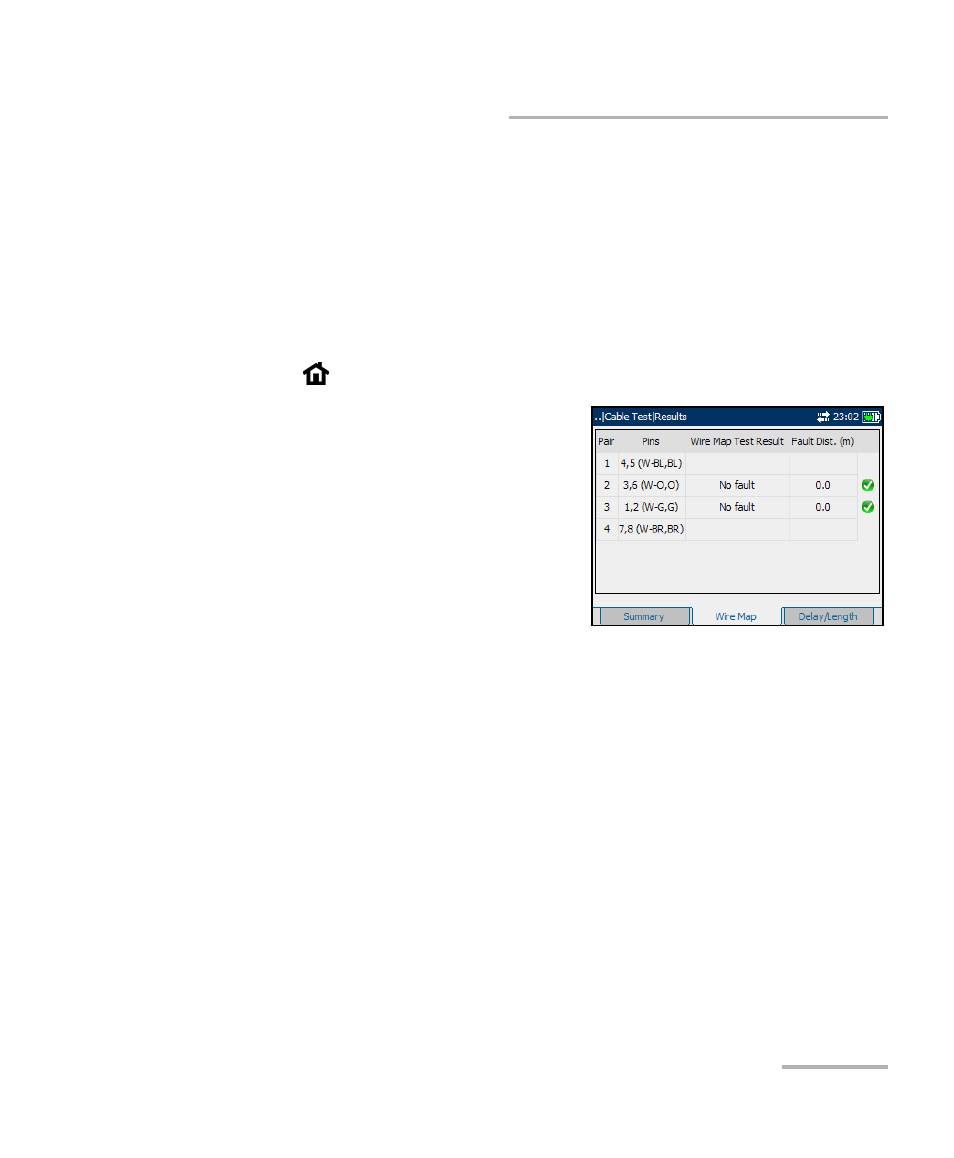

Cable Test Results - Wire Map
Cable Test Results - Wire Map
The cable test result Wire Map tab gives the cable pinout, and connectivity
errors for each pair. The fault distance is also displayed when a fault is
identified. The Pass/Fail verdict is also displayed when enabled.
Note: Cable test is only available when the Transceiver Mode is set to Electrical
(Refer to Port on page 34).
Press , select Tools, Results, and the Wire Map tab.
³
Pair: Indicates the pair number.
³
Pins: Indicates the pair’s pin
numbers and color of each wire
corresponding to the selected
wiring standard (see page 197).
W-BL = White-Blue
BL = Blue
W-O = White-Orange
O = Orange
W-G = White-Green
G = Green
W-BR = White-Brown
BR = Brown
