RFC 2544
84 AXS-200/850

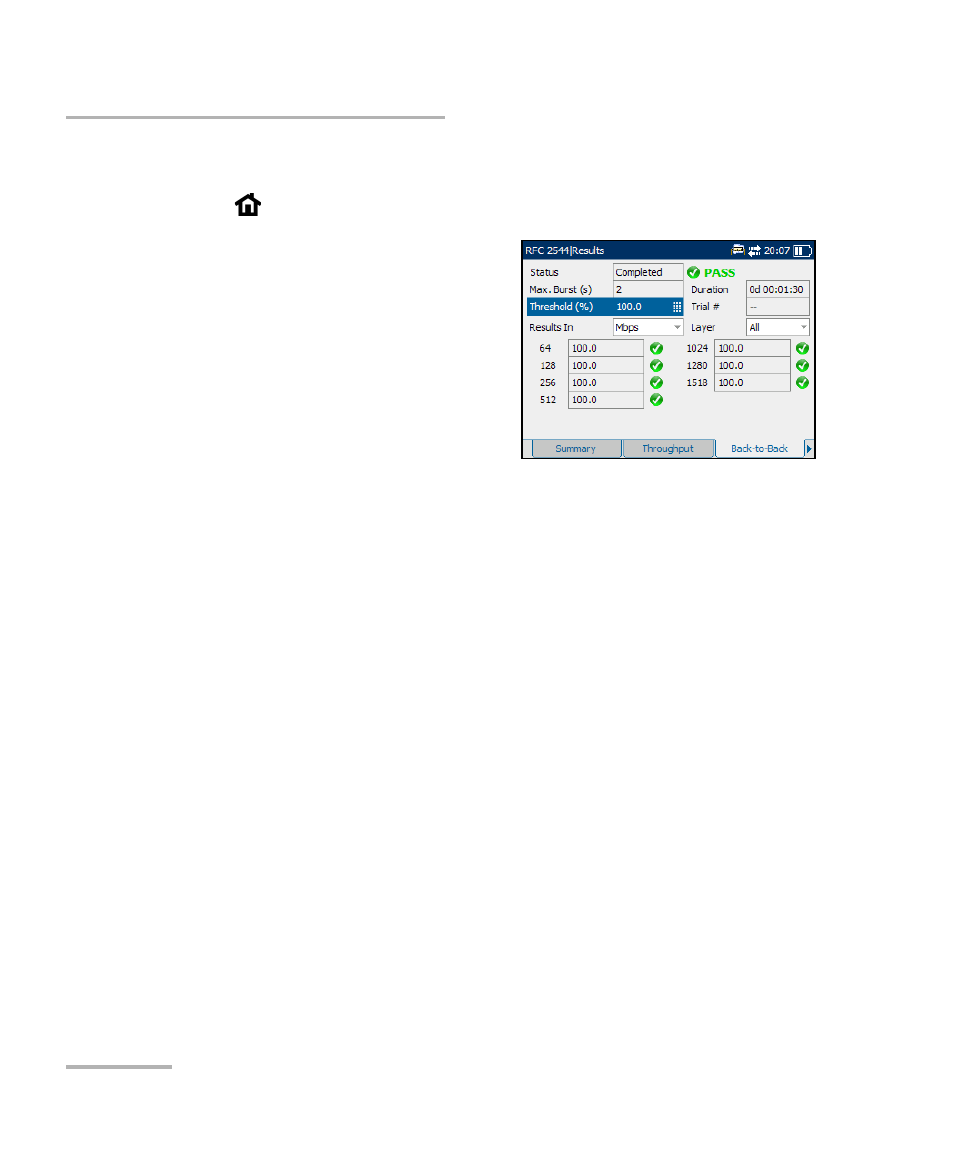

Back-to-Back Results
Back-to-Back Results
Press , select RFC 2544, Results, and the Back-to-Back tab.
³
Status: Displays the test status as
“--”, In Progress, Completed, or
Aborted. Once the Back-to-Back
test is completed or stopped, the
Pass/Fail verdict is displayed,
when enabled.
³
Max. Burst: Displays the
configured value of maximum
burst in seconds.
Note: Max. Burst will be displayed only when the Dual Test Set parameter is set
to Disabled in Global Configuration on page 58.
³
Duration: Displays test duration in D HH:MM:SS format.
³
Threshold: The back-to-back Pass/Fail threshold can be configured in
percentage at all times. When the value is changed, the verdict of the
subtest gets re-evaluated and updated.
³
Trial #: Displays the number of the current trial.
³
Results In: The back-to-back value is expressed in Mbps by default.
The user can also specify the values to be displayed as a percentage of
the maximum number of frames in a burst as specified by the burst
duration or in Frames per Burst (Frames/burst). Back-to-back results
are displayed for all frame sizes.
