Setup
48 AXS-200/850
Remote Selection
Manual Selection

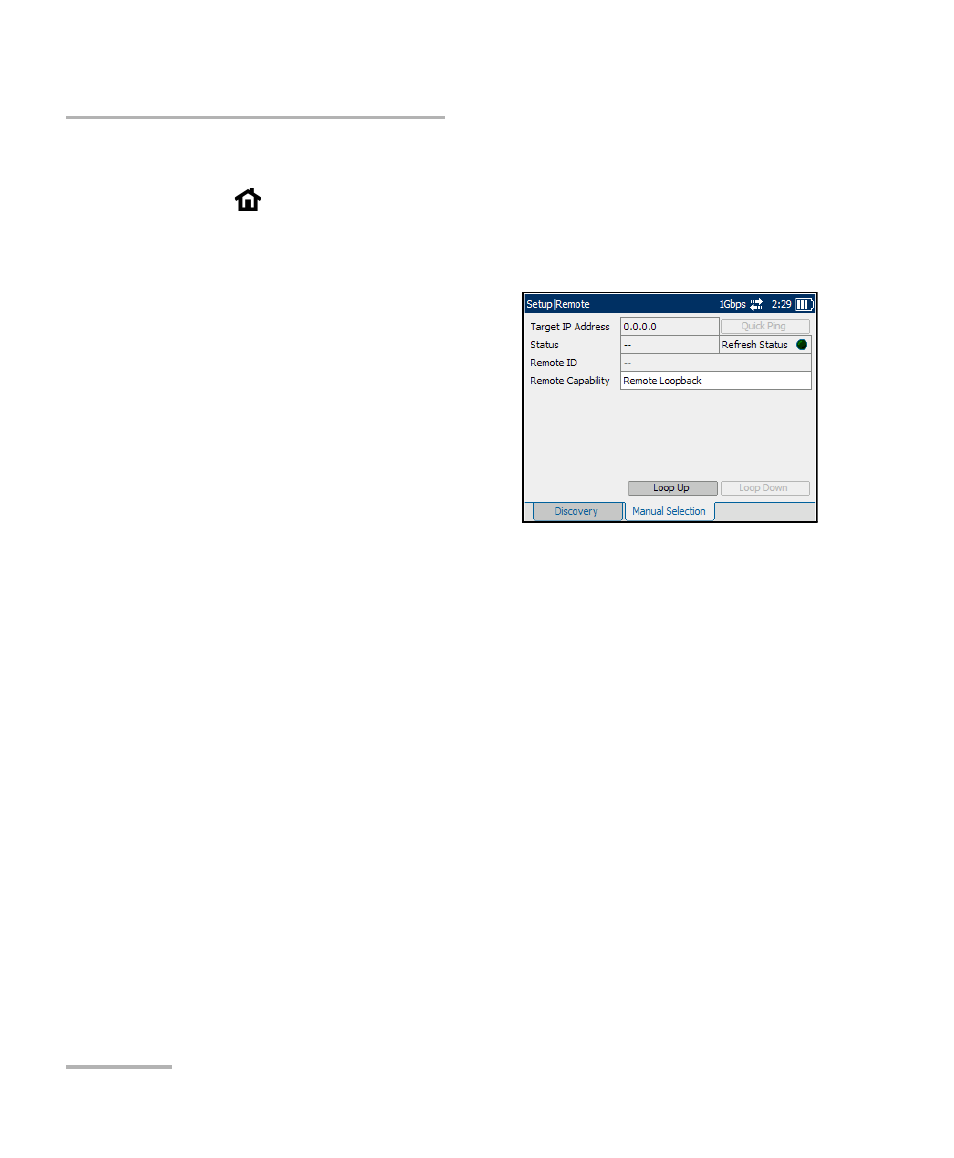

Press , select Setup, Remote, and the Manual Selection tab.
The Manual Selection tab offers a manual selection of the remote module.
For the module to be auto-discovered, see the Discovery tab.
³
Target IP Address: Enter the IP
address (IPv4 or IPv6 as per IP
version selection) of the target
module. The target IP address will
be copied into the Destination
Address of all the tests and tools.
When the IP Address field is
selected for editing, the Latest IP’s
button appears on the bottom of
the screen. Press the
corresponding function key to display the list of previously configured
IP addresses. Select the desired IP address from the list, if available.
³
Quick Ping: Select the Quick Ping button to test if the destination
IP address can be reached. A message will be returned to indicate
if the ping attempt was Successful or Failed.
³
Status: The state of the target module can be one of the following:
Not Responding, Looping Up, Looping Down, Connecting,
Disconnecting or any of the status listed in the table on page 47.
³
Refresh Status: Select Refresh Status to refresh the status of the
specified target module periodically.
