Fieldware-SA for the Legacy 6000
Software Version 2.00
Chapter 4 - Real-time Operation 4-7
Product Application

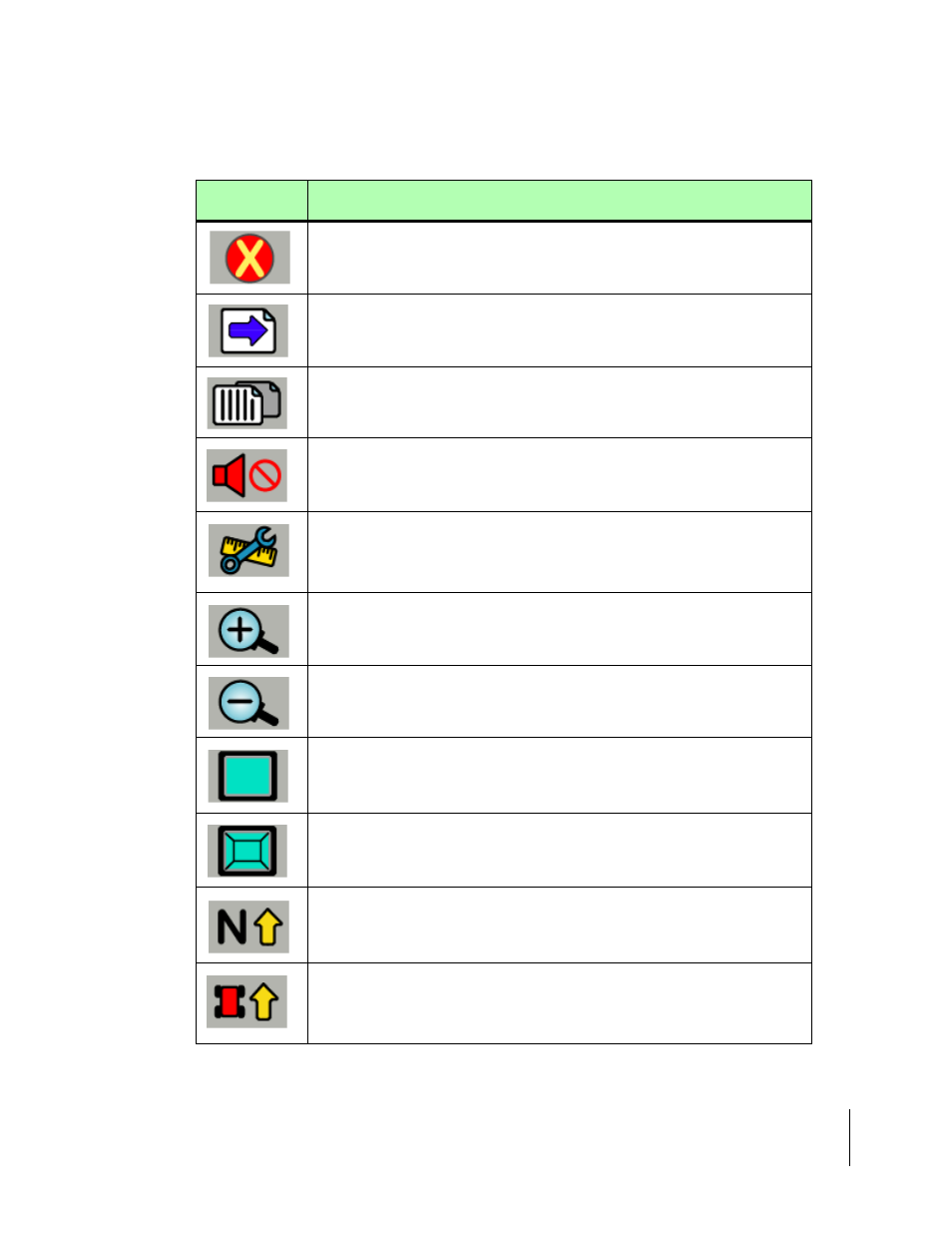

Real-time Soft-key Descriptions
Soft-key Description
The Exit soft-key. Pressing this soft-key causes ARM to exit out of the real-
time process and return to the Main ARM Launcher page.
The Next Page soft-key. Pressing this soft-key alternates between the map
page and the rates page.
The Alternate Rates Page soft-key. Press this to view additional product
information such as sensor and monitor status and current implement width.
The Stop Alarm soft-key. Press this to mute an alarm.
The Device Manager soft-key. When pressed, this soft-key launches Device
Manager diagnostics. This is used when it is necessary to trouble shoot the
devices connected to the console, including the console or lightbar, when run-
ning in real-time.
The Zoom In soft-key. When pressed, decreases the area displayed in the
view page. There is a total of 5 zoom levels.
The Zoom Out soft-key. When pressed, increases area displayed in view
page. There is a total of 5 zoom levels.
The Full Screen soft-key. When pressed, the entire map page space is
replaced by the map view. This allows more of the vehicle trajectory to be
viewed. Press any key to return to the normal view page.
The Partial Screen soft-key. When the Full Screen Soft-key is pressed, the
soft-key graphics change to the Partial Screen. When pressed, the console dis-
play area contains the map view and the right-hand mapping button column.
The North Up View soft-key. This map page display option, keeps North at
the top of the view page. When pressed, this soft-key changes to the COG
View soft-key.
The Course on Ground (COG) View soft-key. This view page option, keeps
the vehicle stationary in the view page with the heading (course) of the vehicle
pointing to the top of the view page. When pressed this soft-key changes to the
North Up View soft-key.
Table 4-1: Real time Soft-key Description
