Chapter 2 - Getting Started 2-29
System Setup
Entering the Offset Direction X
The Offset Direction X (Figure 2-22) is the direction, left or right, of the vehicle center line (GPS
antenna), that the center of a swath is offset. Typically this is set to None, since most swaths are
centered on the vehicle’s center line. Refer to “The Vehicle Coordinate System” on page 2-19 for a
description of the offset directions and distances.
If an Offset Direction X of either Right or Left is selected, the next setup page (Figure 2-23) asks
for the distance of this offset. If None is selected, there is no distance and therefore a distance is
not asked for.

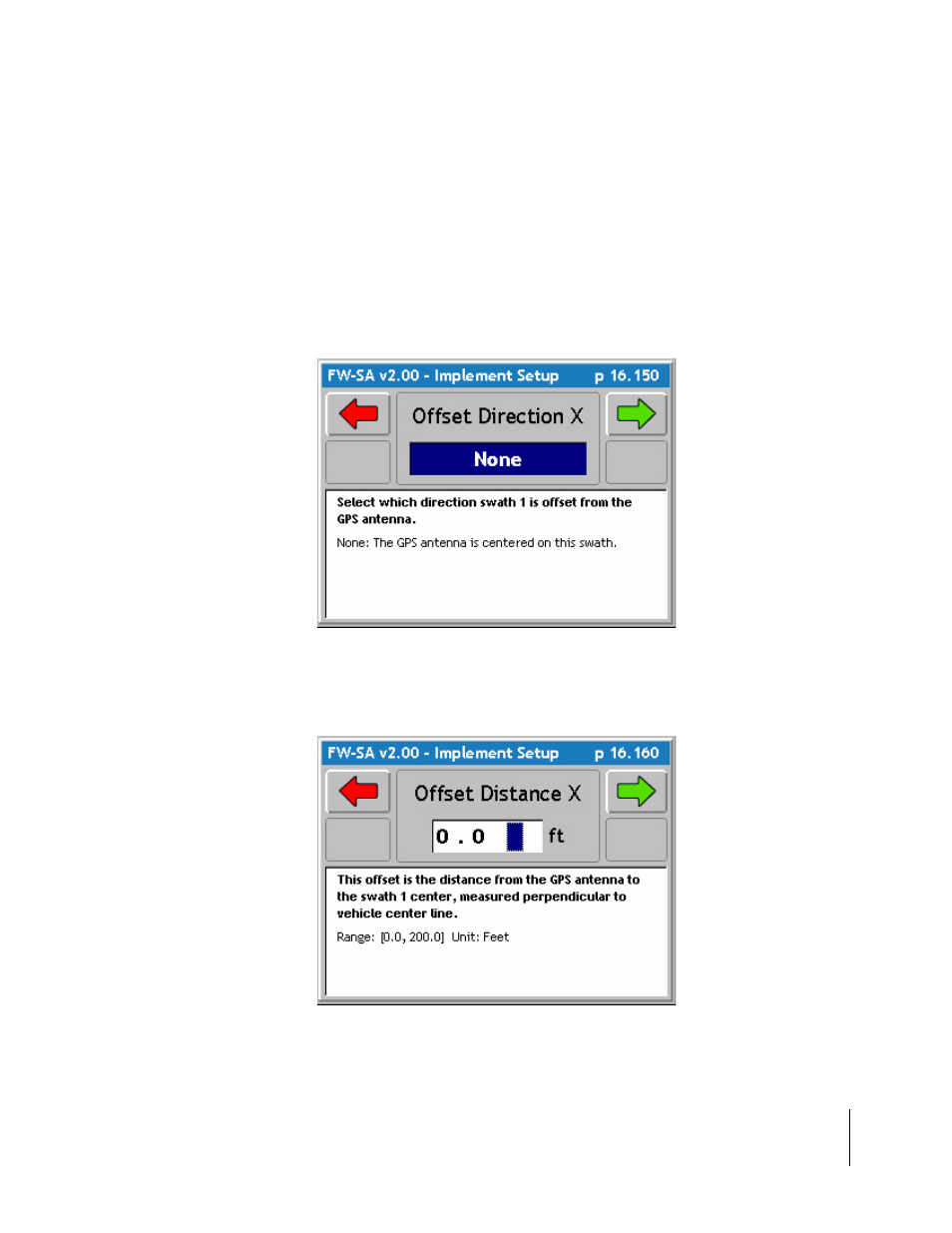

Figure 2-22: The Offset Direction X Page
Figure 2-23: The Offset Distance X Page
