Product Application
Fieldware-SA for the Legacy 6000
Software Version 2.00
The Map Page
The Map page allows the operation progress to be viewed. This page displays the vehicle at its
current location, as well as current implement status and application trajectory. If variable rate
application is being performed using a prescription map, the prescription map can be seen in the
background.
All mapping and guidance related soft-keys are displayed in the right side column of the map page.
See Table 4-1 for a description of each soft-key that can be displayed in the Map page.

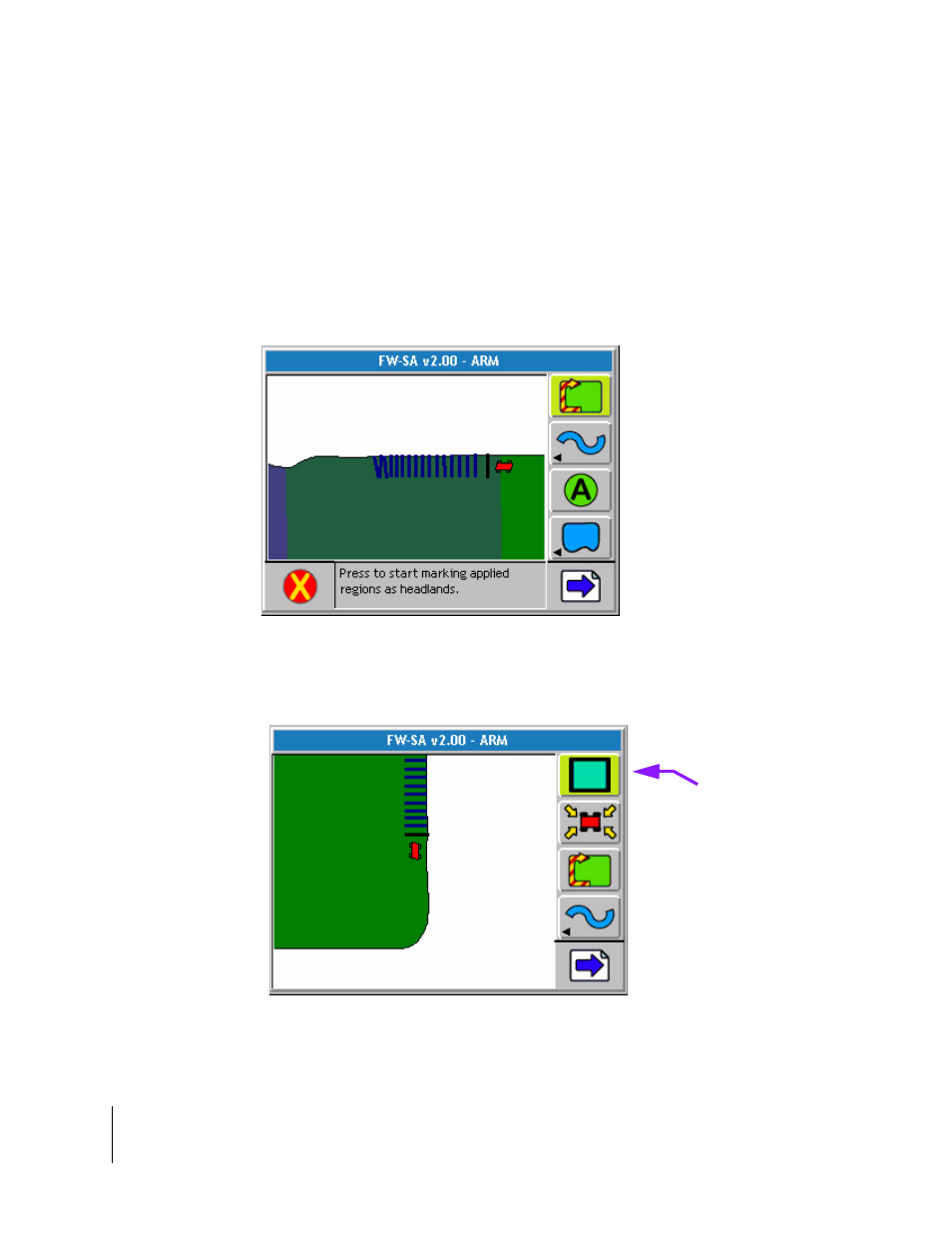

Figure 4-5: The Map Page
Figure 4-6: The Map Page in Full Screen Mode
Full Screen
Soft-key
