Chapter 2 - Getting Started 2-25
System Setup
Running Implement Setup with No Rate Controller
This section describes the Implement Setup steps used when no rate controller is connected to the
Legacy console and the Mid-Tech boom sense cable is being used.
Boom Sense Options
The Legacy 6000 has several boom sense options, a Mid-Tech three, five, or nine section Switch
Box or a five or nine section Boom Sense cable. If using one of these boom sense options it is
necessary to run Implement setup and establish the switch to swath section relationship.
To use the Boom Sense cable, the Rate Controller must be set to None, and Status Detect must be
set to On, in Controller setup set (see “Controller Setup” on page 2-31).

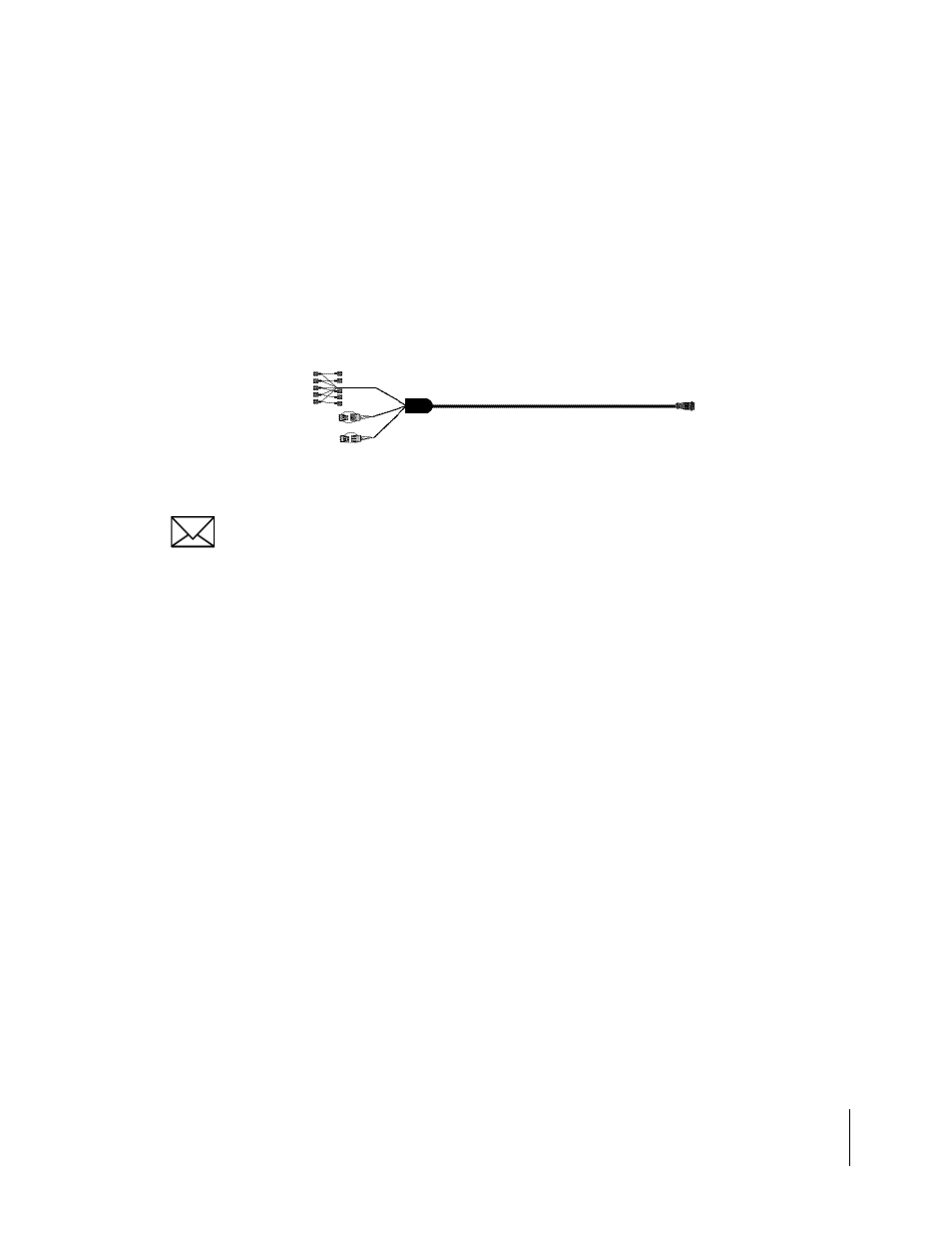

Figure 2-18: Boom Sense Cable
