Fieldware SA for the Legacy 6000
Software Version 2.00
Chapter 1 - System Introduction 1-7
Legacy 6000 Console
Swath XL Lightbar
A CAN based Swath XL Lightbar was developed specifically for the Legacy 6000 system. The
Lightbar is required for applications using guidance and recommended for non-guidance uses as
well. In none guidance use (logging data only) the lightbar can provide area and rate feed back.
Dimensions: 16.0" Wide x 3.0" High x 3.0” Deep (405 x 76 x 76 mm)
Weight: 8 oz. (0.22 kg)
Enclosure: Sealed ABS / Poly carbonate alloy construction. Can be mounted to the exterior of the
vehicle.
Cable: Mid-Tech proprietary CAN Bus cable. Cable extension available.
Front Panel LEDs: High-lumen red, yellow, and green, adjustable brightness.
Text Display: 8-character, high intensity LED alphanumeric text display, with brightness adjust-
ment.
Mounting Bracket: Big grippy knobs, can be mounted on dash, from ceiling on vertical plane,
interior or exterior.

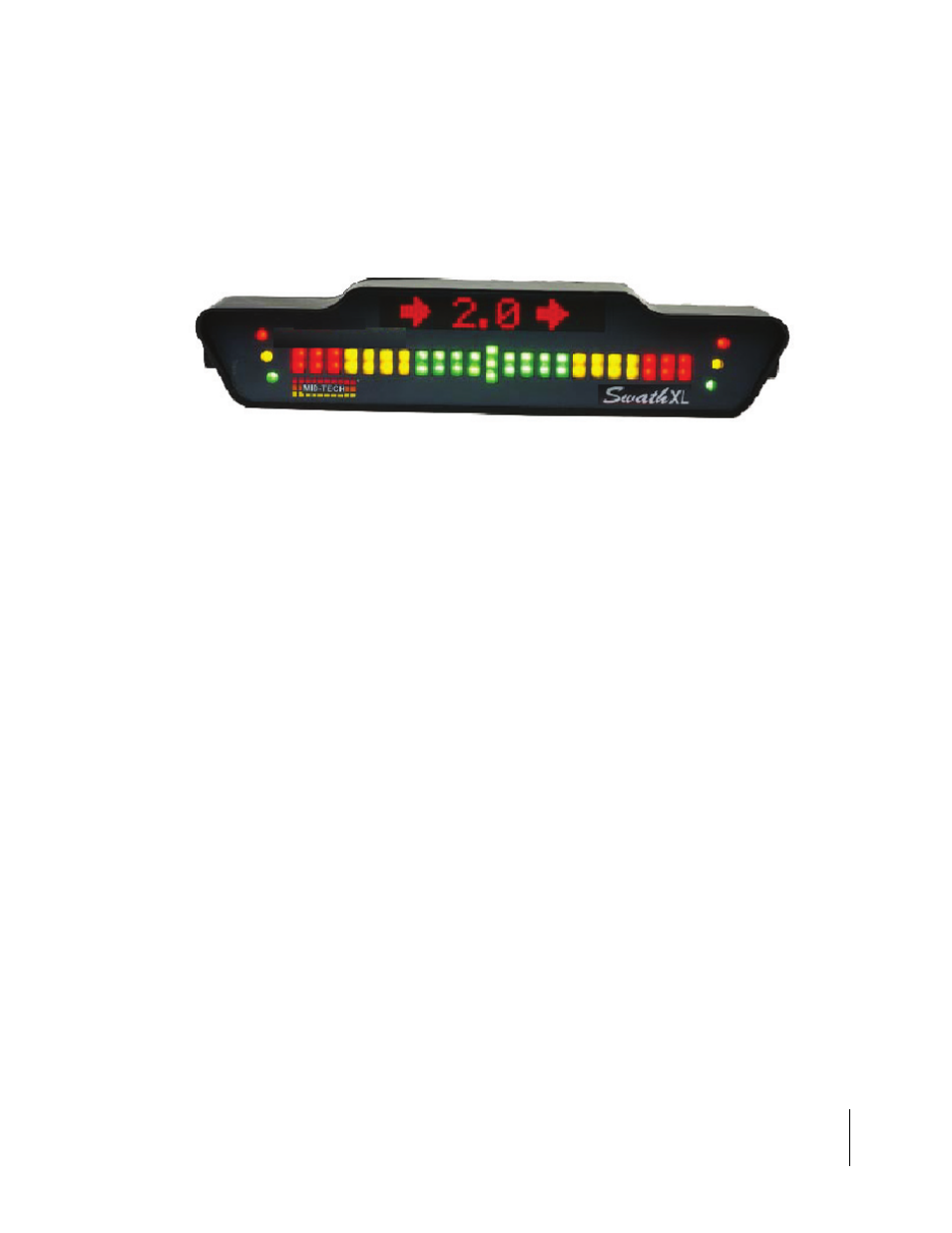

Figure 1-3: Swath XL Lightbar
