Interfacing with the legacy 6000 console, Figure 5-1: fieldpilot system diagram, Figure 5-2: fieldpilot system concept – TeeJet Fieldware SA 2.0 for Legacy 6000 User Manual
Page 141
Fieldware-SA for the Legacy 6000
Software Version 2.00
Chapter 5 - Fieldware FieldPilot 5-3
FieldPilot Introduction
Interfacing with the Legacy 6000 Console
The Trimble Navigation Controller connects to the Legacy 6000 COM 1 or COM 2 port. Connect
the cable marked “Display”, on the Trimble Navigation Controller, to a Legacy 6000 serial port.
Select the proper COM Port in FieldPilot setup (see “Running FieldPilot Setup” on page 5-8).

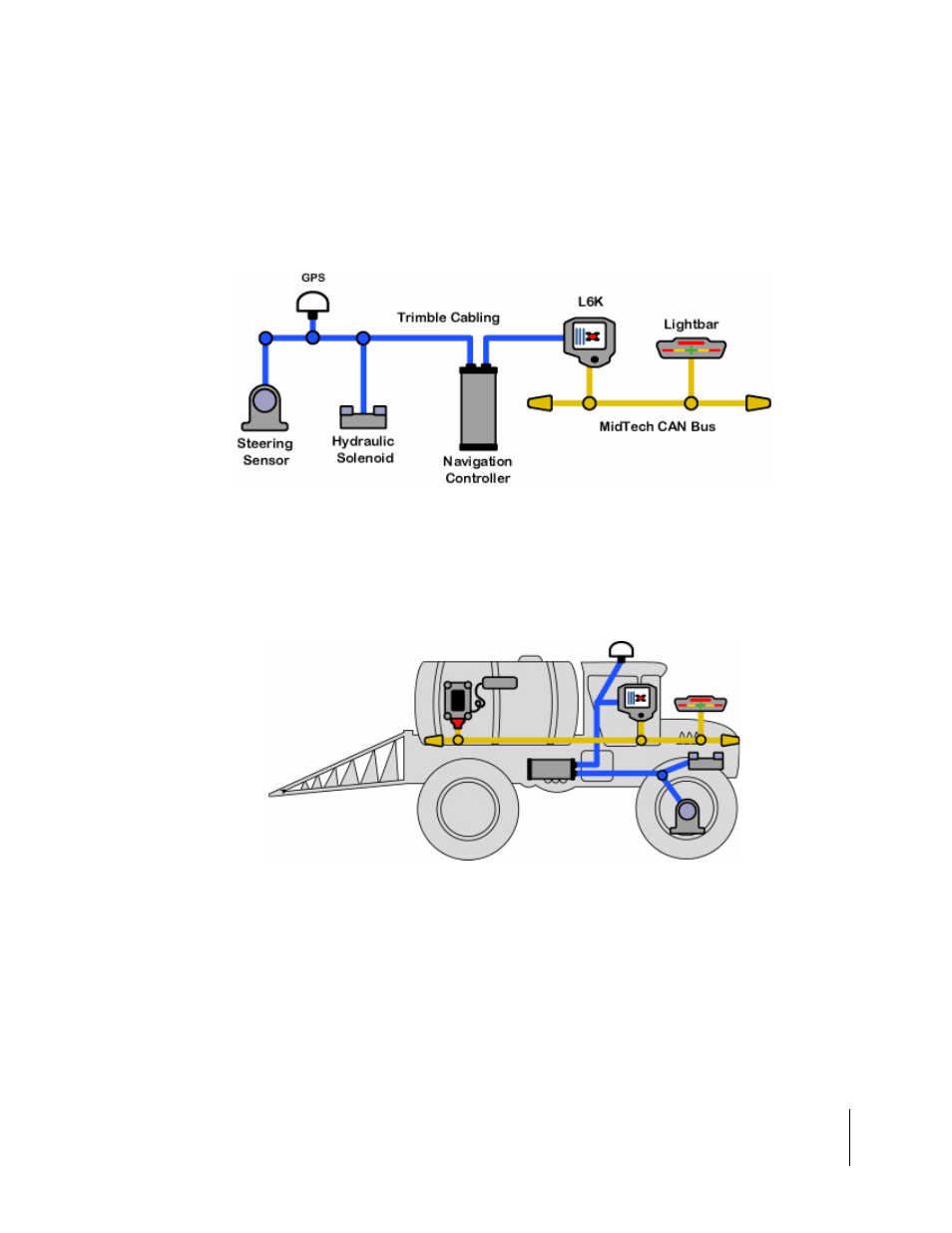

Figure 5-1: FieldPilot System Diagram
Figure 5-2: FieldPilot System Concept
