Fieldware-SA for the Legacy 6000
Software Version 2.00
Chapter 2 - Getting Started 2-15
System Setup
Lightbar Setup
Lightbar setup defines how the Swath XL lightbar is to be configured with the Legacy 6000 con-
sole. Lightbar setup parameters are listed in Table 2-6.
To access Lightbar Setup from the Main Launcher page (Figure 2-2), select System Setup (Figure
2-7) / Lightbar Setup (Figure 2-9).
To change any of the Lightbar settings, highlight the setting name listed in the center column of the
Lightbar Setup page and press Enter. The Setup Wizard can be used to walk through and change
any or all of the settings. When done making changes, press the Forward Arrow to save and exit
Lightbar Setup. Press the Back Arrow to exit without saving any changes.
Lightbar setup is available when Manual Guidance and or FieldPilot features are activated.

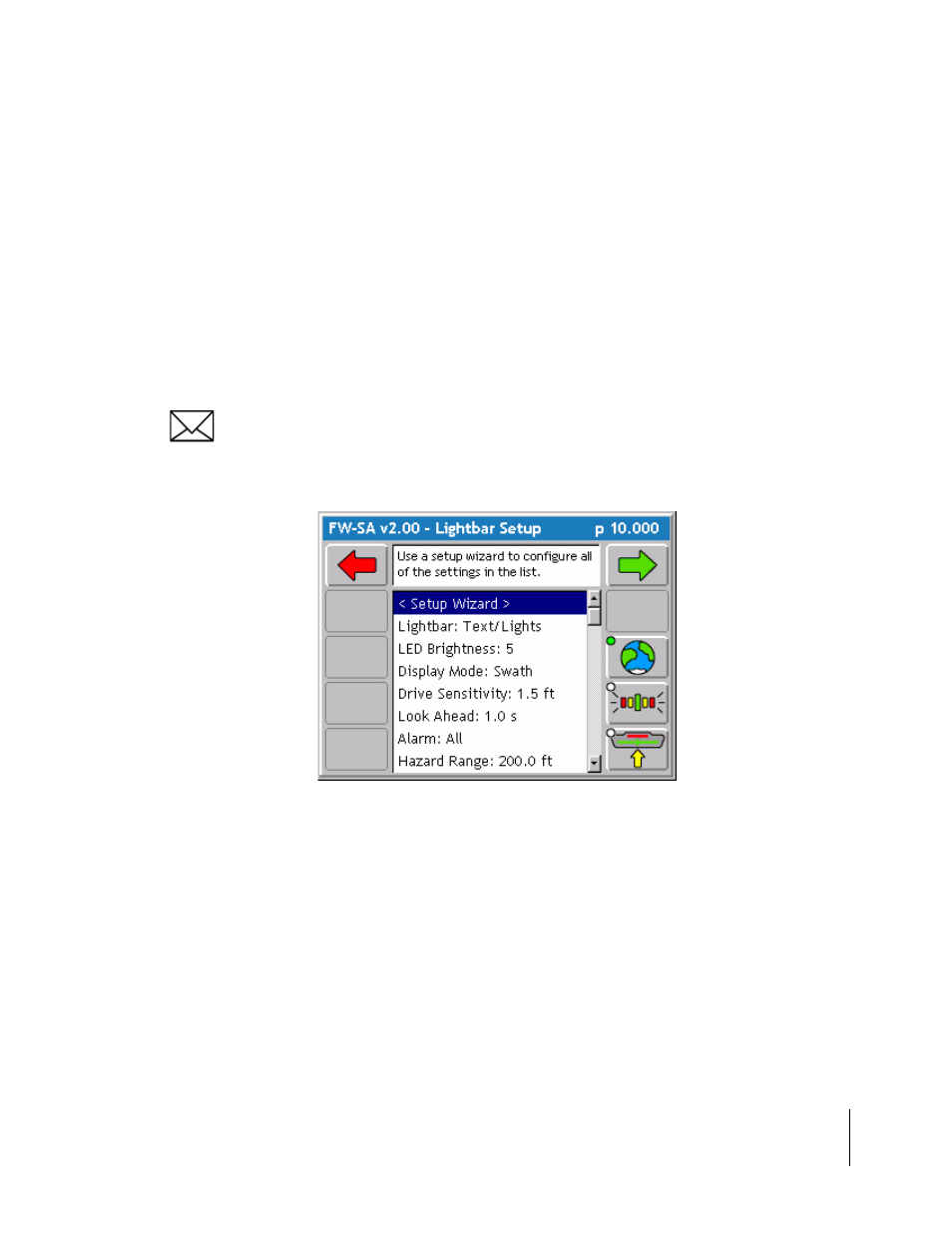

Figure 2-9: The Lightbar Setup Menu Page
