4-42 Chapter 4 - Real-time Operation
Lightbar Index
Fieldware-SA for the Legacy 6000
Software Version 2.00
Lightbar Index
The Swath XL lightbar is capable of displaying a considerable amount of information to the user.
This information can be represented as text in the display window, illuminated lights on the stop
lights, cross track LEDs, or a combination of text and lights. Information displayed on the lightbar
depends on both user defined settings and system warnings not controlled by the user. Table 4-3
describes each possible lightbar state and possible information that could be displayed.

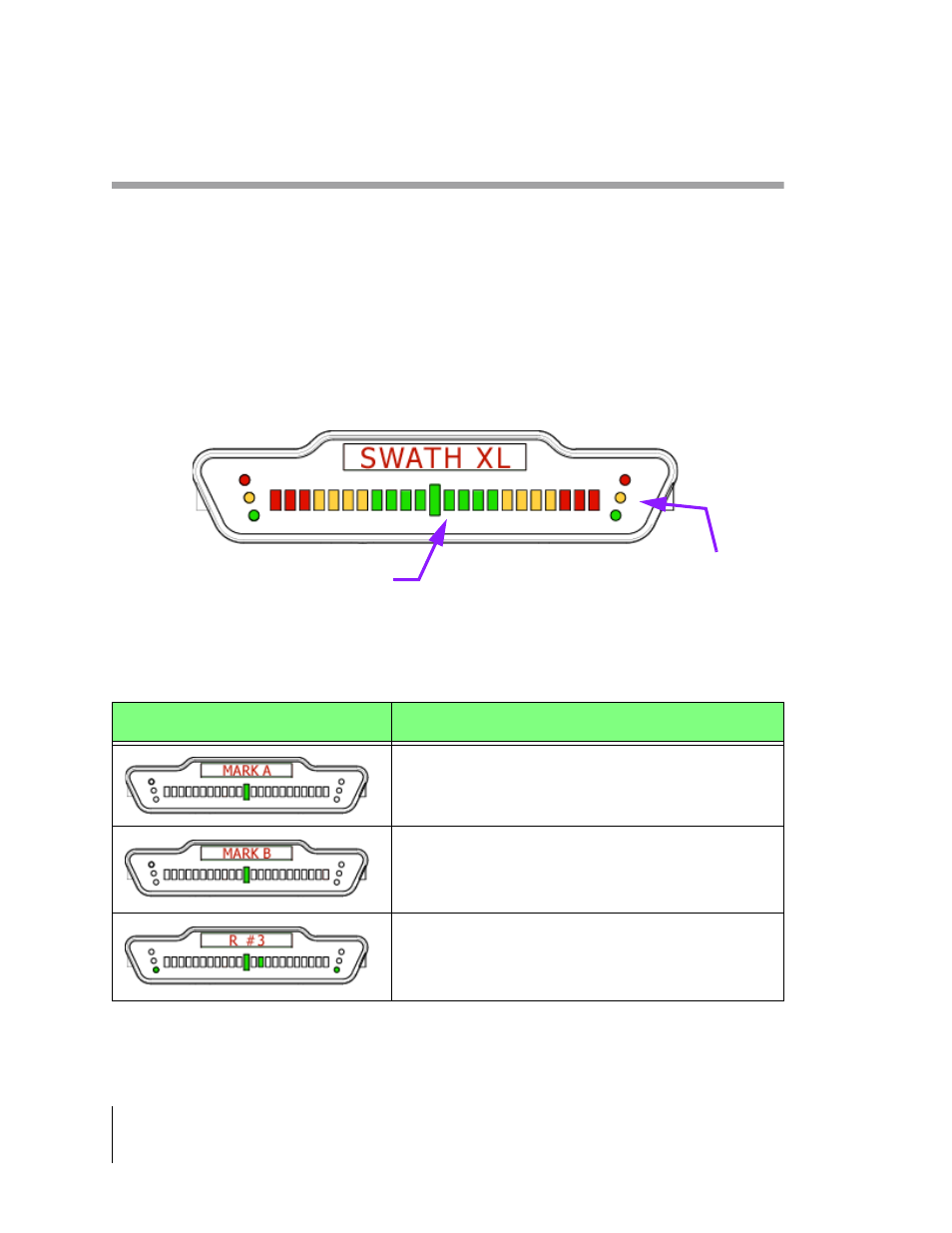

Figure 4-42: The Swath XL Lightbar
Lightbar State Description
Mark A: Displayed when establishing the guidance point A of
the initial guideline.
Mark B: Displayed when establishing the guidance point B of
the initial guideline.
Swath #: A user selected lightbar message. When not on the
initial guideline the first character is either L or R for Left or
Right of the initial guideline. The number identifies how
many lines left or right of the initial guideline.
Table 4-3: Swath XL Lightbar Index
Eight Character Text Display Window
Cross Track Error LEDs
Warning
Stop Lights
Red
Yellow
Green
