2-22 Chapter 2 - Getting Started
System Setup
Fieldware-SA for the Legacy 6000
Software Version 2.00
Entering the Offset Direction Y
The Y direction offset is the direction, (along the center line of the vehicle) from the GPS antenna
to the center of a swath (Figure 2-12). Refer to “The Vehicle Coordinate System” on page 2-19 for
a description of the offset directions and distances.
When the correct direction is entered, press the Forward Arrow button to move to the next setup
page

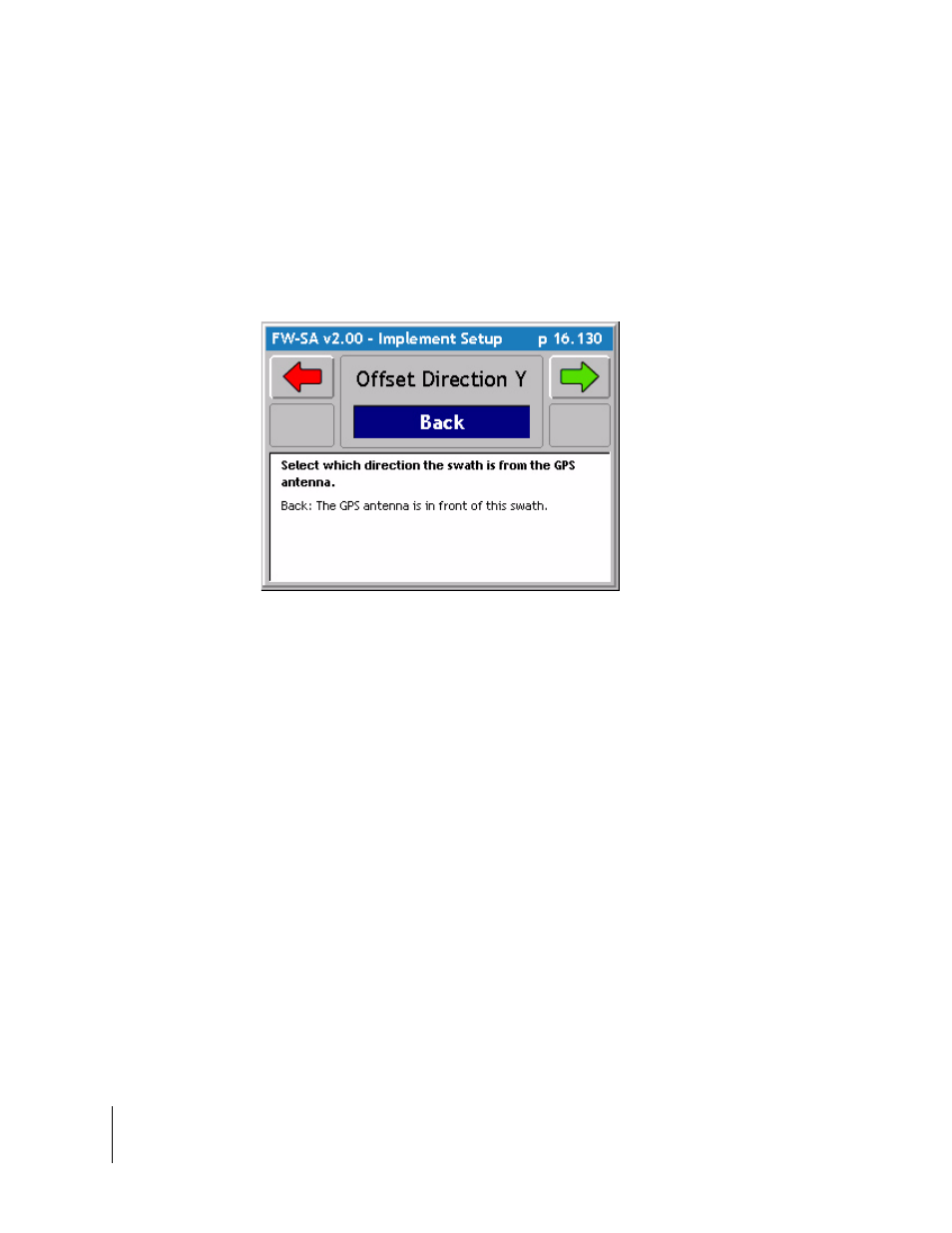

Figure 2-14: The Offset Direction Y Page
