Chapter 2 - Getting Started
System Setup

Fieldware-SA for the Legacy 6000

Software Version 2.00

Entering the Section Width

The Section Width page is where the width of a section is entered. When the correct section width
is entered, press the Forward Arrow button to move to the next setup page.

If there is more than one section for the swath, Implement setup loops through the Section to
Switch Assignment and Boom Width pages for each section. This User’s Guide assumes that the
previous two setup pages have been looped through for each section entered.

Entering the Offset Direction Y

See “Entering the Offset Direction Y” on page 2-22.

The Offset Distance Y

See “The Offset Distance Y” on page 2-23.

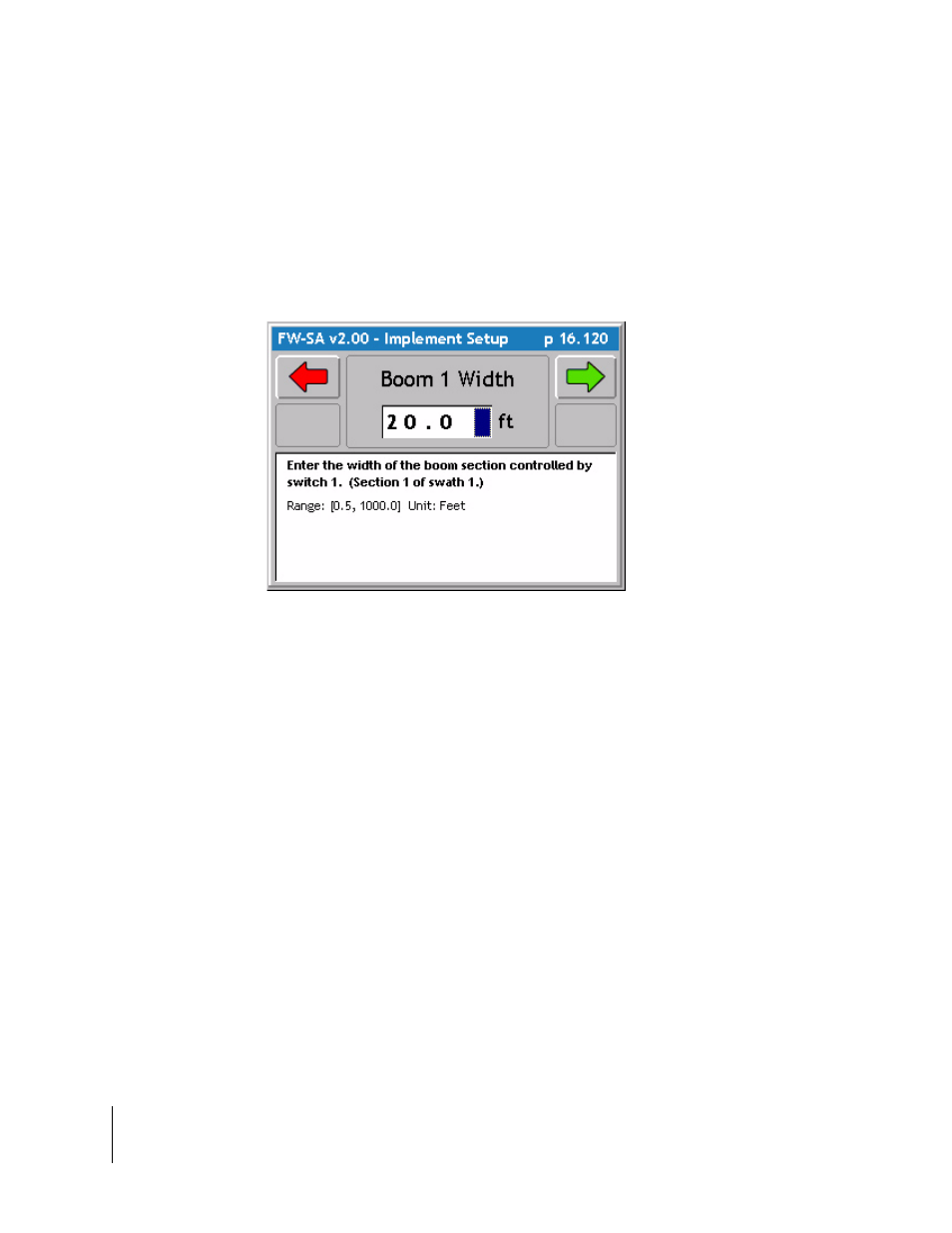

Figure 2-21: The Section Width Page
