Fieldware-SA for the Legacy 6000
Software Version 2.00
Chapter 2 - Getting Started 2-27
System Setup
Setting the Section to Switch Assignment
The Section to Switch page, allows a physical switch to be assigned to the current Swath Section.
This allows individual sections to be turned on and off. This boom section activity is properly dis-
played in the real-time map view as well as properly recorded in the application file (.RCD).
When the correct section to switch assignment is entered, press the Forward Arrow button to
move to the next setup page.
Swath sections are ordered left to right with respect to a forward facing vehicle. The left most section
is assigned number 1 and section numbers increase moving to the right across the swath (Figure 2-
12).

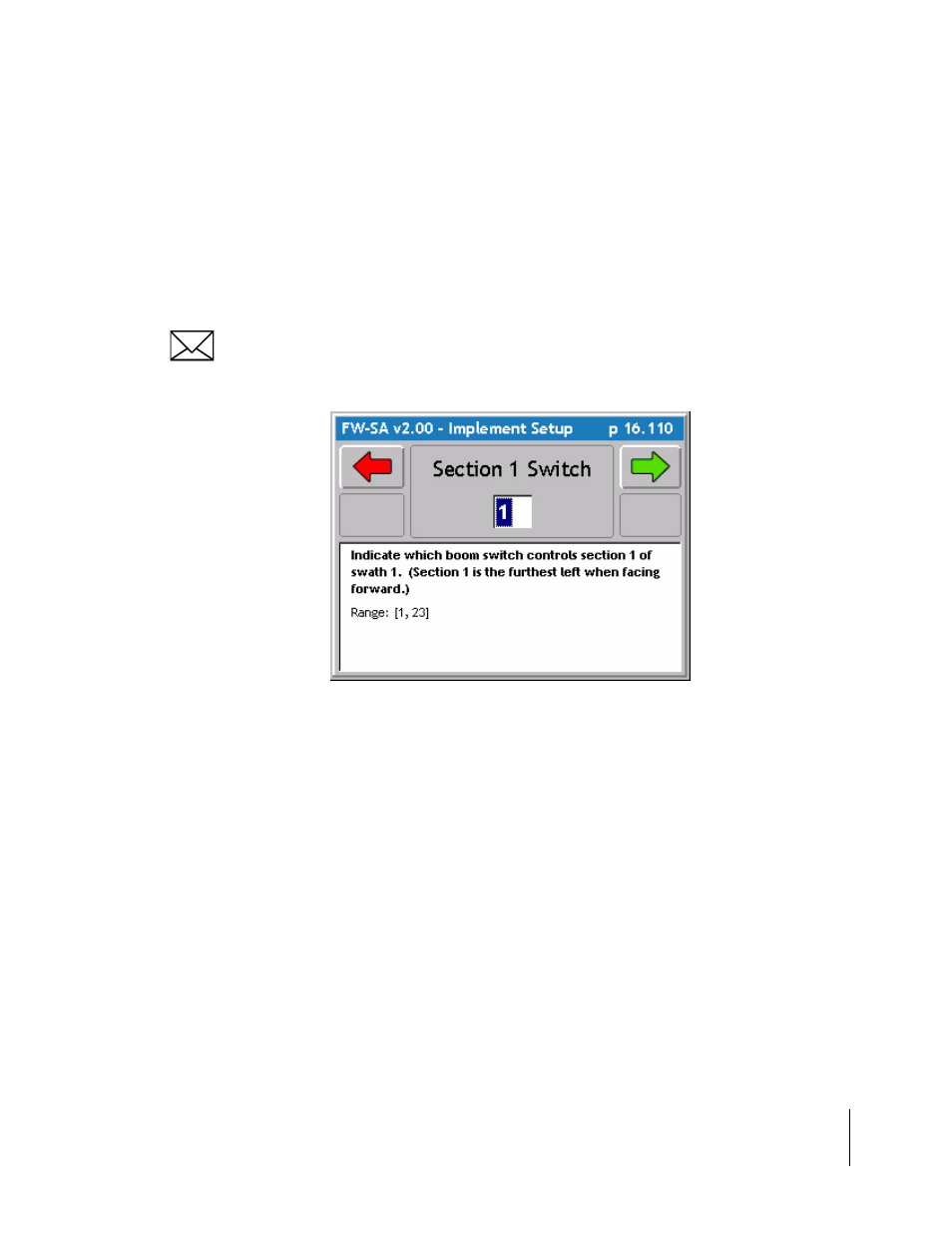

Figure 2-20: The Section to Switch Assignment Page
