4-4 Chapter 4 - Real-time Operation
Product Application
Fieldware-SA for the Legacy 6000
Software Version 2.00
The Rates Page
The Rates page displays various information related to the product and associated rate controller.
The Rates page displays the product name at the top of the page, as well as the current rate, cur-
rent speed, material applied, acres applied, and remaining amount of material and acres. A com-
pleted field boundary must exist to calculate the remaining acres. There are also two alternate
pages, Figure 4-3 and Figure 4-4. To move to an alternate page press the alternate page soft-key.
The first alternate page is a rates page showing actual and target rates. The second alternate
page is a navigation page showing the vehicle position, speed and heading, and bounded area.
To switch from the Rates page to the Map page, press the Change Page soft-key.

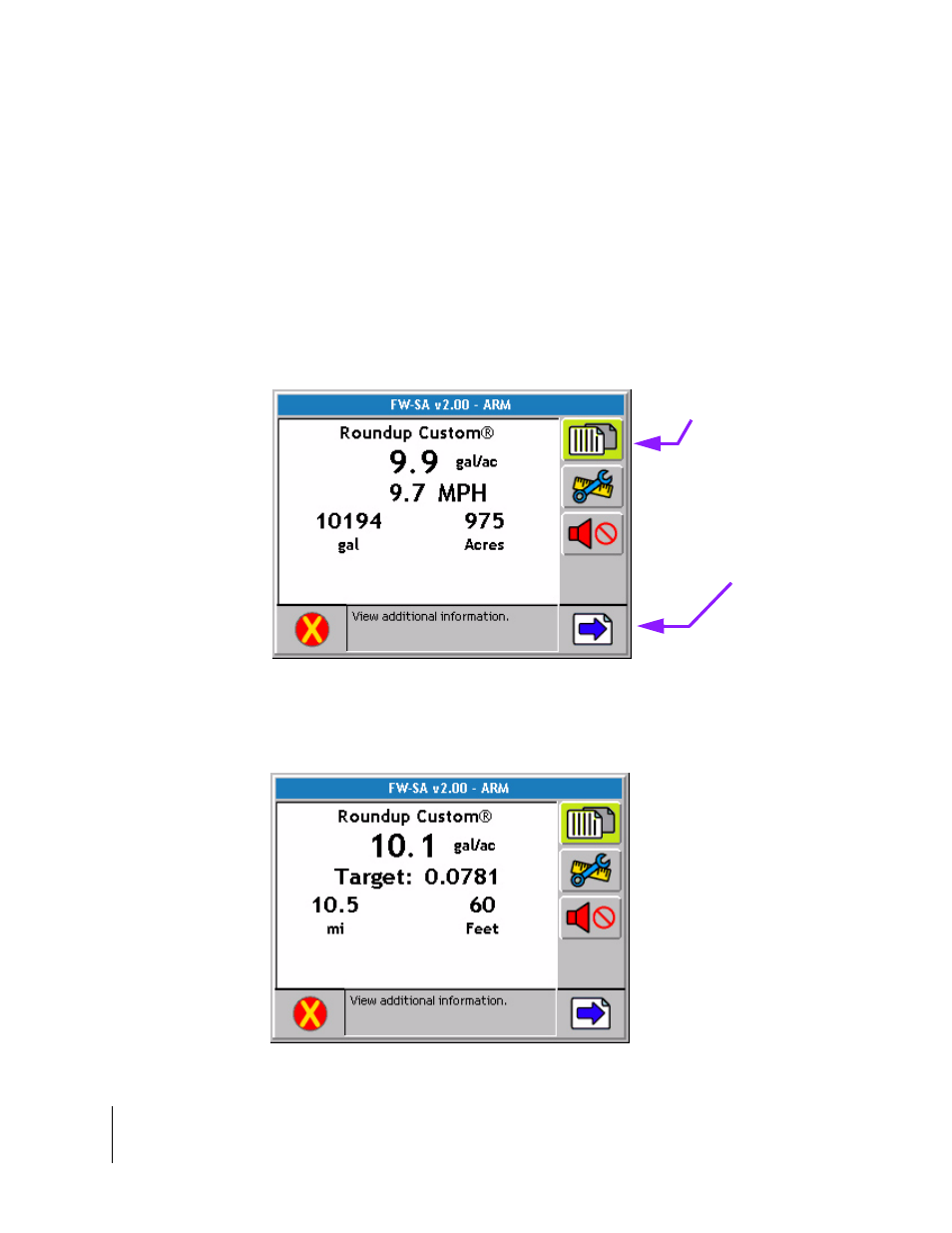

Figure 4-2: The Rates Page
Figure 4-3: The Alternate Rates Page
Change Page
Soft-key
Alternate Page
Soft-key
