4-16 Chapter 4 - Real-time Operation
Real-time Guidance Operation
Fieldware-SA for the Legacy 6000
Software Version 2.00
Headland Pattern Example
In this example the operator wants to apply two headland passes to the field and then switch to
Straight-Line mode to apply the remainder of the field. After the first headland circuit the operator
pulls parallel to the first circuit swath and begins applying the second circuit while being guided
parallel to the first.
Figure 4-12 shows the operator just finishing the first headland circuit. When the operator pulls
along side the first headland circuit, curved guidance automatically starts. The operator is now
able to drive the second headland circuit parallel to the first circuit by following the guidance infor-
mation displayed on the lightbar.

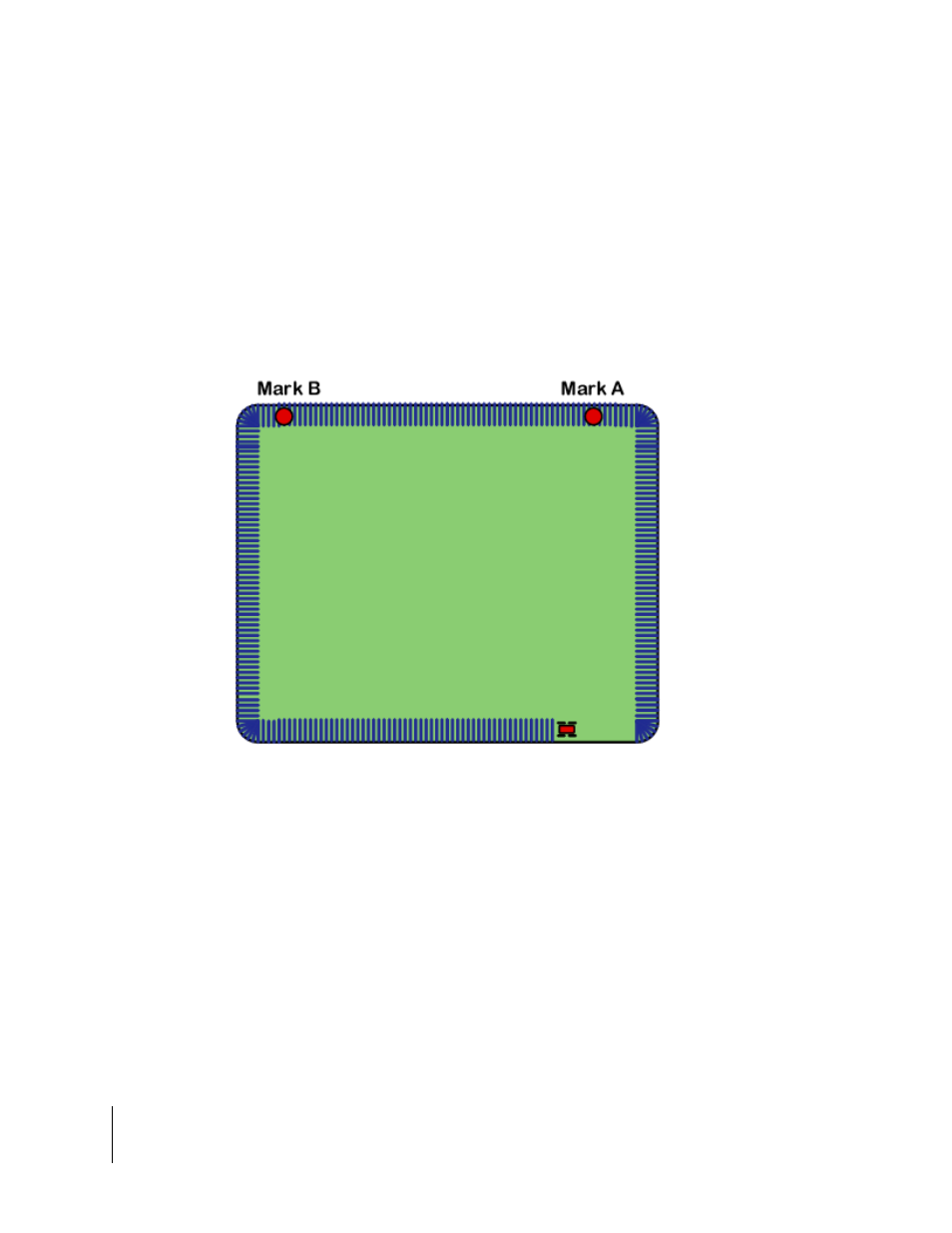

Figure 4-12: Completing the First Headland Circuit
