2-4 Chapter 2 - Getting Started
Software Overview
Fieldware-SA for the Legacy 6000
Software Version 2.00
Standard Pages
Three basic types of software pages are used in Fieldware - SA for the Legacy 6000: a Launcher
page (Figure 2-3), a Setup Menu page (Figure 2-4), and a Data Entry page (Figure 2-5). Each is
described in more detail below. Each of these page types has its own help window which displays
pertinent information about a button or area of the page that is highlighted. By learning how to use
each of these page types, Fieldware - SA software can be operated with confidence.
Launcher Page
A Launcher page typically contains several smaller applications (programs) that can be started
(launched). For example, any one of three other applications, System Setup, System Tools, or
Application Rate Management (ARM), can be started from the Main Launcher page (Figure 2-2).
The arrow keys on the console (Figure 2-1) allow the navigation of the launcher page. Help infor-
mation for a highlighted button or area is displayed in the white text window centered at the top of
the launcher page (Figure 2-3). To launch an application from a launcher page, either press the
console function key adjacent to the software button (Figure 2-1) or highlight a software button,
using the arrow keys, and press the Enter key. A highlighted button is denoted by the bright green
background color.
The launcher page below (Figure 2-3) is the System Setup launcher. Several setup applications,
such as Console and Controller setup, can be accessed from here. In this launcher page figure,
the highlighted software button is Console setup and the associated help text is displayed in the
help window at the top of the page.

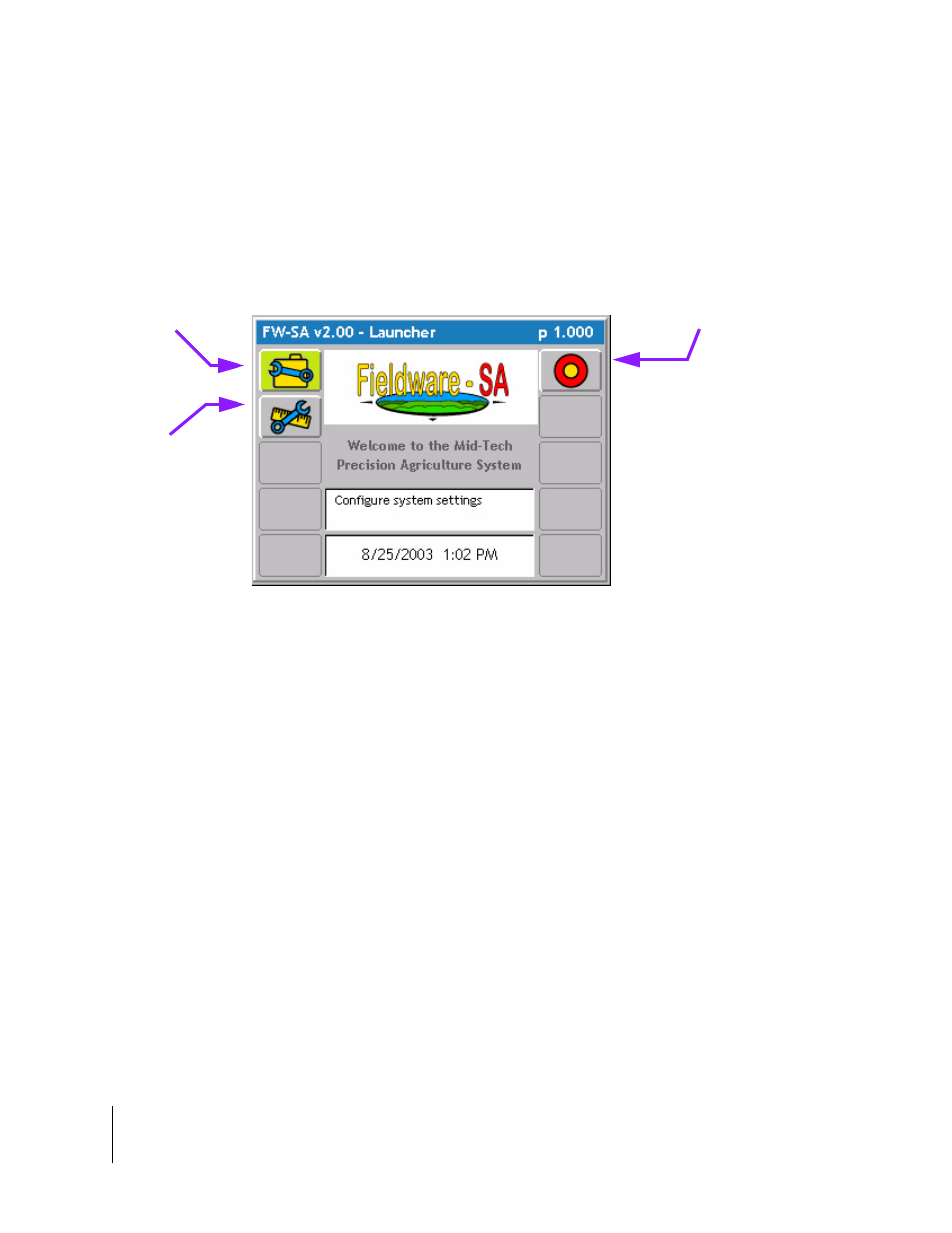

Figure 2-2: Main Launcher Page
Operate ARM System Setup
System Tools
