Page 21

Fieldware-SA for the Legacy 6000

Software Version 2.00

Chapter 2 - Getting Started 2-9

Software Overview

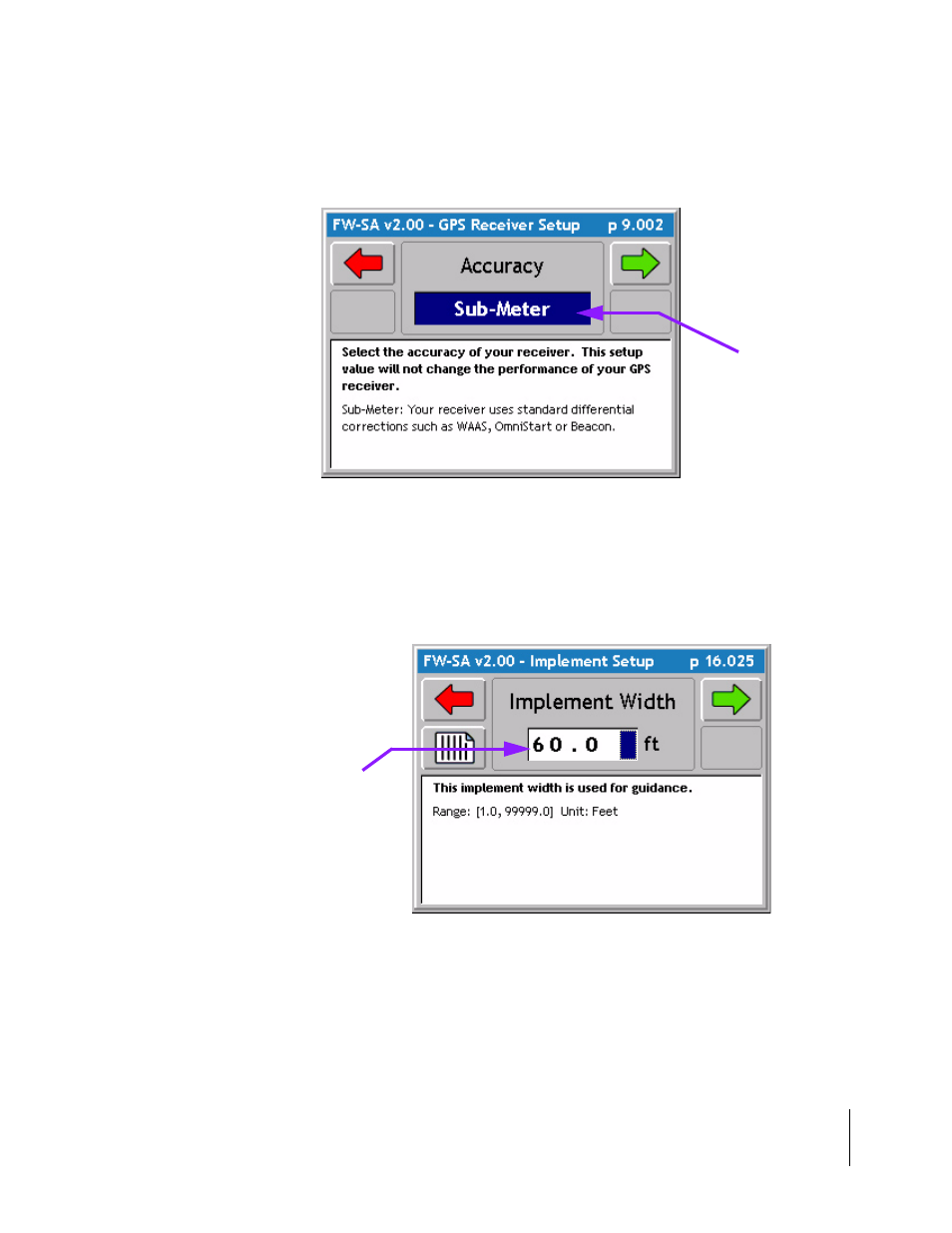

Figure 2-5: Example of Pick List Data Entry Page

Figure 2-6: Example of Alpha/Numeric Data Entry

Forward
Arrow Save &

Back Arrow
Exit & No Save

Setting description and help text window.

Name of Setup
Parameter

Left most character space
in the data entry dialog box.
