5-14 Chapter 5 - Fieldware FieldPilot
Fieldware-SA Real-Time Operation
Fieldware-SA for the Legacy 6000
Software Version 2.00
Real-time Soft-key Descriptions

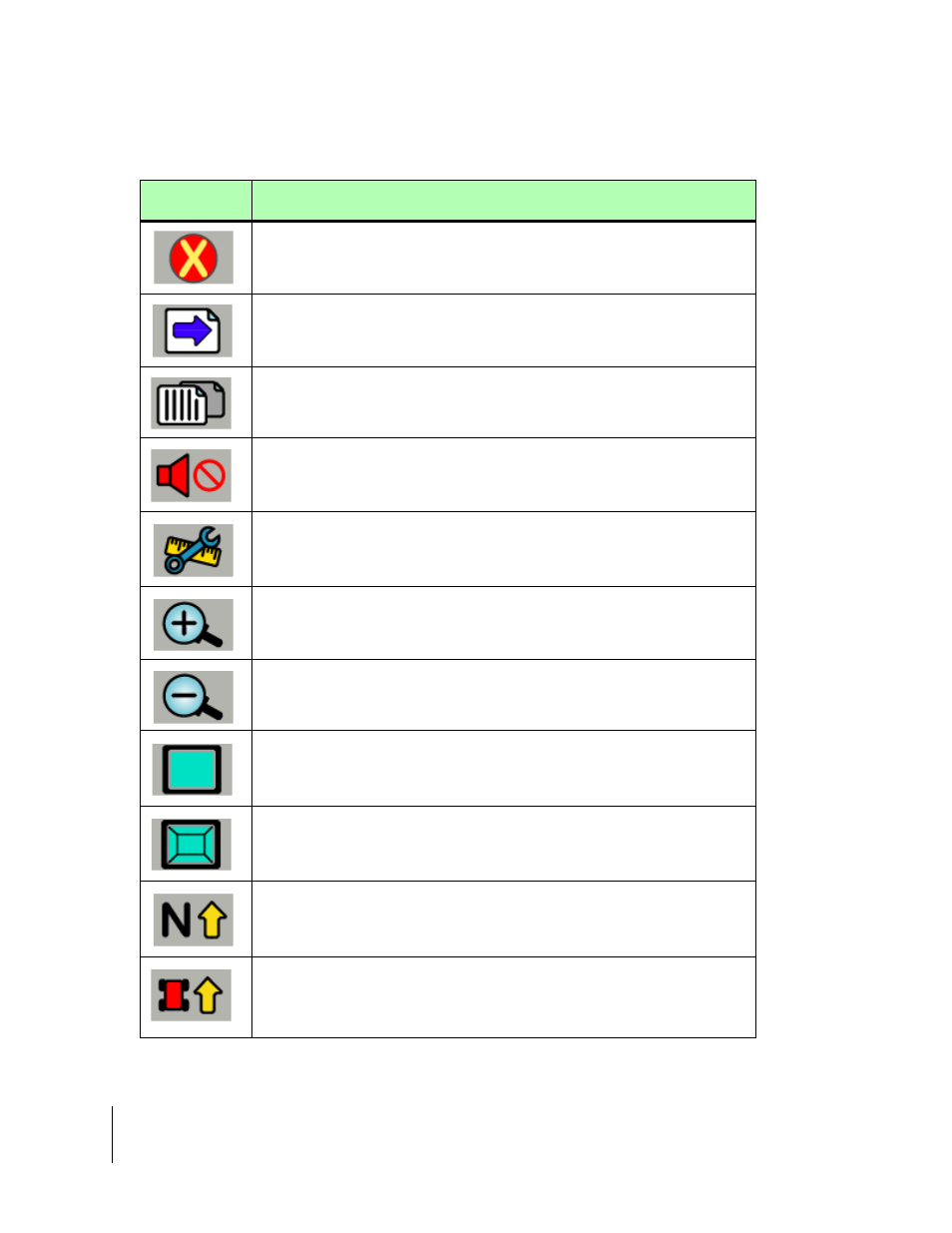

Soft-key Description
The Exit soft-key. When pressed, ARM exits out of the real-time process and
returns to the Main ARM Launcher page.
The Next Page soft-key. Pressing this soft-key alternates between the Map
page and the Rates page.
The Alternate Rates Page soft-key. Press to view additional product informa-
tion, such as sensor and monitor status and current implement width.
The Stop Alarm soft-key. Press to mute an alarm.
The Device Manager soft-key. When pressed, this soft-key launches Device
Manager diagnostics. This is used to trouble shoot most devices connected to
the console, including the console or lightbar, when running in real-time.
The Zoom In soft-key. When pressed, decreases the area displayed in the view
page. There are a total of 5 zoom levels.
The Zoom Out soft-key. When pressed, increases the area displayed in view
page. There are a total of 5 zoom levels.
The Full Screen soft-key. When pressed the entire Map page space is replaced
by the map view. This is useful to see more of the vehicle trajectory. Press any
key to return to the normal view page.
The Partial Screen soft-key. When the Full Screen Soft-key is pressed, the
soft-key graphics change to the Partial Screen. When pressed, the console dis-
play area contains the map view and the right-hand mapping button column.
The North Up View soft-key. This Map page display option keeps North at the
top of the view page. When pressed this soft-key changes to the COG View
soft-key.
The Course on Ground (COG) View soft-key. This view page option keeps the
vehicle stationary in the view page with the heading (course) of the vehicle at
the top of the view page. When pressed this soft-key changes to the North Up
View soft-key.
Table 5-4: Real time Soft-key Description
