Chapter 2 - Getting Started 2-31
System Setup
Controller Setup
The type of external rate controller to be connected to the Legacy 6000 console is selected in Con-
troller Setup. A complete list of compatible external rate controllers can be found in Table 2-9.
To access Controller Setup from the Main Launcher page (Figure 2-2), select System Setup (Fig-
ure 2-11) / Controller Setup (Figure 2-26).
All Controller Setup parameters are listed in Table 2-8. To change any of the Controller settings,
highlight the setting name listed in the center column of the Controller Setup page and press Enter.
The Setup Wizard can also be used to walk through and change any or all of the settings. When
done making changes, press the Forward Arrow to save and exit Controller Setup. Press the Back
Arrow to exit without saving any changes

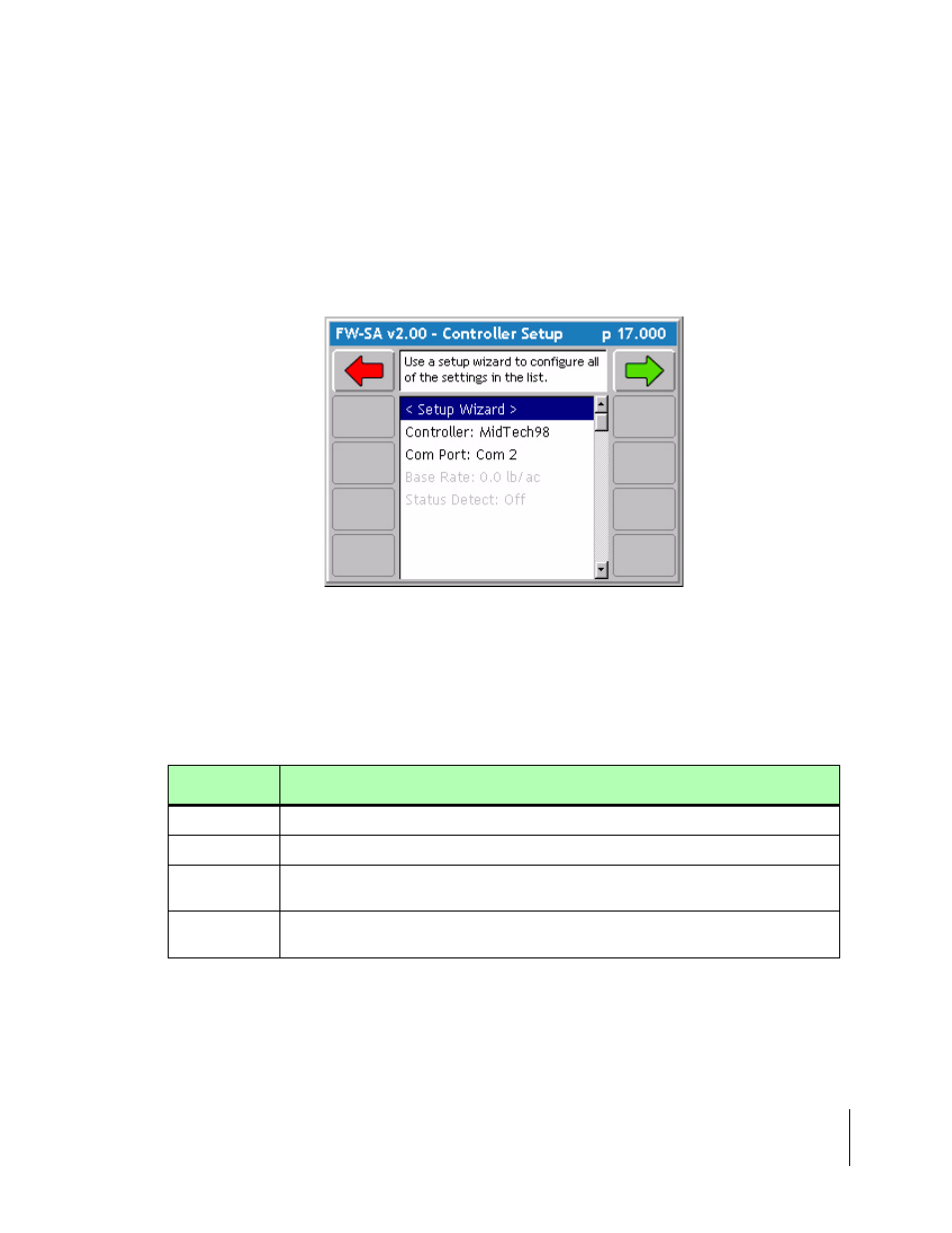

Figure 2-26: The Controller Setup Page
Setting Description
Controller Defines the type of compatible rate controller to be connected to the Legacy 6000.
Com Port Defines the Legacy 6000 com port the rate controller is connected to.
Base Rate Defines the base rate required for a Rawson Controller. Not active unless the Rawson
controller is selected above.
Status Detect Defines the Status Detect state. Active when the Rawson controller or None is selected.
Must be set to ON if using the Mid-Tech Boom Sense cable.
Table 2-8: Controller Setup Settings
