TeeJet Fieldware SA 2.0 for Legacy 6000 - Manual (Page 79)

Fieldware-SA for the Legacy 6000
Software Version 2.00
Chapter 3 - Real-time Setup 3-23
Running ARM Setup
Selecting / Entering the Boundary File
The Boundary file name defaults to the Job name (Figure 3-25) with file extension (.BND). If
desired, a new Boundary file name can be entered, using the arrow keys on the Legacy 6000 con-
sole. If an existing Boundary file is desired, press the Folder button. The Folder button brings up a
filename dialog from which an existing Boundary file can be selected. When the desired file has
been selected press the Forward Arrow to return to the Boundary file wizard page. Press the For-
ward Arrow again to advance to the next wizard page.
Enter the Collection Interval

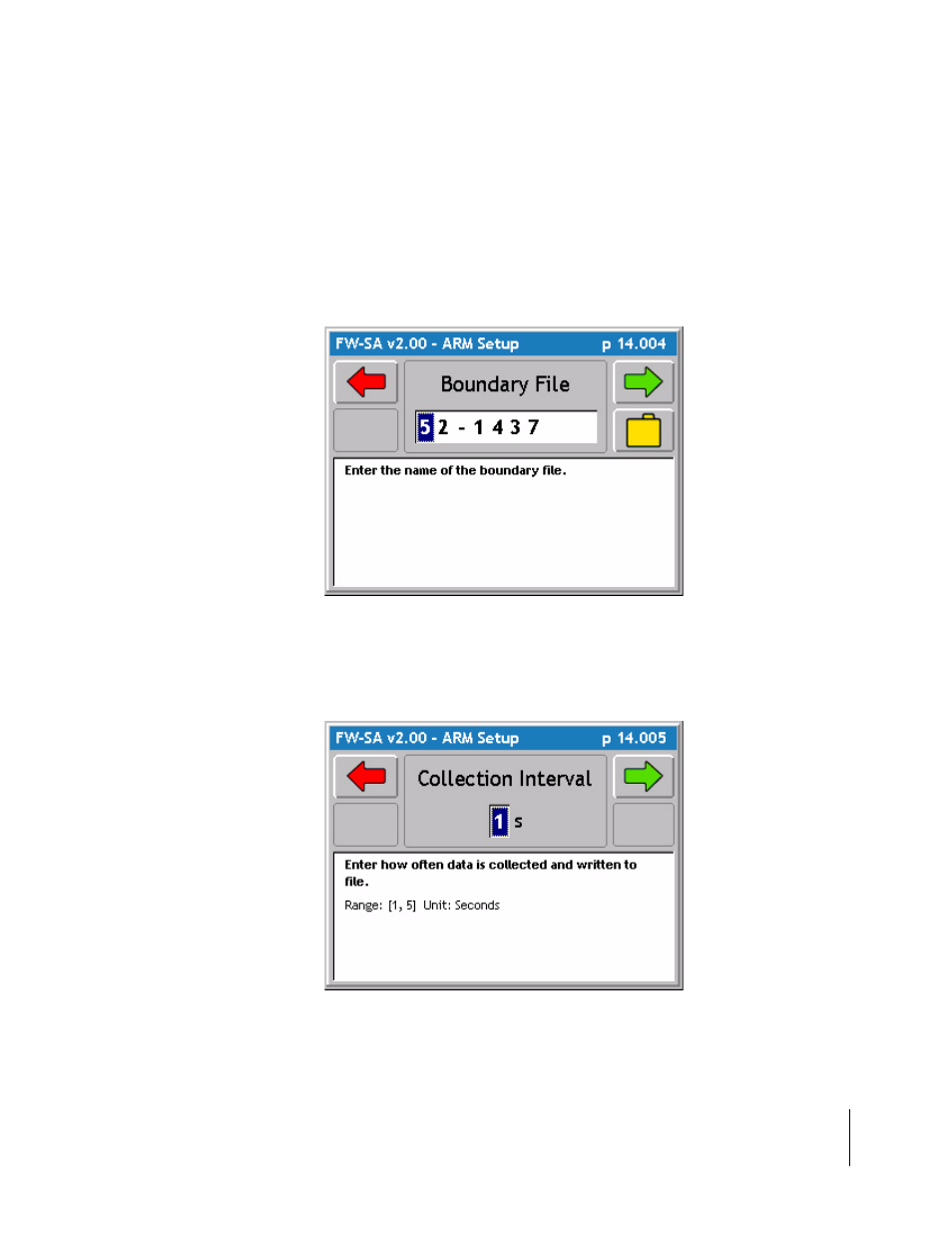

Figure 3-25: The ARM Setup Boundary File Page
Figure 3-26: The ARM Setup Collection Interval Page
