Fieldware-SA for the Legacy 6000
Software Version 2.00
Chapter 2 - Getting Started 2-23
System Setup
The Offset Distance Y
When entering the Y Offset Direction, it is necessary to enter the Y Offset Distance. This is the dis-
tance from the GPS antenna, along the vehicle center line, to the swath. Refer to “The Vehicle
Coordinate System” on page 2-19 for a description of the offset directions and distances. To obtain
the most accurate application files and maps, we recommend that this distance be measured and
not estimated or guessed.
When the correct direction is entered, press the Forward Arrow button to move to the next setup
page.

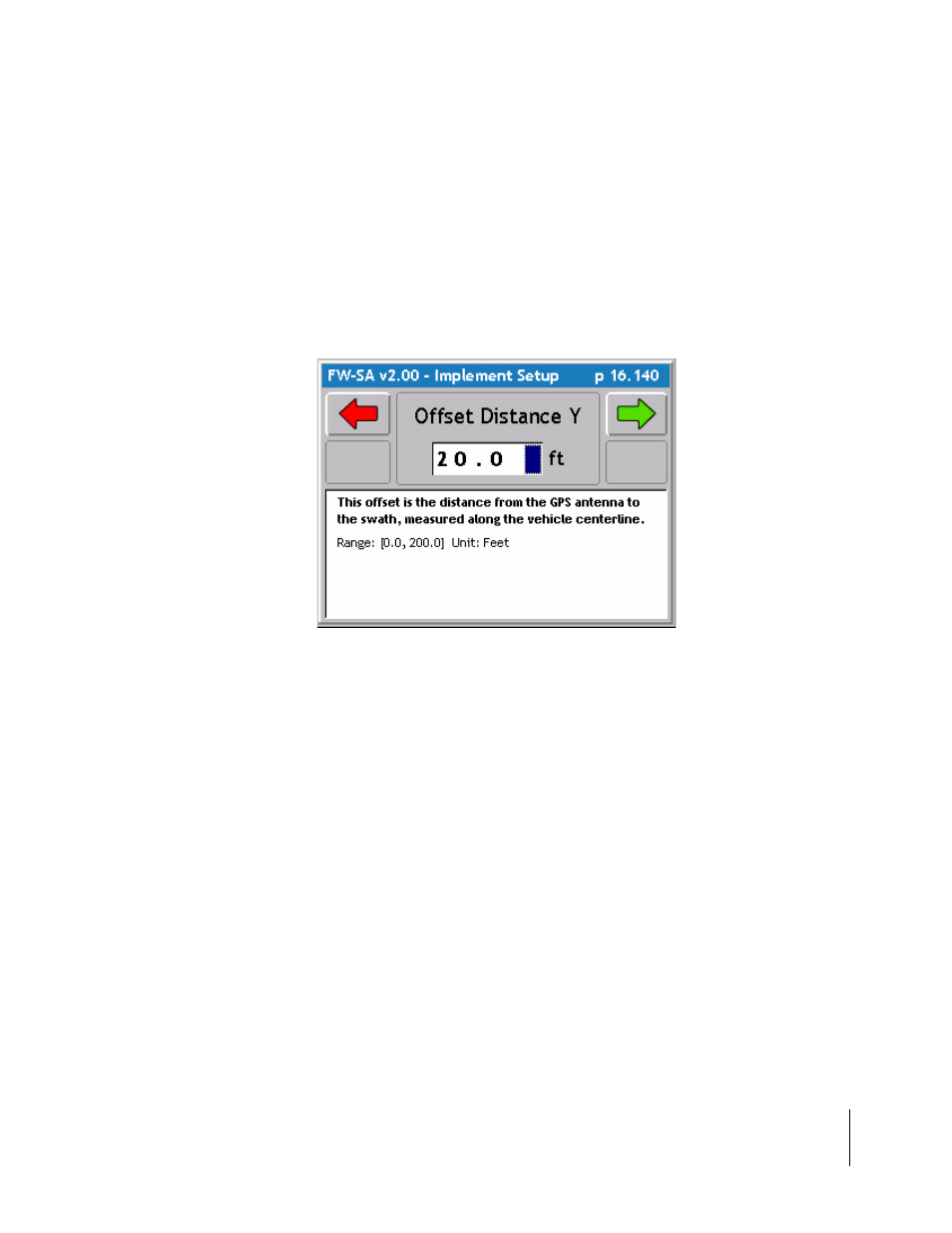

Figure 2-15: The Offset Distance Y Page
