4-24 Chapter 4 - Real-time Operation
Real-time Guidance Operation
Fieldware-SA for the Legacy 6000
Software Version 2.00
Step 3: Establish First Interior Pass
When all of the headland passes have been completed, and the Headland Off button has been
pressed, start applying the first interior pass. Because the Ignore Headland button has not been
pressed, the headland trajectory can still be used for guidance. Pull along side any headland tra-
jectory and begin applying, the lightbar should begin to display guidance information. Figure 4-20
shows the vehicle applying the first interior pass.

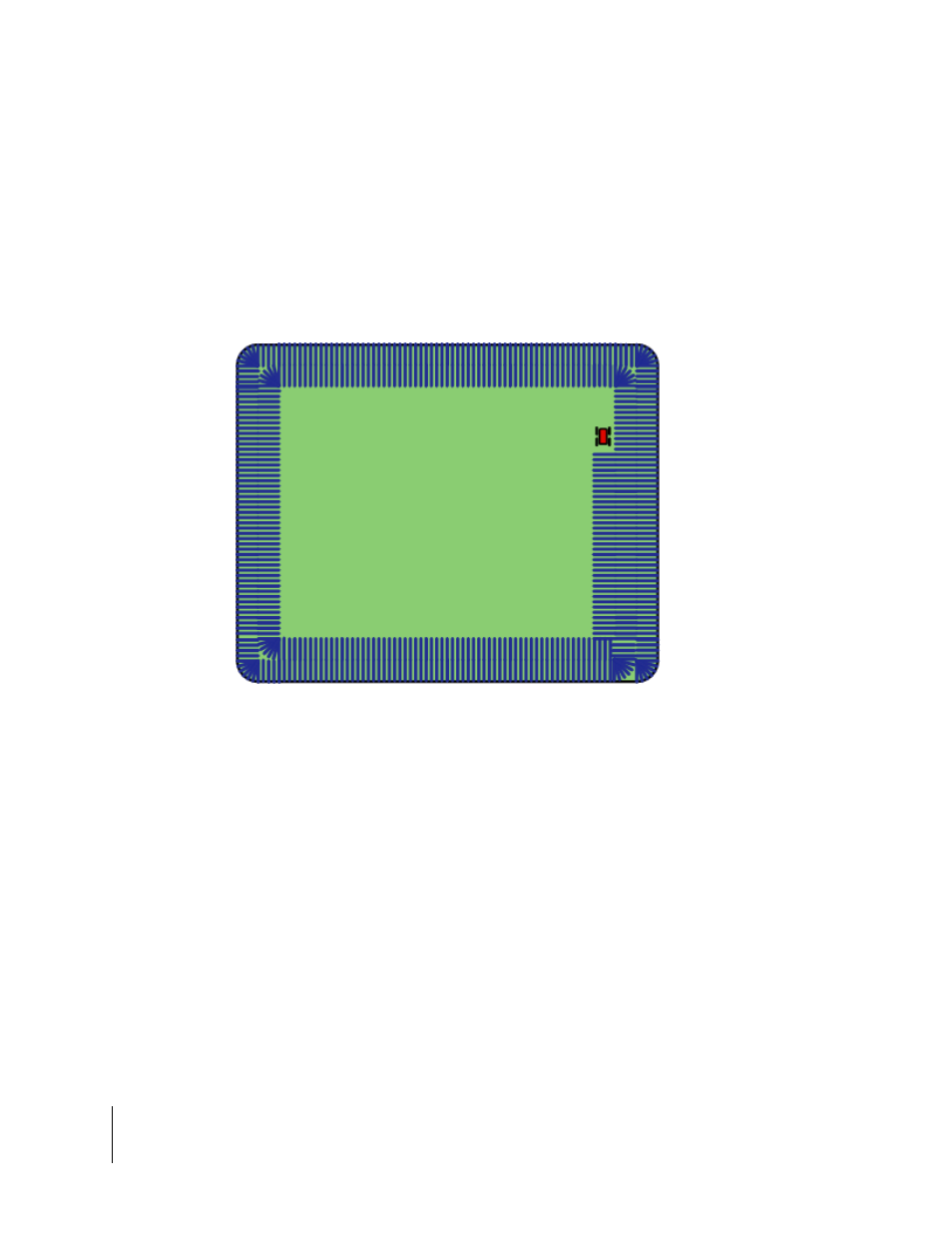

Figure 4-20: Applying the First Interior Pass
