System Setup
Running Implement Setup with a Rate Controller
When operating Fieldware - SA with an external rate controller interfaced to the console, Imple-
ment setup is reduced to Implement width, Y-Axis Direction and Y-Axis Distance. Boom section
setup is done on the rate controller connected to the Legacy console.
Entering the Implement Width
The first page in the Implement Setup process is the implement width (Figure 2-13). This width is
used for guidance purposes and can be considered to be the distance between guidelines. This
width is typically determined by the vehicle swath width or spread width. Setting the Implement
width slightly smaller than the actual width reduces skips. Setting the Implement width slightly
larger than the actual swath width reduces overlap.
The Implement Width page also contains a Review Configuration button. Pressing this button
brings up a page that details the current Implement configuration (Figure 2-17).

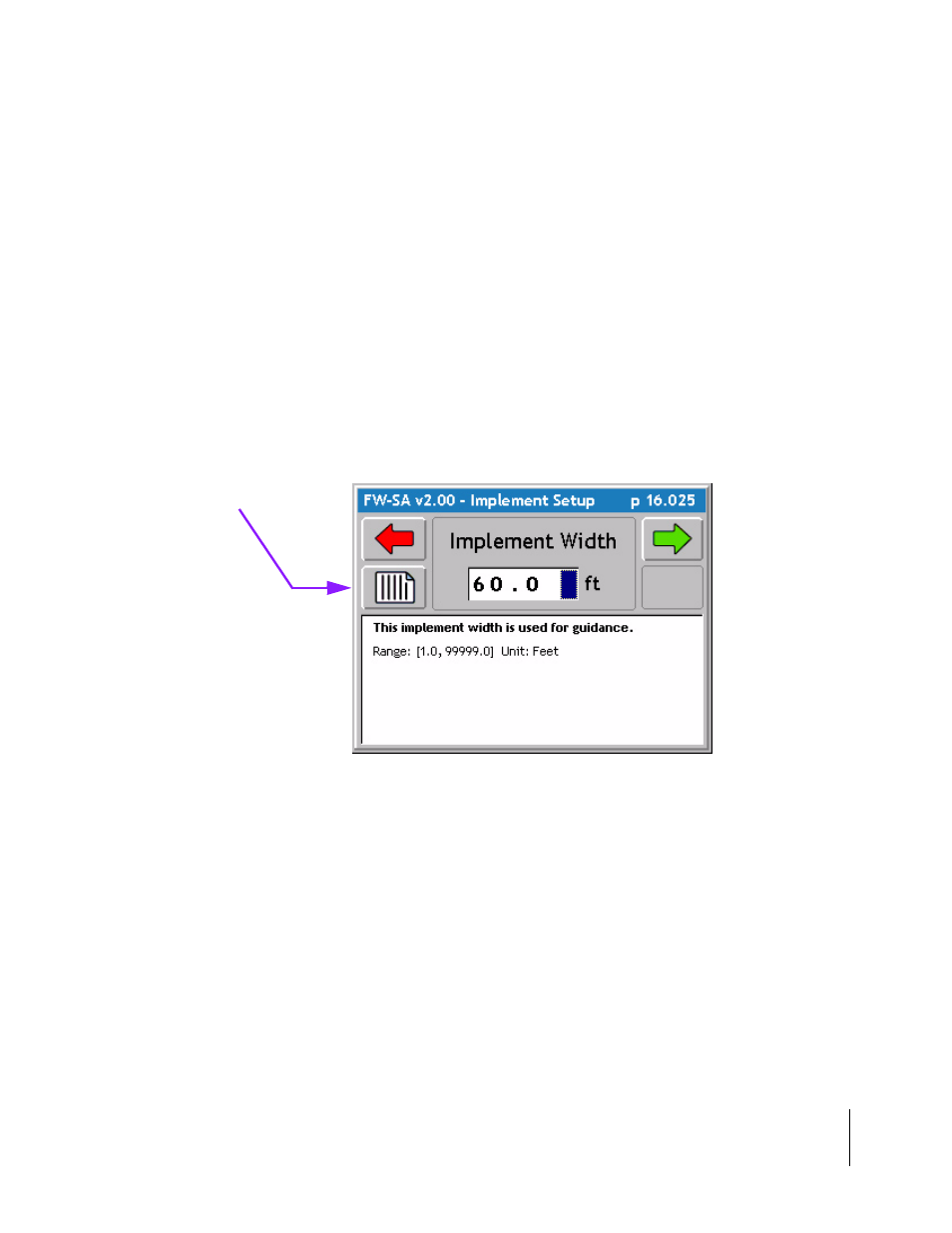

Figure 2-13: The Implement Width Page
Review Configuration
Button
