The Circle Pivot Guidance Pattern
This section describes how to operate the Circle Pivot pattern. The Circle Pivot pattern is used
when the operator wants to apply product in a center pivot field while being guided along a circular
guideline that matches the center pivot radius.
Circle Pivot mode operates very similar to the Straight-Line mode. The operator marks an A point,
drives along the arc that the pivot would create, a wheel track is a good guide, then marks a B
point. When the B point is marked, a circular guideline appears in the Map page and the operator
is guided along this circular guideline. As the operator completes one circular pass and moves in
either direction (left or right) to the next guideline, the software automatically creates the next cir-
cular guideline.

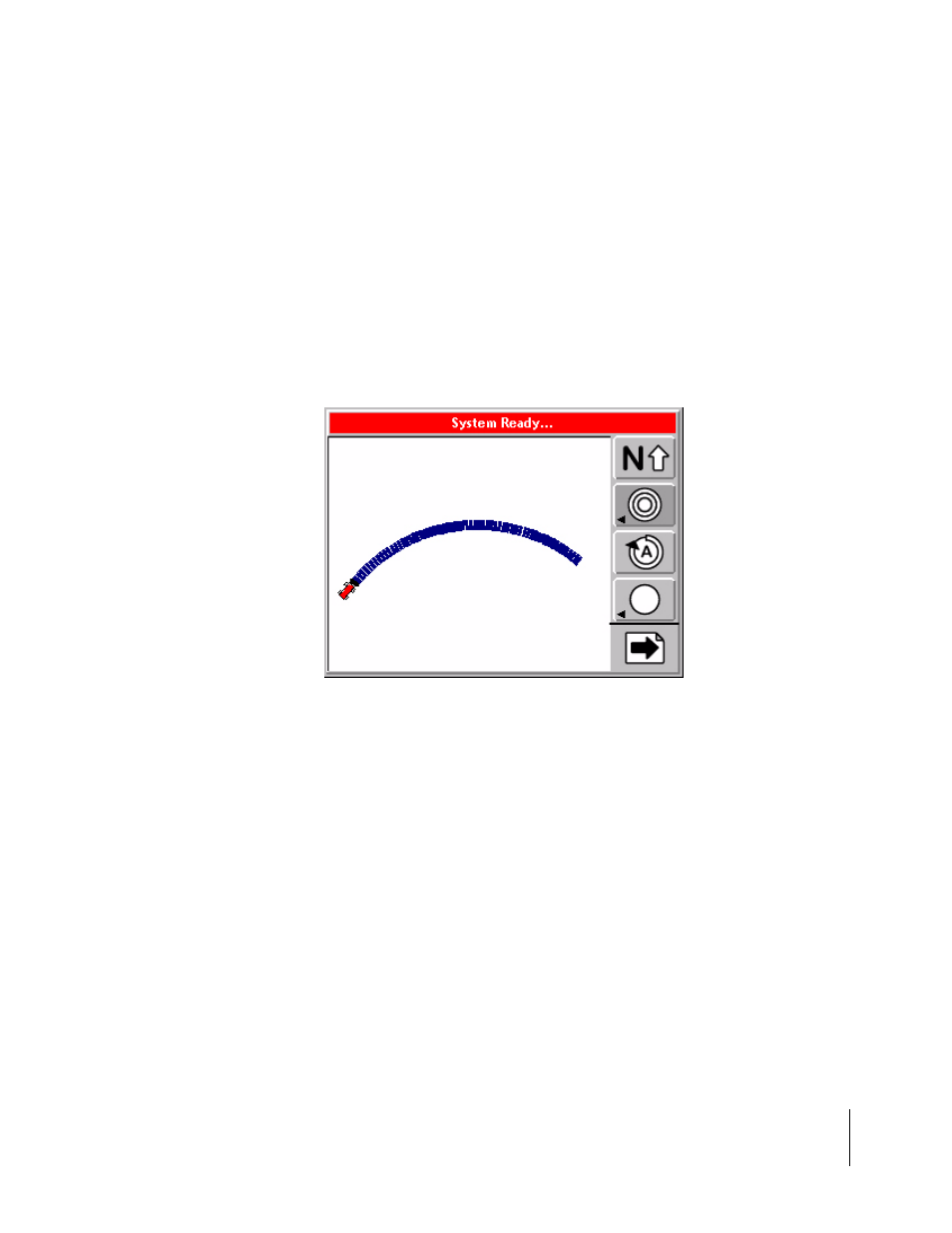

Figure 4-22: Operating in Circle Pivot Pattern
