Figure 4-13: starting the second headland pass – TeeJet Fieldware SA 2.0 for Legacy 6000 User Manual
Page 109
Fieldware-SA for the Legacy 6000
Software Version 2.00
Chapter 4 - Real-time Operation 4-17
Real-time Guidance Operation
Figure 4-13 shows the operator being guided along side the initial headland circuit. The lightbar
automatically supplies guidance information. For more details on how to interpret curved guidance
information on the lightbar, see Lightbar Curved Guidance Graphics on page 4-32.

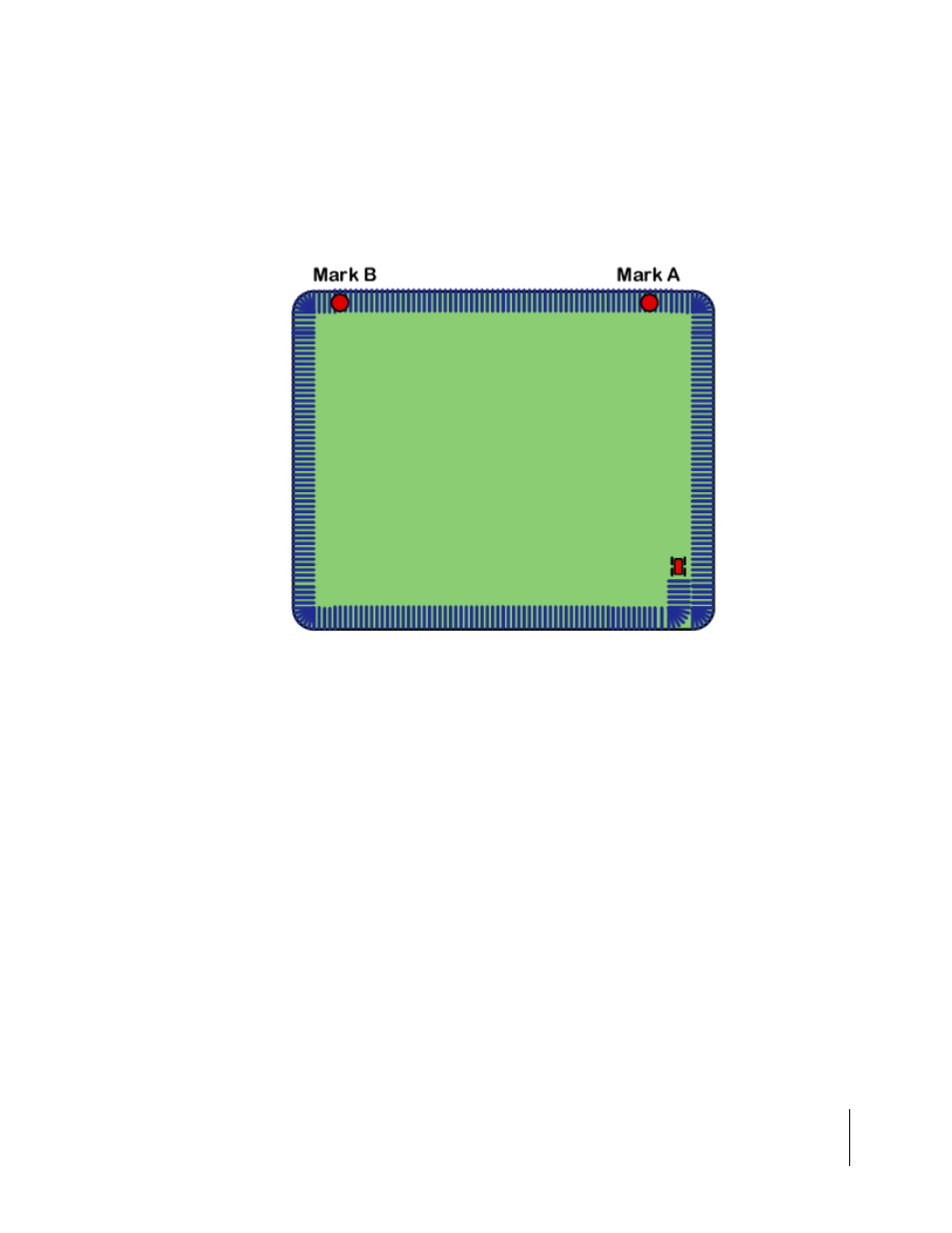

Figure 4-13: Starting the Second Headland Pass
