Page 86

HI-3000 Series

Operation and Installation

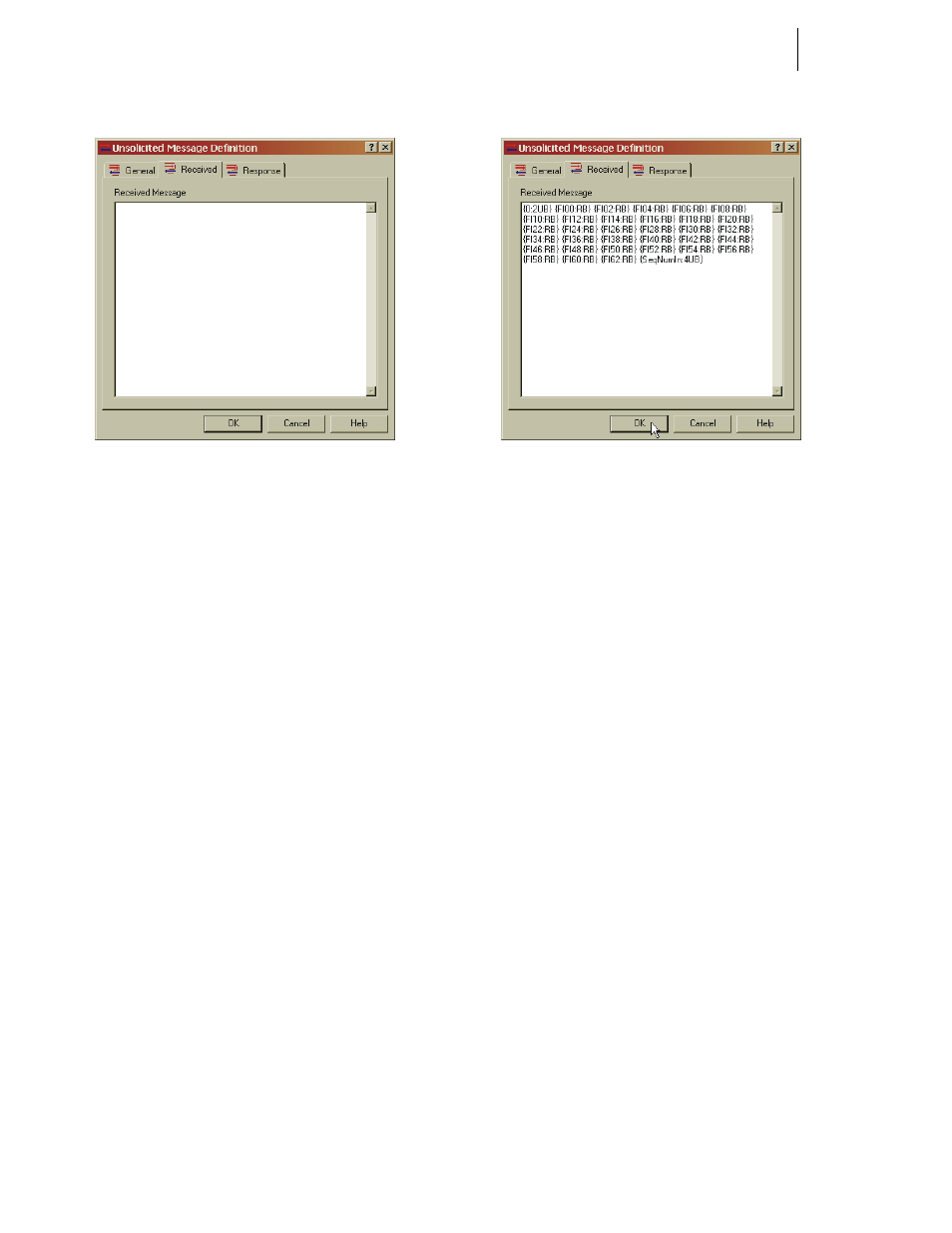

FIG. 227: UNSOLICITED MESSAGE DEFINITION/

RECEIVED PAGE

Step 7. Click in the text field and enter the following infor-

mation: (See Fig. 227)

•

On the Information CD that you received
with your instrument, you should have two
(2) OPC DPD files. Make sure that you
have copied these DPD files into the Des-
cartes Omniserver folder as described
above. If you don’t see the information in
the text field download the files from the
Web Site Download section. See down-
loading instructions from the Configura-
tion of Host Message above.

•

If you do not have access to the Web Site
Download or the CD then copy the infor-
mation below into the Received Message
text field. (See Fig. 278)

{0:2UB}
{FI00:4RB}{FI02:4RB}{FI04:4RB}{FI06:4RB}{FI08:4R
B}{FI10:4RB}{FI12:4RB}{FI14:4RB}{FI16:4RB}{FI18:4
RB}{FI20:4RB}{FI22:4RB}{FI24:4RB}{FI26:4RB}{FI28:
4RB}{FI30:4RB}{FI32:4RB}{FI34:4RB}{FI36:4RB}{FI3
8:4RB}{FI40:4RB}{FI42:4RB}{FI44:4RB}{FI46:4RB}{FI
48:4RB}{FI50:4RB}{FI52:4RB}{FI54:4RB}{FI56:4RB}{
FI58:4RB}{FI60:4RB}{FI62:4RB}{SeqNumIn:4UB}

FIG. 228: UNSOLICITED MESSAGE DEFINITION/

RECEIVED MESSAGE

Step 8. Click on the OK button to save the configuration.

(See Fig. 228)

Setting Up OPC Communication with a Client

About OPC Clients

There are several versions of OPC Clients on the market
today. We can’t possibly provide instructions for every client
however the setup is pretty much the same. We have selected

Wonderware

for our tutorial. Wonderware

is the most

popular Factory Suite software currently on the market. If
you are looking for another OPC Client, we recommend
going to the OPC Foundation Web Site and checking their
list of certified products. In addition, on the OPC Foundation
Site there is ample information about the OPC protocol to
answer any questions you may have that are beyond the
scope of this manual.

NOTE:

Wonderware

is a registered trademark of the

Naiveness Corporation.

Step 1. If you haven’t installed Wonderware InTouch,

install it now.

NOTE:

Windows

2000, Service Pak 3 or Windows

Service Pak 1 are required. Windows

is a regis-

tered trademark of the Microsoft Corporation.

Step 2. Start the OPC Server (Omniserver™) from your PC

desktop. The OPC Server must be running when
configuring Wonderware.
