Step 19. Click in the Item text field.
Step 20. This time enter “FO00”.
NOTE: The first O is the letter O. The second and third
0’s are the number zero “0”. Be careful not to
mix them up. You must also enter a two digit
value.
Step 21. Enter a description of the Item. In our example we
entered “float, written to unit” without the quota-
tion marks.
Step 22. Click on the Data Type pull down menu.
Step 23. Click on Real.
Step 24. Click in the check box next to “Item is Read Only”.
Step 25. Click in the check box next to “Item is Enabled”.
There now should be a check in each box.
Step 26. Click on the Initial Value tab.
Step 27. The Initial Value page appears. (See Fig. 207)

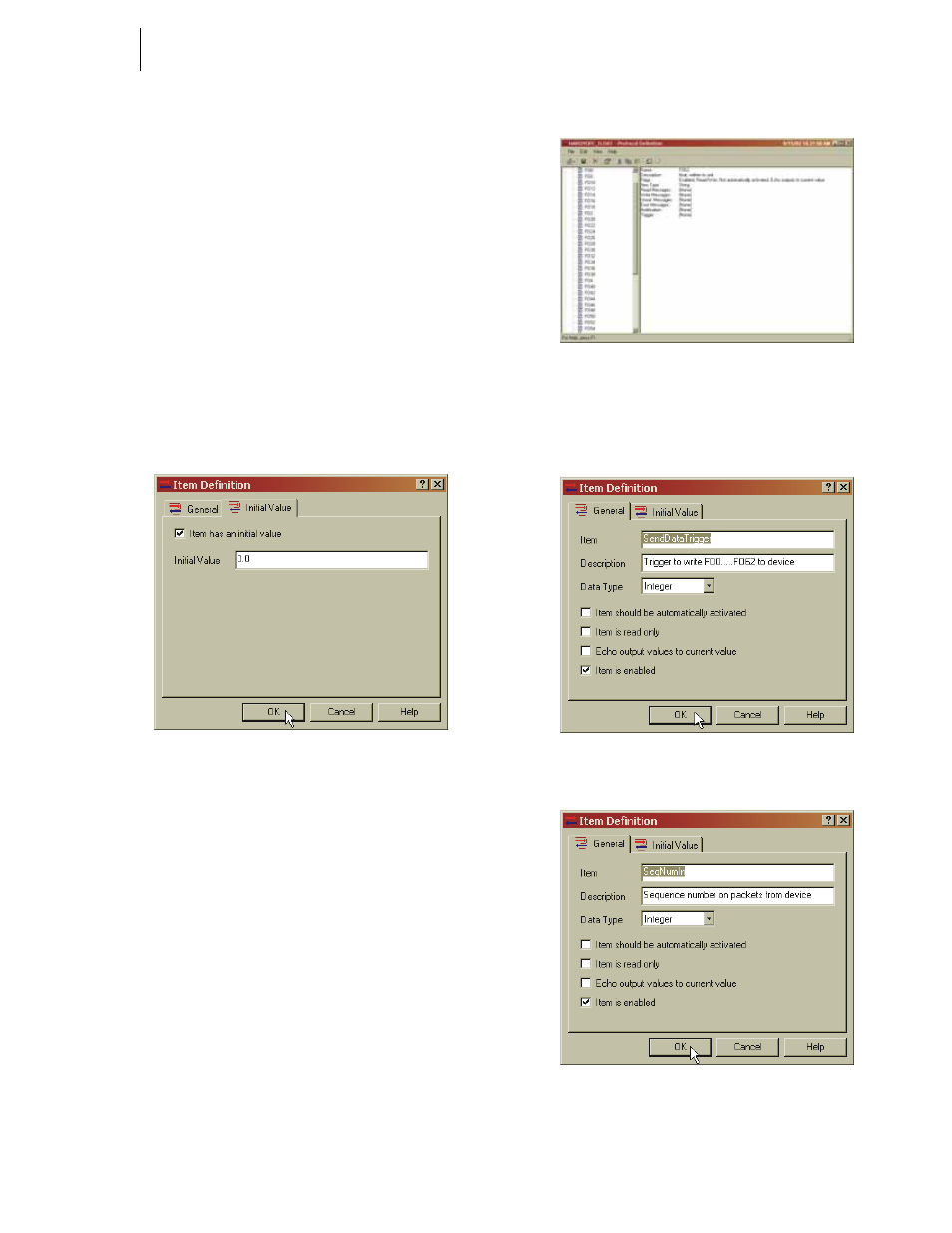

FIG. 207: ITEM DEFINITION
Step 28. Click in the check box next to “Item has an initial
value”.
Step 29. Click in the Initial Value text field and enter the ini-
tial value you want to use for this item. We entered
0.0 for Item FO00.
Step 30. Click on the OK button to select the item definition.
Step 31. Continue the item definition process until you have
entered all the items (FO00...FO62). (See Fig. 208)
FIG. 208: PROTOCOL PAGE/ITEM LIST ENTERED
Step 32. Repeat the Item Definition three more times and
enter the information in Figs. 209, 210, 211.
FIG. 209: ITEM DEFINITION/SEND DATA TRIGGER
FIG. 210: ITEM DEFINITION/SEQUENCE NUMBER
IN
