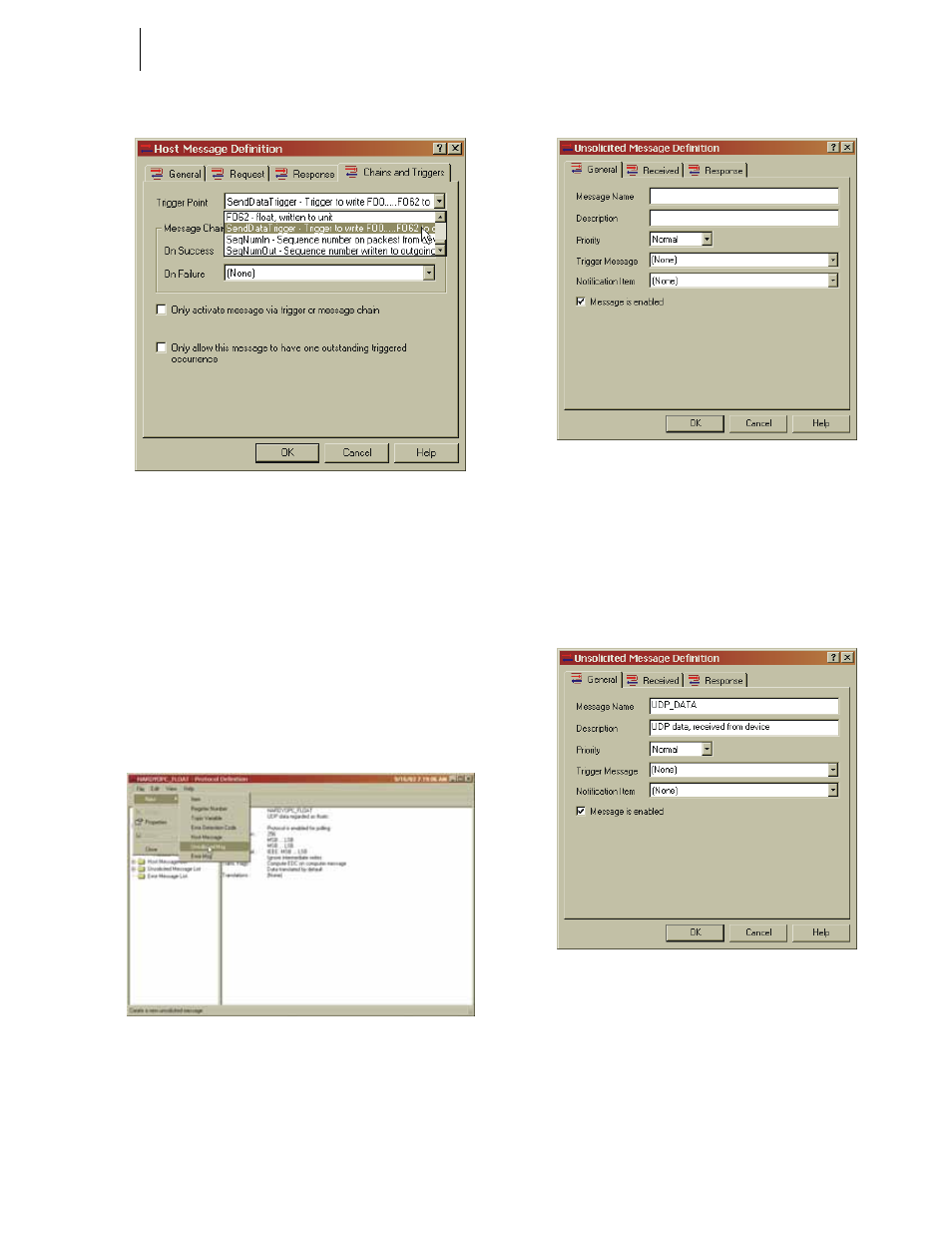

FIG. 223: CHAINS AND TRIGGERS PAGE
Step 18. Click on the Trigger Point pull down list.
Step 19. Click on “SendDataTrigger - Trigger to write
FO00...FO62 to” to select this Trigger Point (See
Fig. 223)
Step 20. Click on the OK button to save the selections.
Unsolicited Message Definition
Step 1. Click on Unsolicited Messages. (See Fig. 224) The
Unsolicited Message Definition dialog box appears.
(See Fig. 225)
FIG. 224: PROTOCOL DEFINITION/SELECTING
UNSOLICITED MESSAGES
FIG. 225: UNSOLICITED MESSAGE DEFINITION
PAGE
Step 2. Click in the Message Name text field.
Step 3. Enter “UDP_DATA”.
Step 4. Click in the Description text field.
Step 5. Enter “UDP data, received from device” (See Fig.
226)
FIG. 226: UNSOLICITED MESSAGE DEFINITION/
NAME AND DESCRIPTION ENTERED
Step 6. Click on the Received Tab. The Received page
appears. (See Fig. 227)
