Network
Installation

Building a Scanlist in RSNetWorx

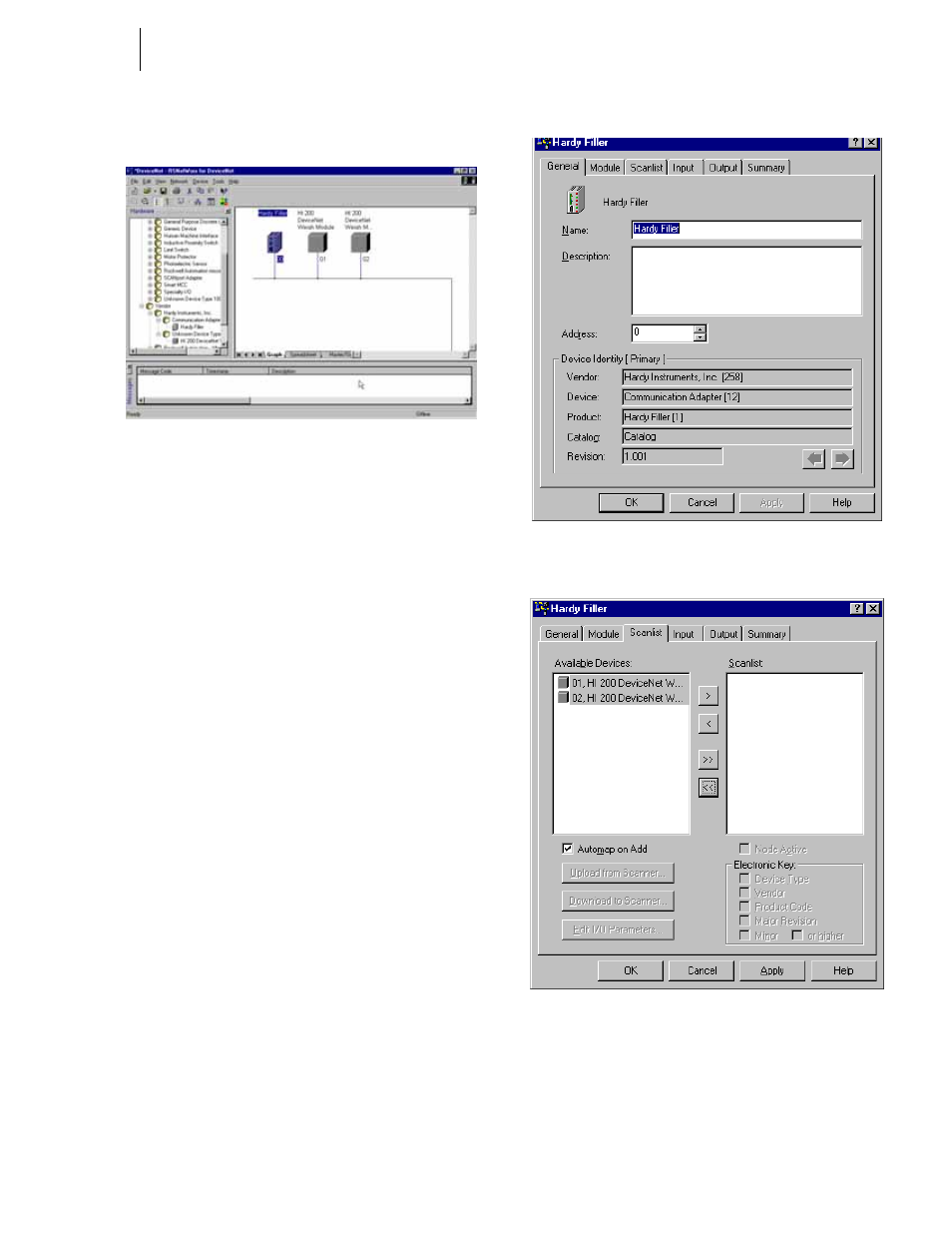

FIG. 126: GRAPH OF NETWORKED MODULES

Step 1. Double Click on the Hardy Filler Icon. (See Fig.

126) The Hardy Filler Property List appears. (See
Fig. 127) In Properties, you construct the Scanlist,
which includes the devices that will be scanned on
the network.

Step 2. Click on the Scanlist tab. The Scanlist page

appears. (See Fig. 128)

NOTE:

It is useful to know what you want to configure/
map at this point of the setup. See Operating the
Instrument Via DeviceNet/Mapping Section in the
Individual HI 3000 Series manual(s) for this
information.

FIG. 127: HARDY FILLER PROPERTIES LIST

FIG. 128: SCANLIST PAGE/AVAILABLE DEVICES

Step 3. Notice in the Available Devices field there are two

HI 200 DeviceNet Weigh Modules.

Step 4. Click on the device(s) you want to appear on the

scan list.
