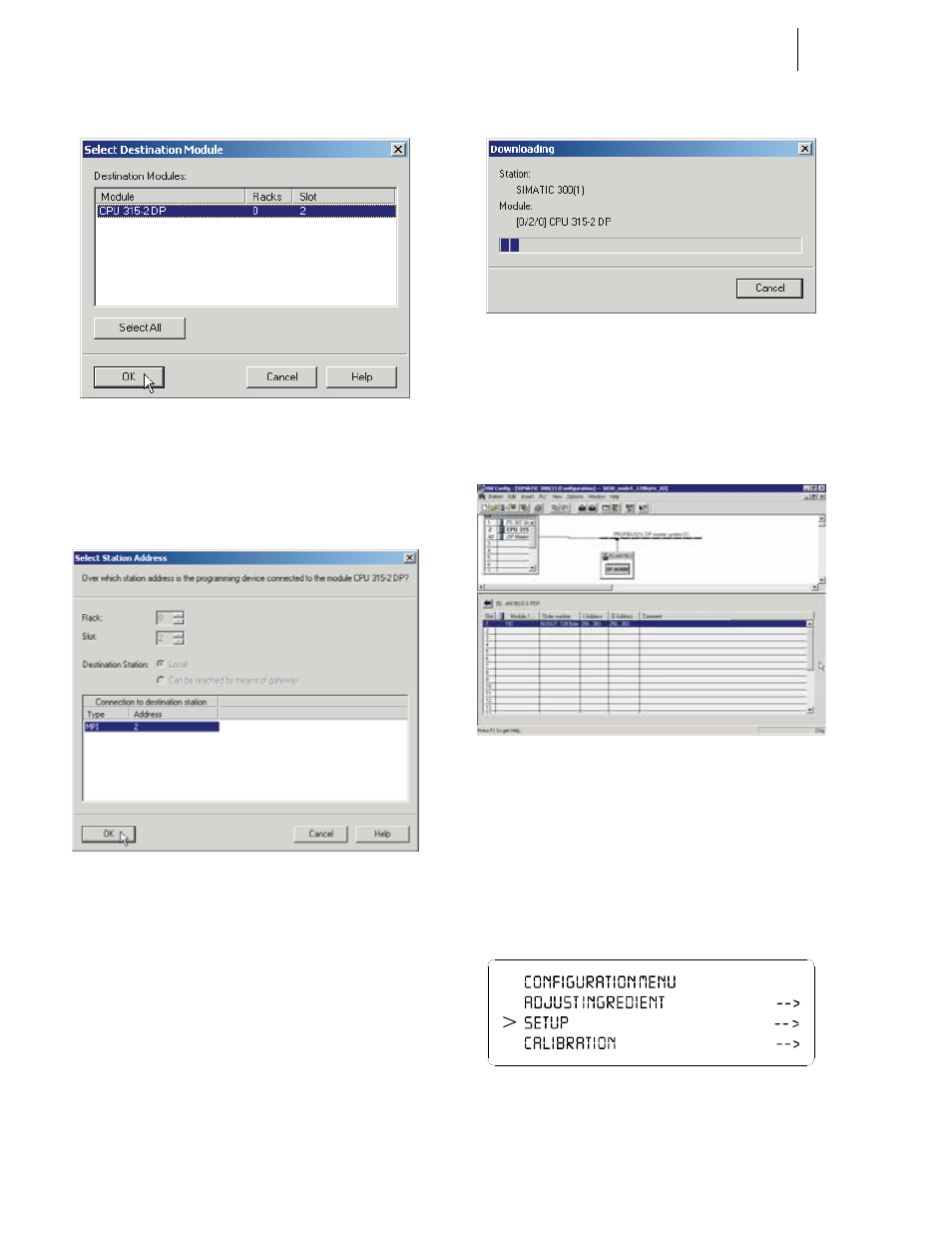

FIG. 146: SELECT DESTINATION MODULE

DIALOG BOX

Step 13. Click on OK. The Select Station Address Dialog

box appears. (See Fig. 147)

FIG. 147: SELECT STATION ADDRESS DIALOG

BOX

Step 14. Click on OK. A prompt appears indicating that the

Step 7 is downloading the configuration to the PLC.
(See Fig. 148)

FIG. 148: DOWNLOADING CONFIGURATION

PROMPT

Step 15. When the download is complete the HW Config

dialog box should look something like this. (See
Fig. 149)

FIG. 149: INITIALIZATION COMPLETE

Step 16. Initialization is complete.

Selecting the Profibus Node Address from the
Front Panel

Step 1. At the front panel click on the Setup/3 button. The

Configuration Menu appears. (See Fig. 150)

FIG. 150: CONFIGURATION MENU/SELECTING

SETUP
