HI-3000 Series 64
Operation and Installation

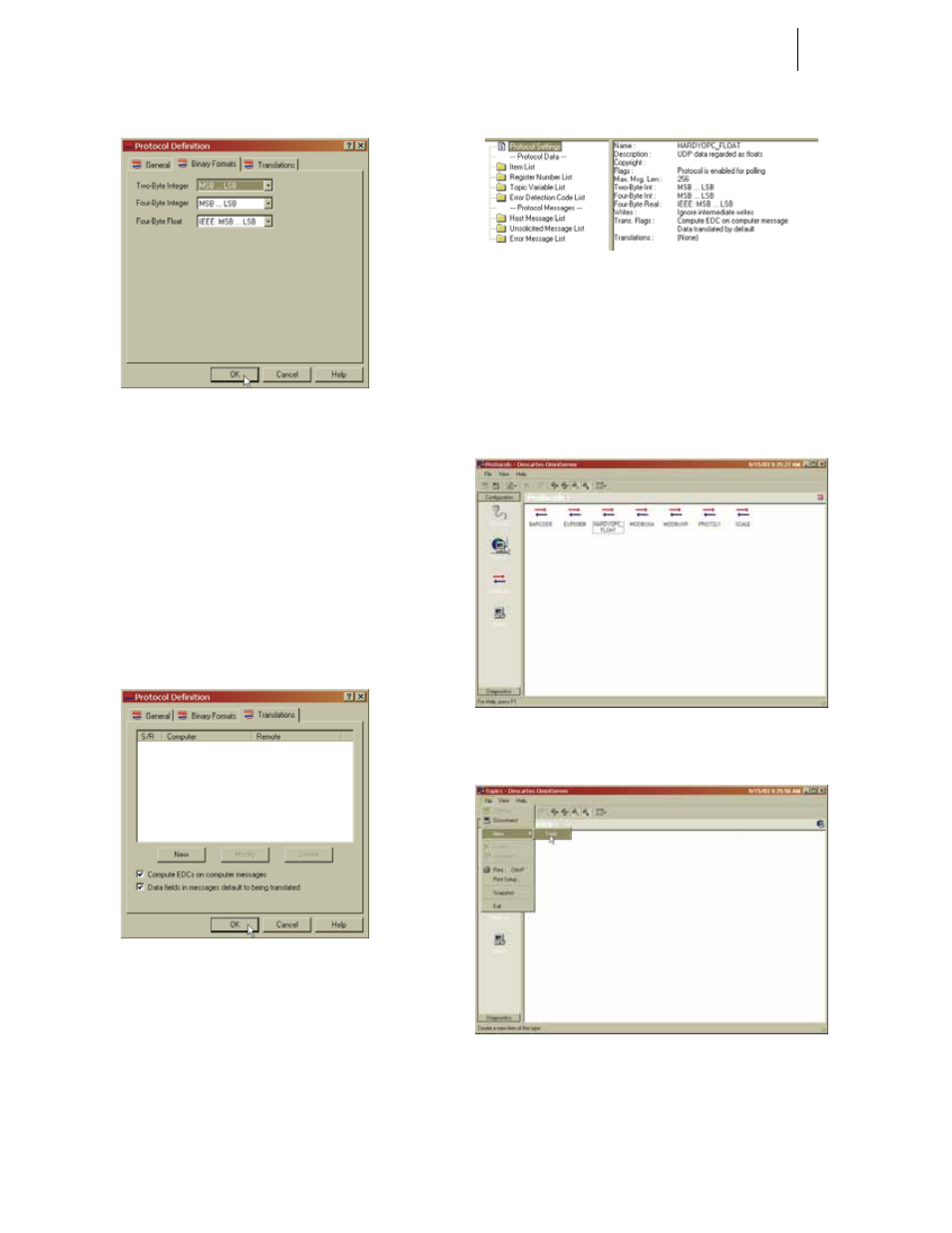

FIG. 194: PROTOCOL DEFINITION/BINARY
FORMATS PAGE
Step 13. Click on the Two-Byte Integer pull down list. Click
on “MSB...LSB”.
Step 14. Click on the Four-Byte Integer pull down list.
Step 15. Click on “MSB....LSB”.
Step 16. Click on the “Four-Byte Float” pull down menu.
Step 17. Click on “IEEE: MSB...LSB”.
Step 18. Click on the Translations Tab. The Translations
page appears. (See Fig. 195) There should be noth-
ing in the text area. The two check boxes should be
checked.
FIG. 195: PROTOCOLS DEFINITION
Step 19. Click on the OK button to select the Protocol Defi-
nition parameters. The Protocol Settings with the
new protocol definition appears. (See Fig. 196)
FIG. 196: PROTOCOL SETTINGS WITH NEW
PROTOCOL DEFINITIONS
Step 20. Click on the Topics Icon. (See Fig. 197) The Topics
page appears. (See Fig. 198)
Topics Configuration
FIG. 197: SELECTING TOPICS ICON
FIG. 198: TOPICS PAGE/SELECTING A NEW TOPIC
Step 1. Click on the File pull down menu.
Step 2. Click on New.
Step 3. Move the cursor to the right until the fly out menu
appears.
