5
Motor control (MCTRL)
5.4
V/f characteristic control (VFCplus)
80
Lenze · 8400 BaseLine C · Reference manual · DMS 1.6 EN · 01/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.4.2
Basic settings
The "Initial commissioning steps" listed in the table below are sufficient for a simple characteristic
control.
• Detailed information on the individual steps can be found in the following subchapters.
Tip!
Information on the optimisation of the control mode and the adaptation to the real appli-
cation is provided in the "
" chapter.
Parameterisable additional functions are described correspondingly in the
"
Parameterisable additional functions
5.4.2.1
Defining the V/f characteristic shape
Generally, two different characteristic shapes can be defined:
1. Linear V/f characteristic:
For drives for a constant, speed-independent load torque.
2. Quadratic V/f characteristic:
For drives with a load torque curve which is quadratic or in relation to speed. Quadratic V/f cha-
racteristics are preferred in the case of centrifugal pumps and fan drives.

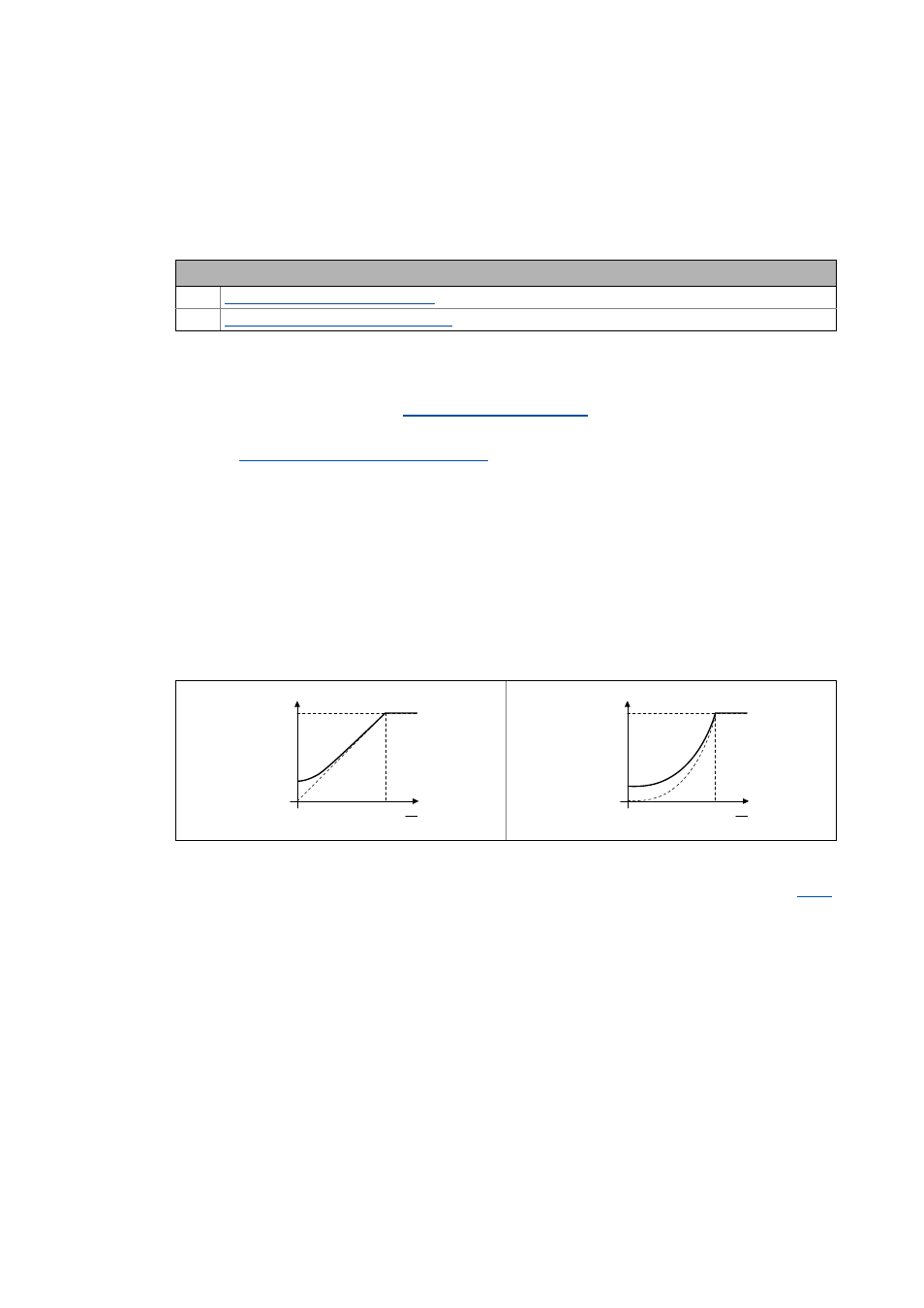

[5-2]
Principle of a linear and quadratic V/f characteristic
The V/f characteristic shape is defined by selecting the corresponding motor control mode in
• "6: VFCplus: V/f linear" for linear characteristic
• "8: VFCplus: V/f quadr" for square-law characteristic
Initial commissioning steps
1.
Defining the V/f characteristic shape
2.
Defining current limits (Imax controller)
0
1
0
100 %
N
n
n
U
min
U
out
0
1
0
100 %
N
n
n
U
min
U
out
