4 Device control (DCTRL)
4.3 "Inhibit at power-on" auto-start option
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

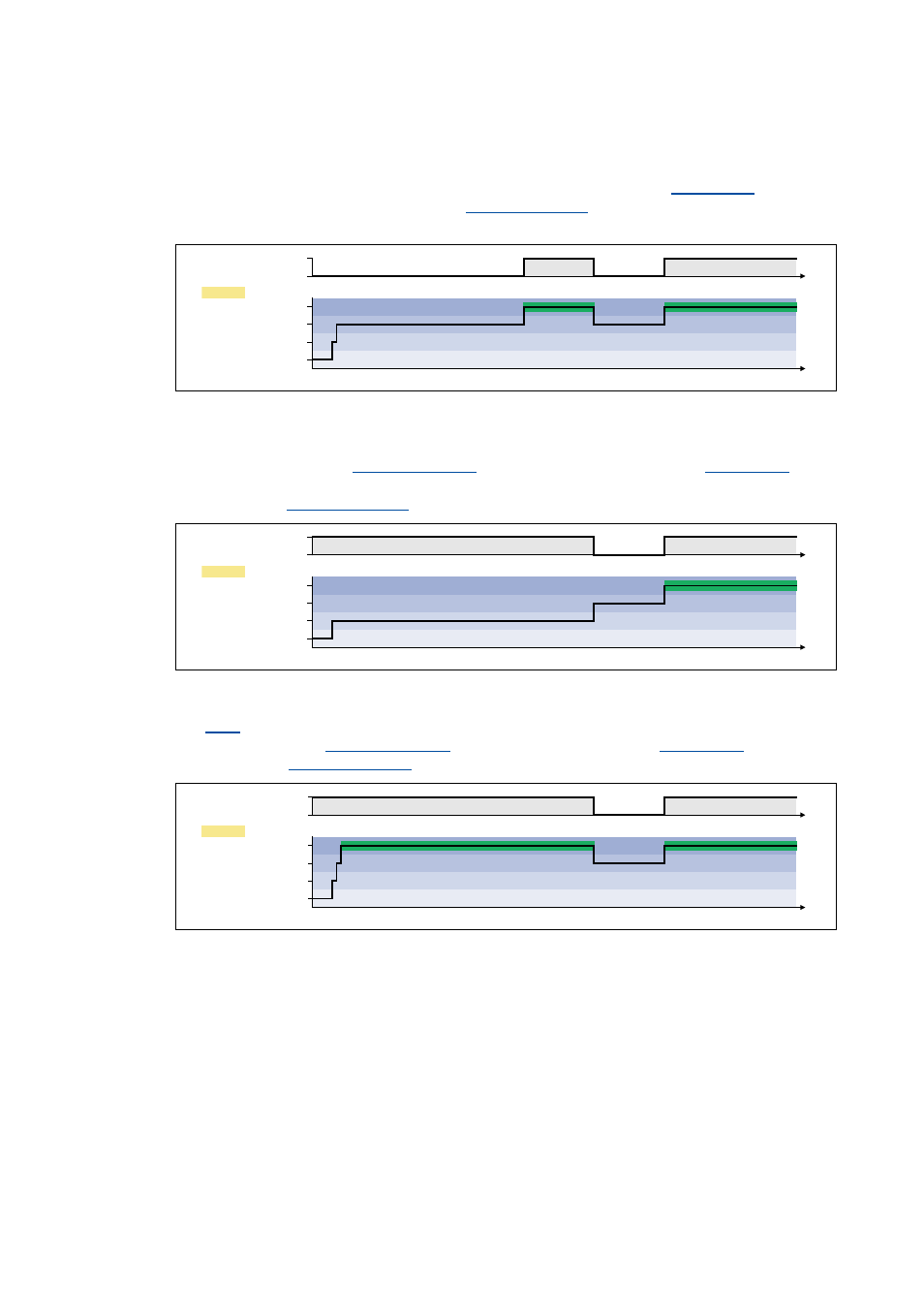

Case 1: No controller enable at power-on
If there is no controller enable at power-on, the controller remains in the "
SwitchedON " state. Only
with controller enable it is changed to the " OperationEnabled " state, independent of the setting of
the auto-start option:
Case 2: Controller enable at power-on and "Inhibit at power-on" activated
If the controller is enabled at power-on and the auto-start option "Inhibit at power-on" is active, the
controller remains in the " ReadyToSwitchON " state. In order to change to the " SwitchedON " state,
the controller enable must first be deactivated. When the controller enable is then activated, it is
changed to the " OperationEnabled " state:
Case 3: Controller enable at power-on and "Inhibit at power-on" deactivated
If in
C142 the auto-start option "option "Inhibit at power-on" is deactivated (bit 0 = 0) and the con-
troller is enabled, the " ReadyToSwitchON " state switches directly to the " SwitchedON " state and af-
terwards to the " OperationEnabled " state:
