9 System bus "CAN on board"
9.6 Process data transfer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
9.6 Process data transfer

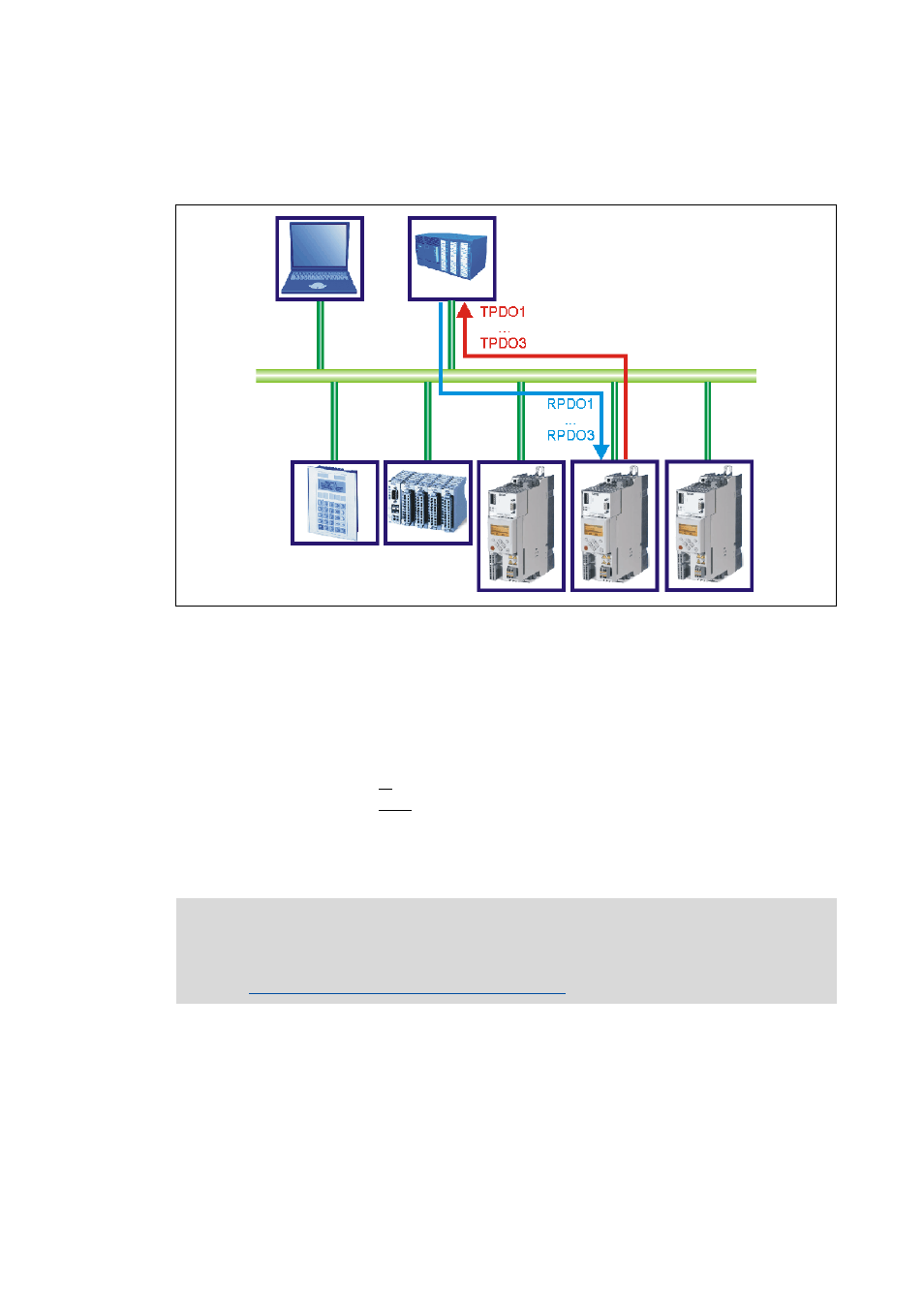

[9-5] PDO data transfer from / to the higher-level host system
"BaseLine C" versions have two separate process channels (PDO1 and PDO2) and from the "StateLi-
ne" version three separate process data channels (PDO1 ... PDO3) for process data transfer.
Definitions
• Process data telegrams between the host system and the devices are distinguished in terms of
direction as follows:
• Process data telegrams to the device (RPDO)
• Process data telegrams from the device (TPDO)
• The CANopen process data objects are designated as seen from the node's view:
• Receive PDOs (RPDOx): Process data object received by a node
• Transmit PDOs (TPDOx): Process data object sent by a node

Note!
Data can only be exchanged via process data objects if the status is "Operational"!
 Communication phases/network management ( 179)
