9.2 LED status displays for the system bus
• CAN-Run (green):
Signals the CANopen status
• CAN-Error (red):
Signals a CANopen error

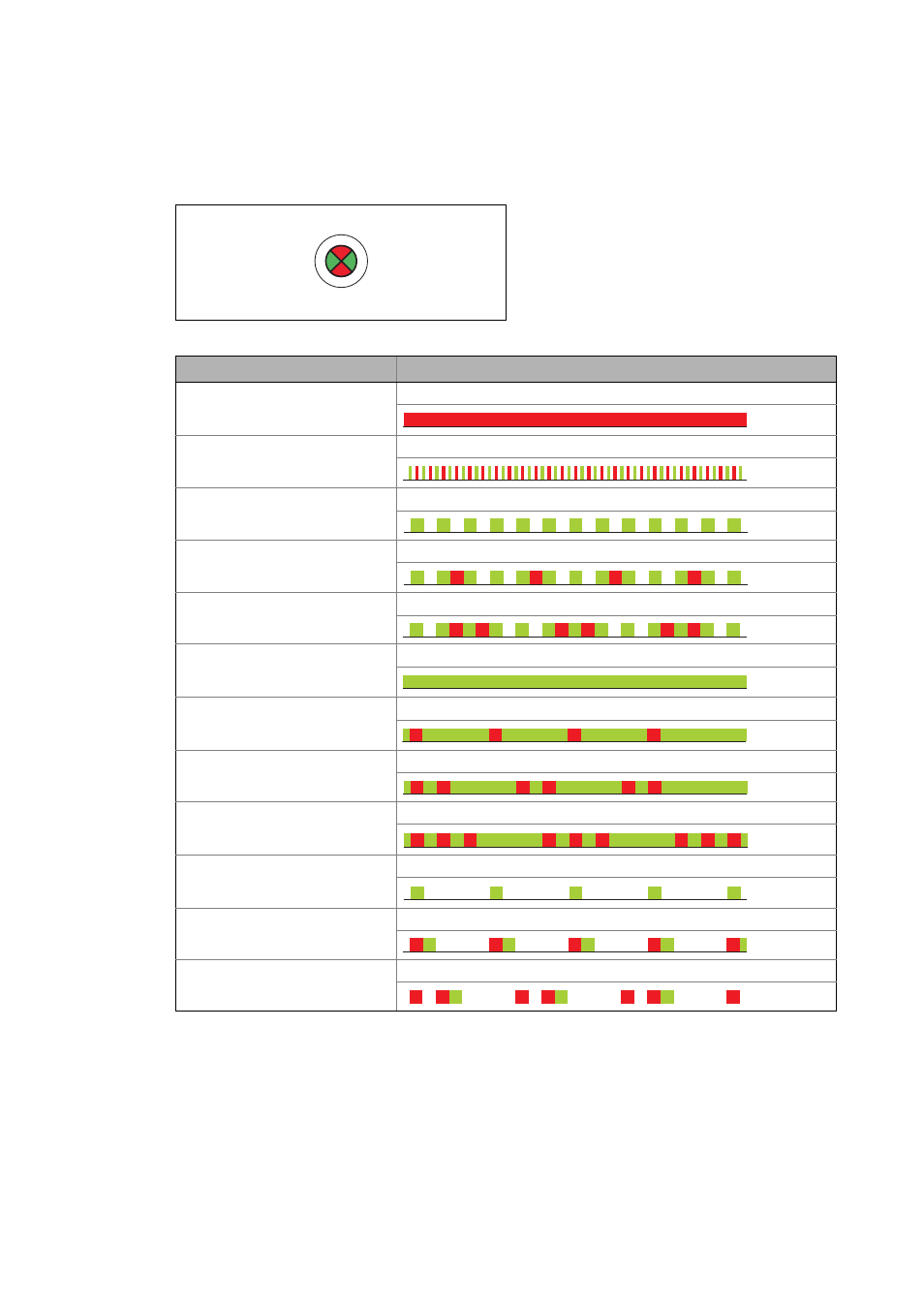

Frequency of the display CAN signalling and meaning
Permanently red CAN-Run: -, CAN-Error: Bus Off
Flashes Automatic detection of baud rate is active
Green is blinking every 0.2 s CAN-Run: Pre-Operational, CAN-Error: -
Green is blinking every 0.2 s
Red is blinking 1 time, 1 s off
CAN-Run: Pre-Operational, CAN-Error: Warning Limit reached
Green is blinking every 0.2 s
Red is blinking 2 times, 1 s off
CAN-Run: Pre-Operational, CAN-Error: Node Guard Event
Permanently green CAN-Run: Operational, CAN-Error: -
Permanently green
Red is blinking 1 time, 1 s off
CAN-Run: Operational, Fault: Warning Limit reached
Permanently green
Red is blinking 2 times, 1 s off
CAN-Run: Operational, CAN-Error: Node Guard Event
Permanently green
Red is blinking 3 times, 1 s off
CAN-Run: Operational, CAN-Error: Sync Message Error
Green is blinking every second CAN-Run: Stopped, CAN-Error: -
Green is blinking every second
Red is blinking 1 time, 1 s off
CAN-Run: Stopped, CAN-Error: Warning Limit reached
Green is blinking every second
Red is blinking 2 times, 1 s off
CAN-Run: Stopped, CAN-Error: Node Guard Event
CAN
Status
