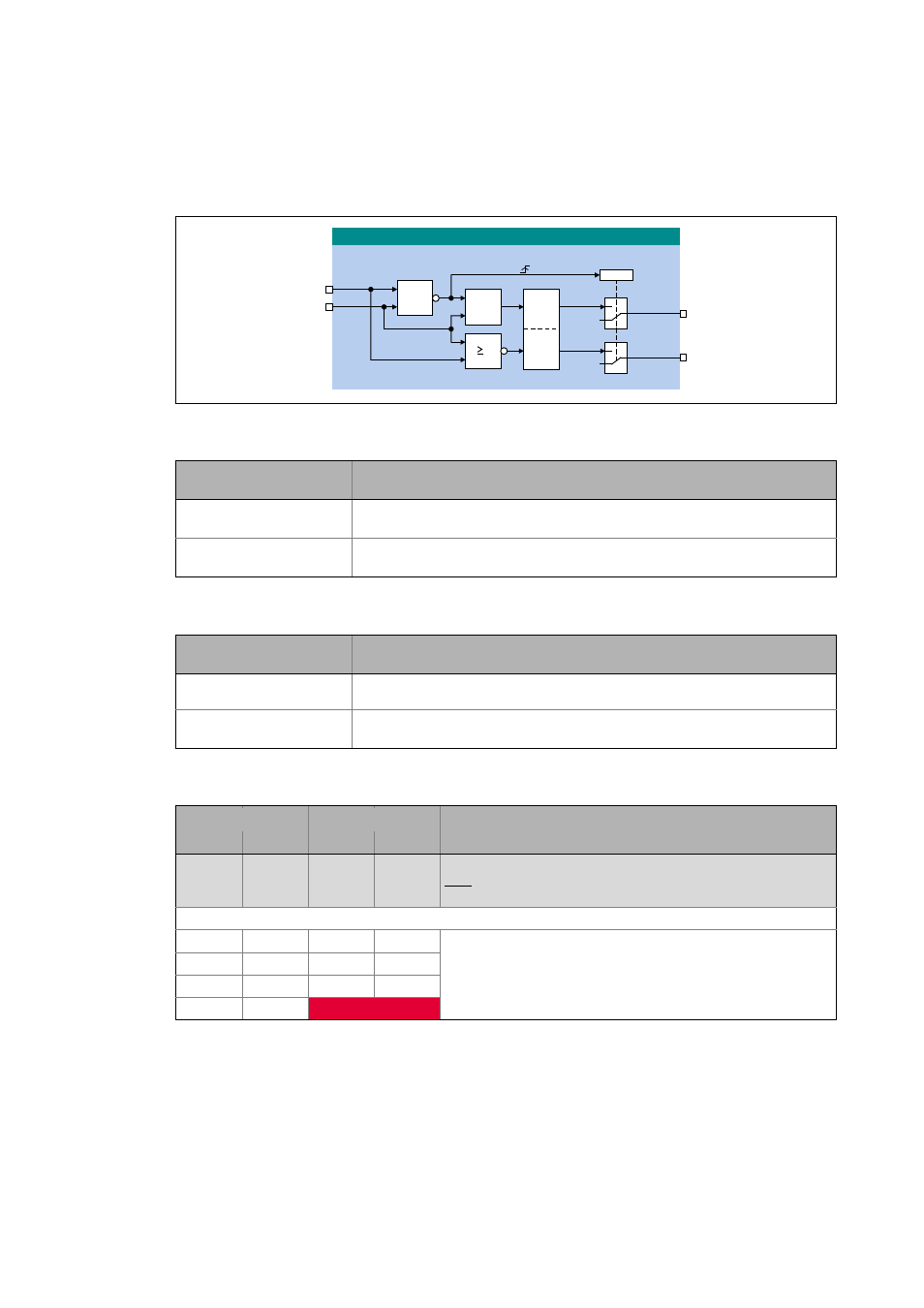

11.4 L_RLQ_1
This FB links a selected direction of rotation to the quick stop function with wire-break protection.
Inputs
Outputs
Function
[11-5] Truth table of the FB L_RLQ, 0 = FALSE, 1 = TRUE
Identifier
Data type
Information/possible settings
bCw
BOOL
Input
• TRUE = CW rotation
bCCw
BOOL
Input
• TRUE = CCW rotation
Identifier
Data type
Value/meaning
bQSP
BOOL
Output signal for quick stop (QSP)
bCwCcw
BOOL
Output signal for CW/CCW rotation
• TRUE = CCW rotation
Inputs Outputs Notes
bCw bCCw bCwCcw bQSP
TRUE TRUE FALSE TRUE The inputs have this state only if a TRUE signal is being applied to
both inputs at the moment of switch-on!
See also FB illustration above, "Init" = 1.
If one of the inputs has the TRUE state, the following truth table applies:
FALSE FALSE FALSE TRUE See also FB illustration above, "Init" = 0.
TRUE FALSE FALSE FALSE
FALSE TRUE TRUE FALSE
TRUE TRUE X (save)
