4×analog input / output
The modular system
4.20
L
4.20−1
EDSPM−TXXX−9.0−11/2009
4.20
4×analog input / output
The module 4×analog input / output has two analog inputs and two analog outputs
which can be parameterised individually. The analog inputs and outputs are
isolated from the backplane bus and the voltage supply.
)
Note!
The chapter "Parameter setting" describes how to parameterise
the module.
l
2 analog inputs
l
2 analog outputs
l
DC 24 V supply voltage
l
The inputs and outputs can be parameterised individually
l
Input ranges: Voltage, current
l
Output ranges: Voltage, current
l
LED diagnostics displays a wire breakage in the current measuring range
0
1
2

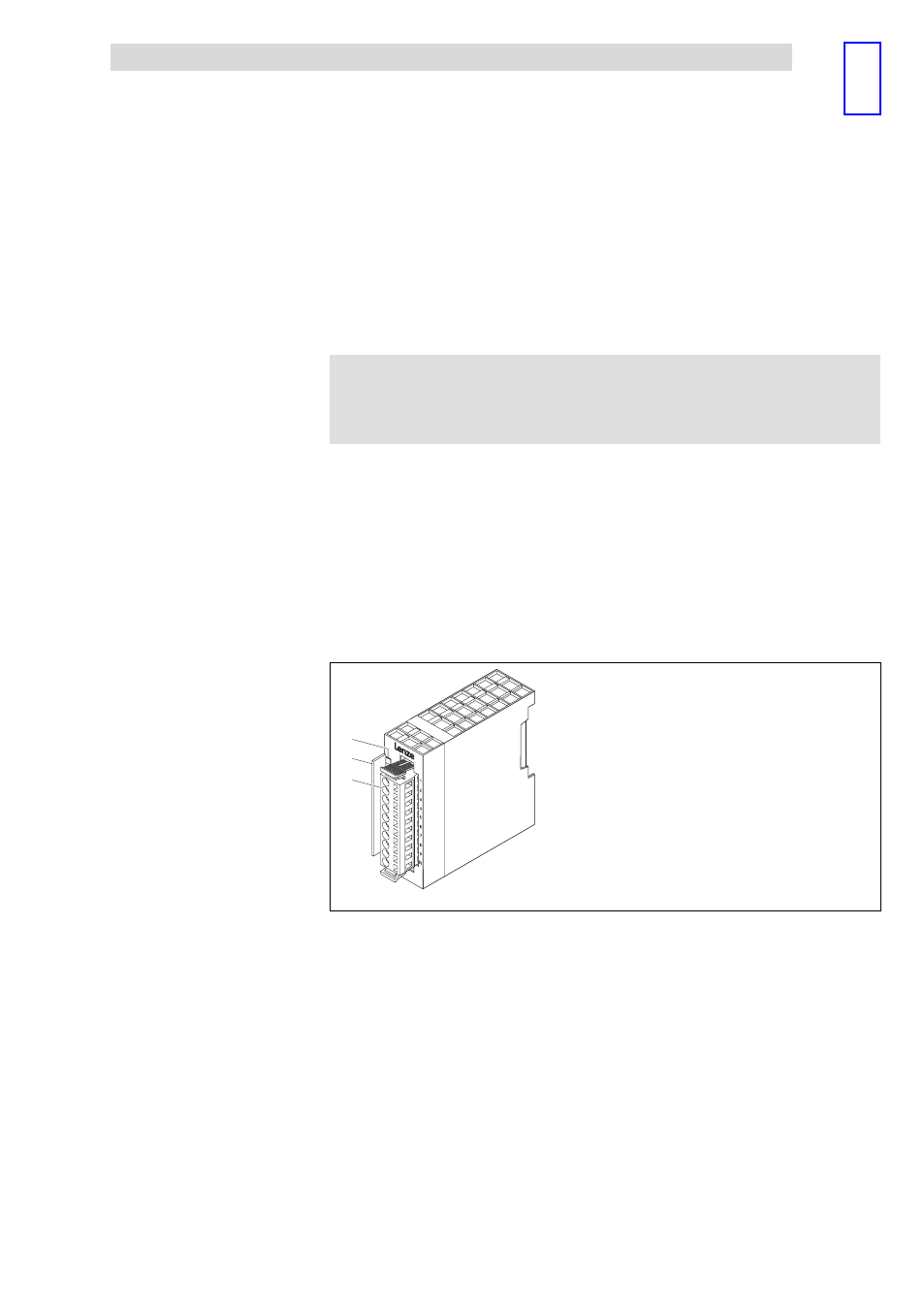

epm−t015
Fig. 4.20−1
Overview of 4×analog input / output
0
LED for status display
1
Bit address label card
2
Plug−in terminal strip
Description
Features
Overview
